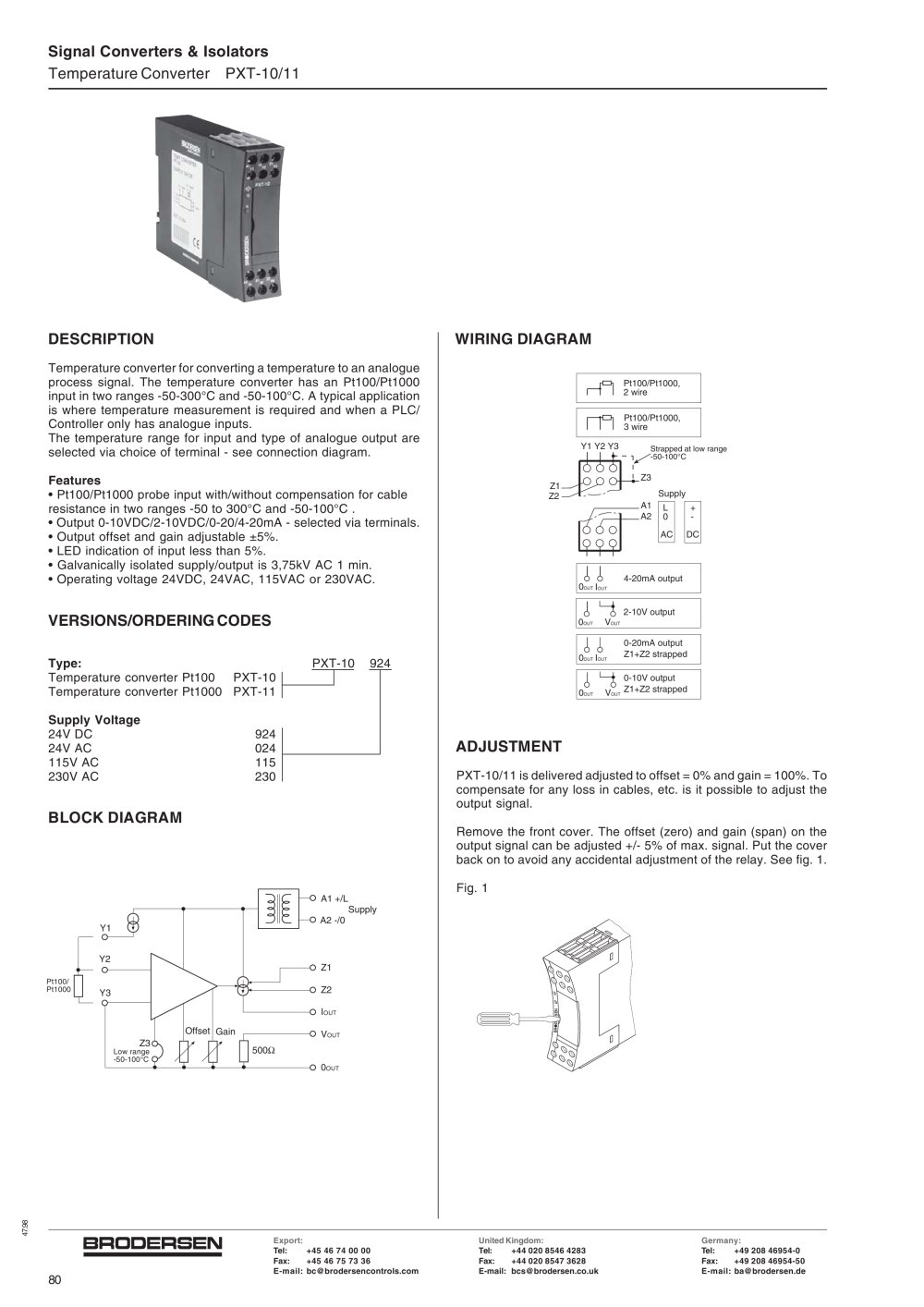

| DESCRIPTION Temperature converter for converting a temperature to an analogue process signal. The temperature converter has an Pt100/Pt1000 input in two ranges -50-300°C and -50-100°C. A typical application is where temperature measurement is required and when a PLC/ Controller only has analogue inputs. The temperature range for input and type of analogue output are selected via choice of terminal - see connection diagram. Features • Pt100/Pt1000 probe input with/without compensation for cable resistance in two ranges -50 to 300°C and -50-100°C . • Output 0-10VDC/2-10VDC/0-20/4-20mA - selected via terminals. • Output offset and gain adjustable ±5%. • LED indication of input less than 5%. • Galvanically isolated supply/output is 3,75kV AC 1 min. • Operating voltage 24VDC, 24VAC, 115VAC or 230VAC. |
