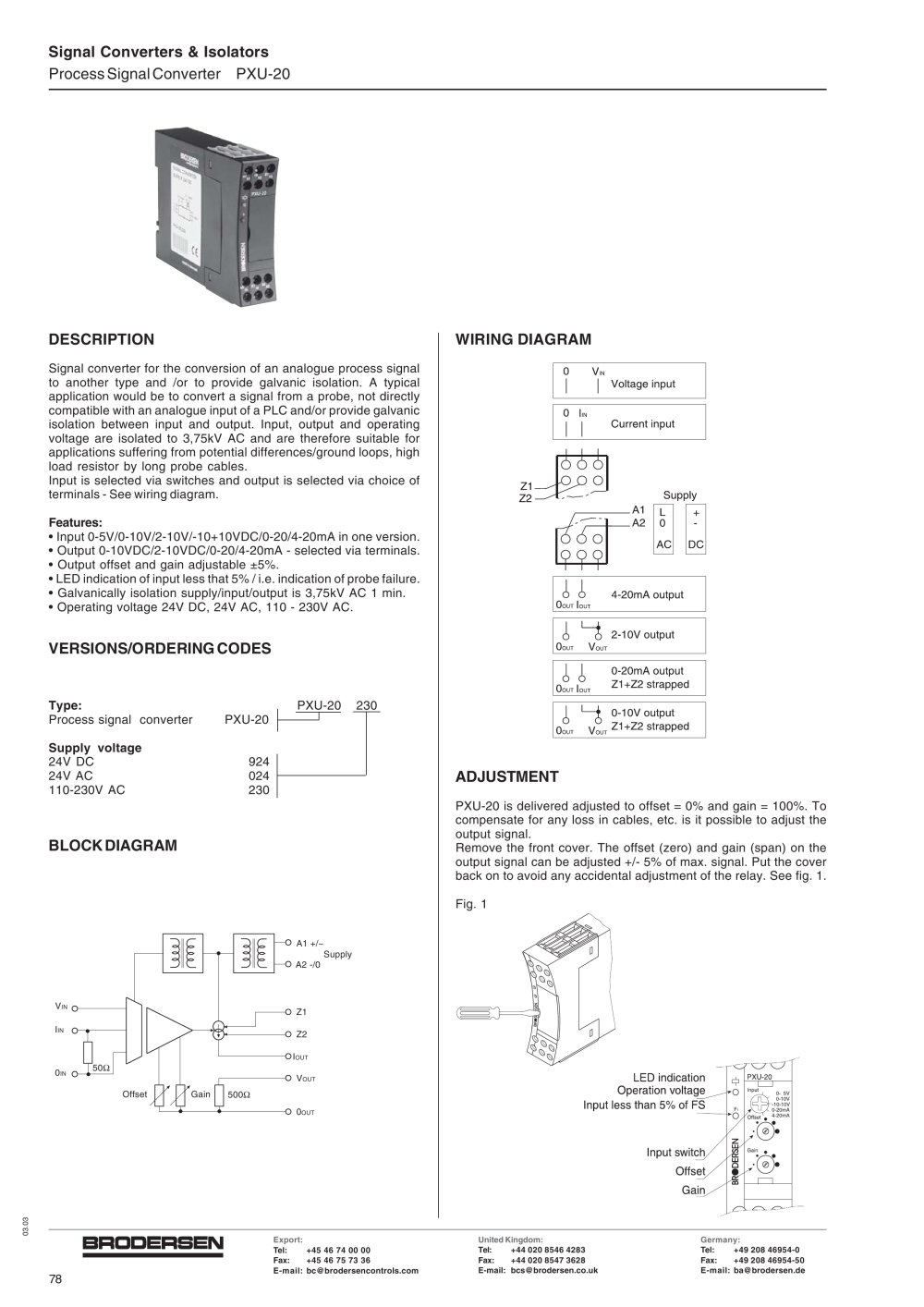

Brodersen Controls - 150102, 2887, 14672, 2137
/ 19
See other catalogues for Brodersen Controls
Text version of the page
Signal converters & Isolators
Process Signal Industrial converter PXU-20
DESCRIPTION
Signal converter for the conversion of an analogue process signal to another type and /or to provide galvanic isolation. A typical application would be to convert a signal from a probe, not directly compatible with an analogue input of a PLC and/or provide galvanic isolation between input and output. Input, output and operating voltage are isolated to 3,75kV AC and are therefore suitable for applications suffering from potential differences/ground loops, high load resistor by long probe cables.
Input is selected via switches and output is selected via choice of terminals - See wiring diagram.
Features:
• Input 0-5V/0-10V/2-10V/-10+10VDC/0-20/4-20mA in one version.
• Output 0-10VDC/2-10VDC/0-20/4-20mA - selected via terminals.
• Output offset and gain adjustable ±5%.
• LED indication of input less that 5% / i.e. indication of probe failure.
• Galvanically isolation supply/input/output is 3,75kV AC 1 min.
• Operating voltage 24V DC, 24V AC, 110 - 230V AC.
WIRING DIAGRAM
0 Vii,
Voltage input
0 In,
Current input
Z1 Z2
Supply
L
+
0
-
AC
DC
QOQ
aa
Oout I OUT
4-20mA output
2-10V output
Oout Vout
VERSIONS/ORDERING CODES
^ ^ 0-20mA output
Z1+Z2 strapped
Ooi^" lo
Type:
Process signal converter Supply voltage
24V DC 24V AC
110-230V AC
PXU-20 230
I L-i 0-10V output
Oout Vour 21+Z2 tapped
PXU-20
924 024 230
ADJUSTMENT
PXU-20 is delivered adjusted to offset = 0% and gain = 100%. To compensate for any loss in cables, etc. is it possible to adjust the output signal.
Remove the front cover. The offset (zero) and gain (span) on the output signal can be adjusted +/- 5% of max. signal. Put the cover back on to avoid any accidental adjustment of the relay. See fig. 1.
BLOCK DIAGRAM
Fig. 1
h-O A1 +/~
Supply
A2 -/0
Vin
O Z1 O Z2
OIout
Iin a
0in
LED indication ^ Operation voltage^, -o
Input less than 5% of FS F
-o
O 0out
Input switch Offset Gain
O
m o
