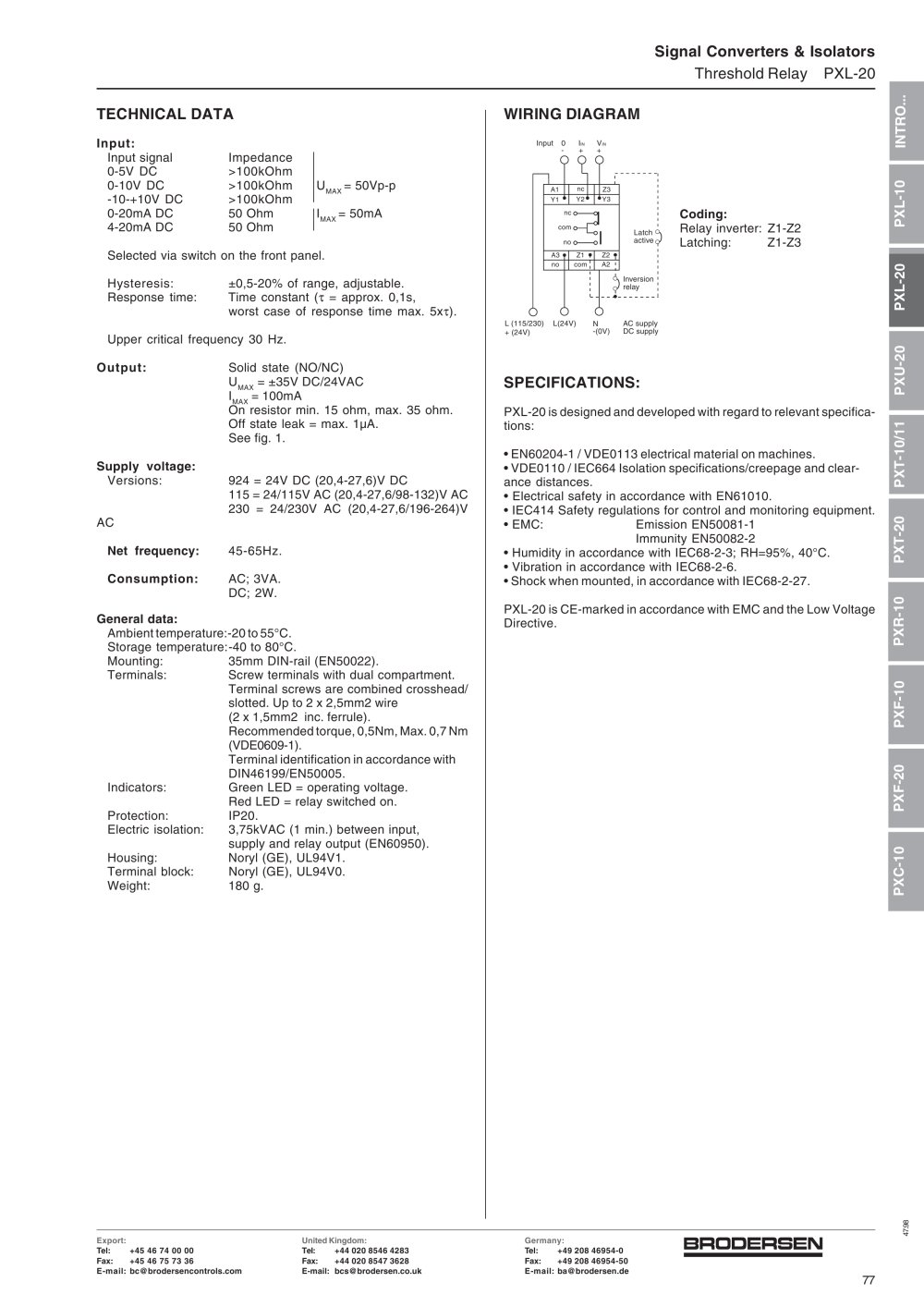

Signal converters & Isolators Threshold RelayPXL-20 TECHNICAL DATA WIRING DIAGRAM

Input:
Input 0 I IN V IN - + + INTRO...PXT-10/11 Input signalImpedance0-5V DC>100kOhm0-10V DC>100kOhmU
MAX = 50Vp-p-10-+10V DC>100kOhm0-20mA DC50 OhmI
A1Y1Y2Z1 Relay inverter:Z1-Z2 Latching:Z1-Z3
ncnocom MAX = 50mA4-20mA DC50 OhmSelected via switch on the front panel.Hysteresis:±0,5-20% of range, adjustable.Response time:Time constant ( Coding:
PXL-10PXU-20 Latch active A3Z3Y3Z2A2 no com nc Inversionrelay Ï„ = approx. 0,1s,worst case of response time max. 5x Ï„ ).Upper critical frequency 30 Hz.
L(24V)L(115/230)+ (24V)N-(0V) AC supply DC supply Output: Solid state (NO/NC)U
MAX = ±35V DC/24VACI

SPECIFICATIONS:

MAX = 100mAOn resistor min. 15 ohm, max. 35 ohm.Off state leak = max. 1µA.See fig. 1. PXL-20 is designed and developed with regard to relevant specifica-tions:• EN60204-1 / VDE0113 electrical material on machines.• VDE0110 / IEC664 Isolation specifications/creepage and clear-ance distances.• Electrical safety in accordance with EN61010. • IEC414 Safety regulations for control and monitoring equipment. • EMC:Emission EN50081-1Immunity EN50082-2• Humidity in accordance with IEC68-2-3; RH=95%, 40°C. • Vibration in accordance with IEC68-2-6. • Shock when mounted, in accordance with IEC68-2-27.PXL-20 is CE-marked in accordance with EMC and the Low VoltageDirective. Supply voltage: Versions:924 = 24V DC (20,4-27,6)V DC115 = 24/115V AC (20,4-27,6/98-132)V AC 230 = 24/230V AC (20,4-27,6/196-264)VAC Net frequency: 45-65Hz. Consumption: AC; 3VA.DC; 2W.
PXT-20 General data: Ambient temperature:-20 to 55°C.Storage temperature:-40 to 80°C.Mounting:35mm DIN-rail (EN50022).Terminals:Screw terminals with dual compartment.Terminal screws are combined crosshead/slotted. Up to 2 x 2,5mm2 wire(2 x 1,5mm2 inc. ferrule). Recommended torque, 0,5Nm, Max. 0,7 Nm (VDE0609-1). Terminal identification in accordance with DIN46199/EN50005.Indicators:Green LED = operating voltage.Red LED = relay switched on.Protection:IP20.Electric isolation:3,75kVAC (1 min.) between input,supply and relay output (EN60950).Housing:Noryl (GE), UL94V1.Terminal block:Noryl (GE), UL94V0.Weight:180 g.
PXF-10 PXF-20 PXC-10PXR-10PXL-20 47.98 Export: United Kingdom: Germany: Tel:+45 46 74 00 00Fax:+45 46 75 73 36E-mail:bc@brodersencontrols.com Tel:+44 020 8546 4283Fax:+44 020 8547 3628E-mail:bcs@brodersen.co.uk Tel:+49 208 46954-0Fax:+49 208 46954-50E-mail:ba@brodersen.de 77
