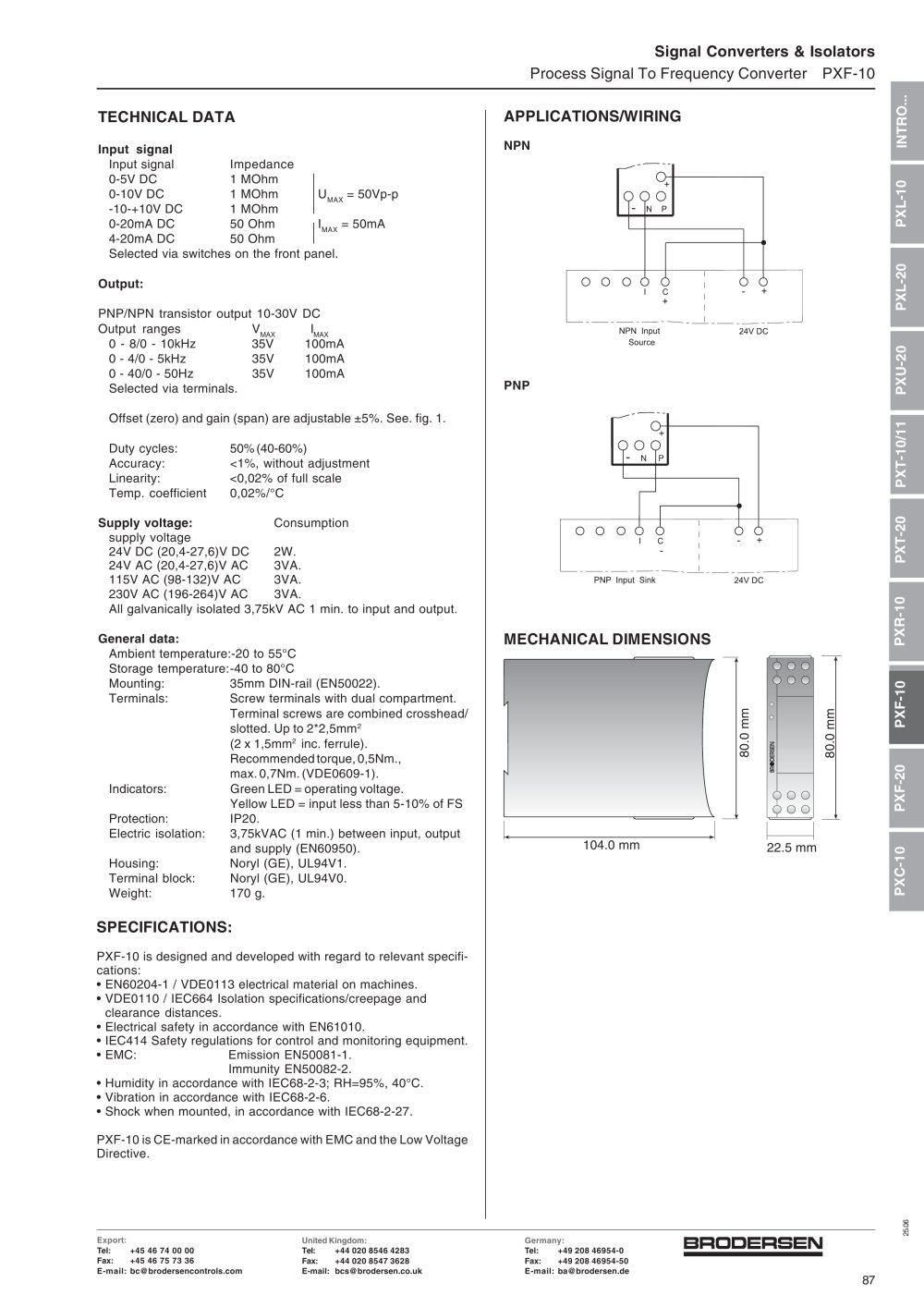

Signal converters & Isolators Process Signal To Frequency ConverterPXF-10 TECHNICAL DATA APPLICATIONS/WIRING

Input signal NPN PNP
INTRO...PXT-10/11 Input signalImpedance0-5V DC1 MOhm 0-10V DC1 MOhmU
MAX = 50Vp-p-10-+10V DC1 MOhm 0-20mA DC50 OhmI
MAX = 50mA4-20mA DC50 Ohm Selected via switches on the front panel.
PXL-10PXL-20PXU-20 Output: PNP/NPN transistor output 10-30V DCOutput rangesV
MAX I
MAX 0 - 8/0 - 10kHz35V100mA0 - 4/0 - 5kHz35V100mA 0 - 40/0 - 50Hz35V100mA Selected via terminals.Offset (zero) and gain (span) are adjustable ±5%. See. fig. 1.Duty cycles:50% (40-60%)Accuracy:<1%, without adjustmentLinearity:<0,02% of full scale Temp. coefficient0,02%/°C Supply voltage: Consumptionsupply voltage24V DC (20,4-27,6)V DC2W.24V AC (20,4-27,6)V AC3VA.115V AC (98-132)V AC3VA.230V AC (196-264)V AC3VA.All galvanically isolated 3,75kV AC 1 min. to input and output. General data: Ambient temperature:-20 to 55°C Storage temperature:-40 to 80°C Mounting:35mm DIN-rail (EN50022). Terminals:Screw terminals with dual compartment.Terminal screws are combined crosshead/slotted. Up to 2*2,5mm
PXT-20

MECHANICAL DIMENSIONS

2 PXF-10 (2 x 1,5mm
2 inc. ferrule).Recommended torque, 0,5Nm., max. 0,7Nm. (VDE0609-1).Indicators:Green LED = operating voltage.Yellow LED = input less than 5-10% of FSProtection:IP20.Electric isolation:3,75kVAC (1 min.) between input, outputand supply (EN60950).Housing:Noryl (GE), UL94V1. Terminal block:Noryl (GE), UL94V0. Weight:170 g.
80.0 mm 80.0 mm PXF-20

104.0 mm 22.5 mm

PXC-10PXR-10

SPECIFICATIONS:

PXF-10 is designed and developed with regard to relevant specifi-cations:•EN60204-1 / VDE0113 electrical material on machines. •VDE0110 / IEC664 Isolation specifications/creepage andclearance distances.•Electrical safety in accordance with EN61010.•IEC414 Safety regulations for control and monitoring equipment.•EMC:Emission EN50081-1.Immunity EN50082-2.•Humidity in accordance with IEC68-2-3; RH=95%, 40°C. •Vibration in accordance with IEC68-2-6. •Shock when mounted, in accordance with IEC68-2-27.PXF-10 is CE-marked in accordance with EMC and the Low VoltageDirective.
25.06 Export: United Kingdom: Germany: Tel:+45 46 74 00 00Fax:+45 46 75 73 36E-mail:bc@brodersencontrols.com Tel:+44 020 8546 4283Fax:+44 020 8547 3628E-mail:bcs@brodersen.co.uk Tel:+49 208 46954-0Fax:+49 208 46954-50E-mail:ba@brodersen.de 87
