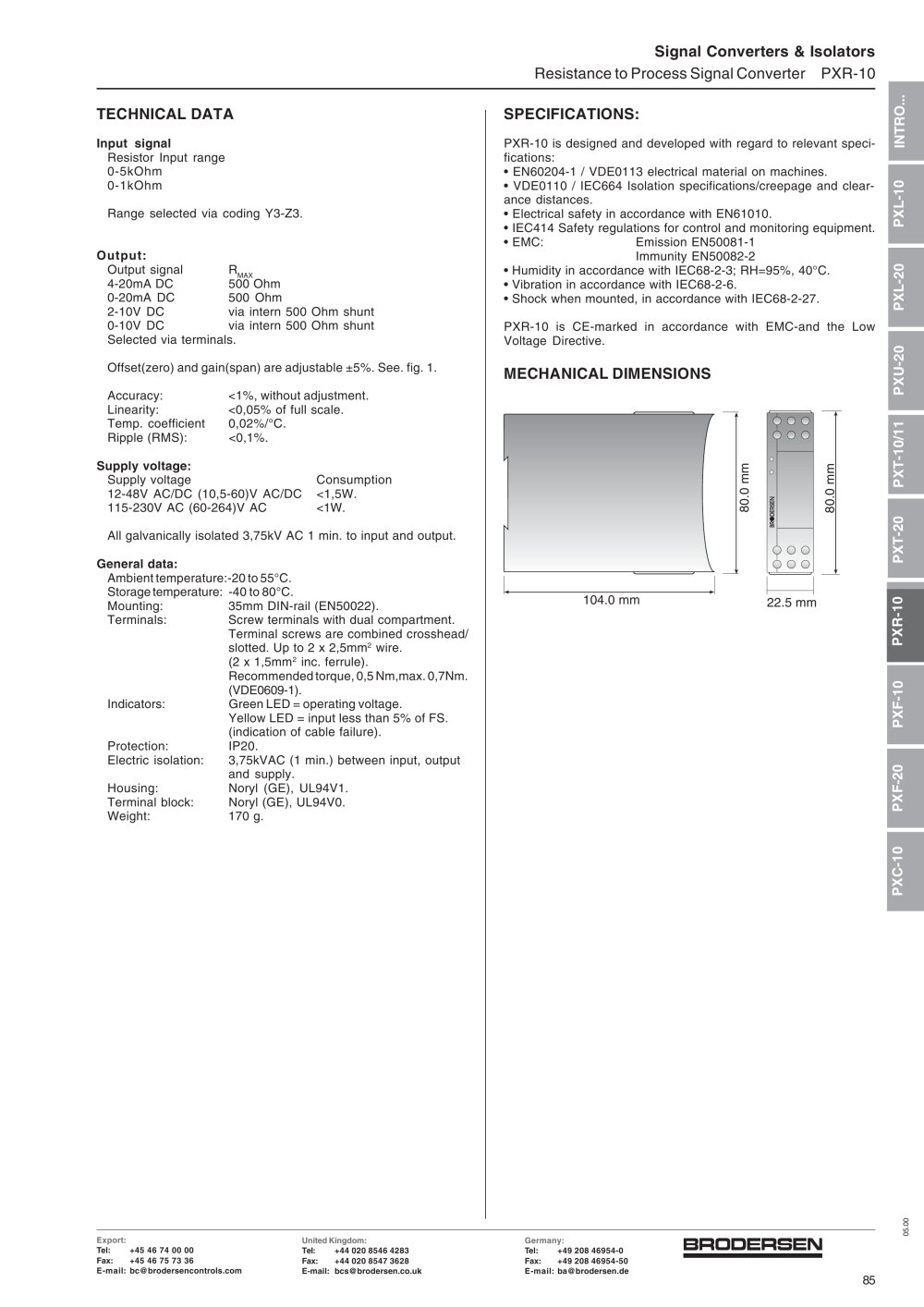

| | | Resistance to Process Signal Converter PXR-10 | | |
| | | |
| | | TECHNICAL DATA Input signal Resistor Input range 0-5kOhm 0-1kOhm Range selected via coding Y3-Z3. | | SPECIFICATIONS: PXR-10 is designed and developed with regard to relevant specifications: • EN60204-1 / VDE0113 electrical material on machines. • VDE0110 / IEC664 Isolation specifications/creepage and clearance distances. • Electrical safety in accordance with EN61010. • IEC414 Safety regulations for control and monitoring equipment. • EMC: Emission EN50081-1 Immunity EN50082-2 • Humidity in accordance with IEC68-2-3; RH=95%, 40°C. • Vibration in accordance with IEC68-2-6. • Shock when mounted, in accordance with IEC68-2-27. PXR-10 is CE-marked in accordance with EMC-and the Low Voltage Directive. MECHANICAL DIMENSIONS | | |
| | | ■ X Q. | | |
| | | |
| | | |
| | | Output: Output signal 4-20mA DC 0-20mA DC 2-10V DC 0-10V DC | | |
| | | R RMAX 500 Ohm 500 Ohm via intern 500 Ohm shunt via intern 500 Ohm shunt | | | O CM I _l X Q. | | |
| | | |
| | | |
| | | Selected via terminals. | | |
| | | |
| | | O CM I X Q. | | |
| | | Offset(zero) and gain(span) are adjustable ±5%. See. fig. 1. | | |
| | | |
| | | |
| | | <1%, without adjustment. <0,05% of full scale. 0,02%/°C. <0,1%. | | |
| | | Accuracy: Linearity: Temp. coefficient Ripple (RMS): | | |
| | | |
| | | | | | | | | | c | 3 o o | | | | 7 | | | | | o | | | | | o | | | | | | | | | | B m S | | | | | C | . e e | | | | c | 'J o o | | | | | | | | | |
| | | O I h-X a. | | |
| | | |
| | | |
| | | Supply voltage: Supply voltage Consumption 12-48V AC/DC (10,5-60)V AC/DC <1,5W. 115-230V AC (60-264)V AC <1W. All galvanically isolated 3,75kV AC 1 min. to input and output. General data: Ambient temperature:-20 to 55°C. Storage temperature: -40 to 80°C. | | |
| | | E E o ci OD | | |
| | | |
| | | o ci oo | | |
| | | |
| | | |
| | | o CM I IX a. | | |
| | | |
| | | |
| | | 104.0 mm | | |
| | | o ■ oc X a. | | |
| | | 22.5 mm | | |
| | | |
| | | Mounting: Terminals: | | 35mm DIN-rail (EN50022). Screw terminals with dual compartment. Terminal screws are combined crosshead/ slotted. Up to 2 x 2,5mm2 wire. (2 x 1,5mm2 inc. ferrule). Recommended torque, 0,5 Nm,max. 0,7Nm. (VDE0609-1). Green LED = operating voltage. Yellow LED = input less than 5% of FS. (indication of cable failure). IP20. 3,75kVAC (1 min.) between input, output and supply. Noryl (GE), UL94V1. Noryl (GE), UL94V0. 170 g. | | |
| | | |
| | | |
| | | |
| | | |
| | | Indicators: | | |
| | | |
| | | Protection: Electric isolation: Housing: Terminal block: Weight: | | |
| | | o CM ■ LL X a. | | |
| | | |
| | | |
| | | o I O X a. | | |
| | | |
| | | 3 q | | |
| | | |
| | | Export: Tel: +45 46 74 00 00 Fax: +45 46 75 73 36 E-mail: bc@brodersencontrols.com | | |
| | | United Kingdom: Tel: +44 020 8546 4283 Fax: +44 020 8547 3628 E-mail: bcs@brodersen.co.uk | | Germany: Tel: +49 208 46954-0 Fax: +49 208 46954-50 E-mail: ba@brodersen.de | | |
