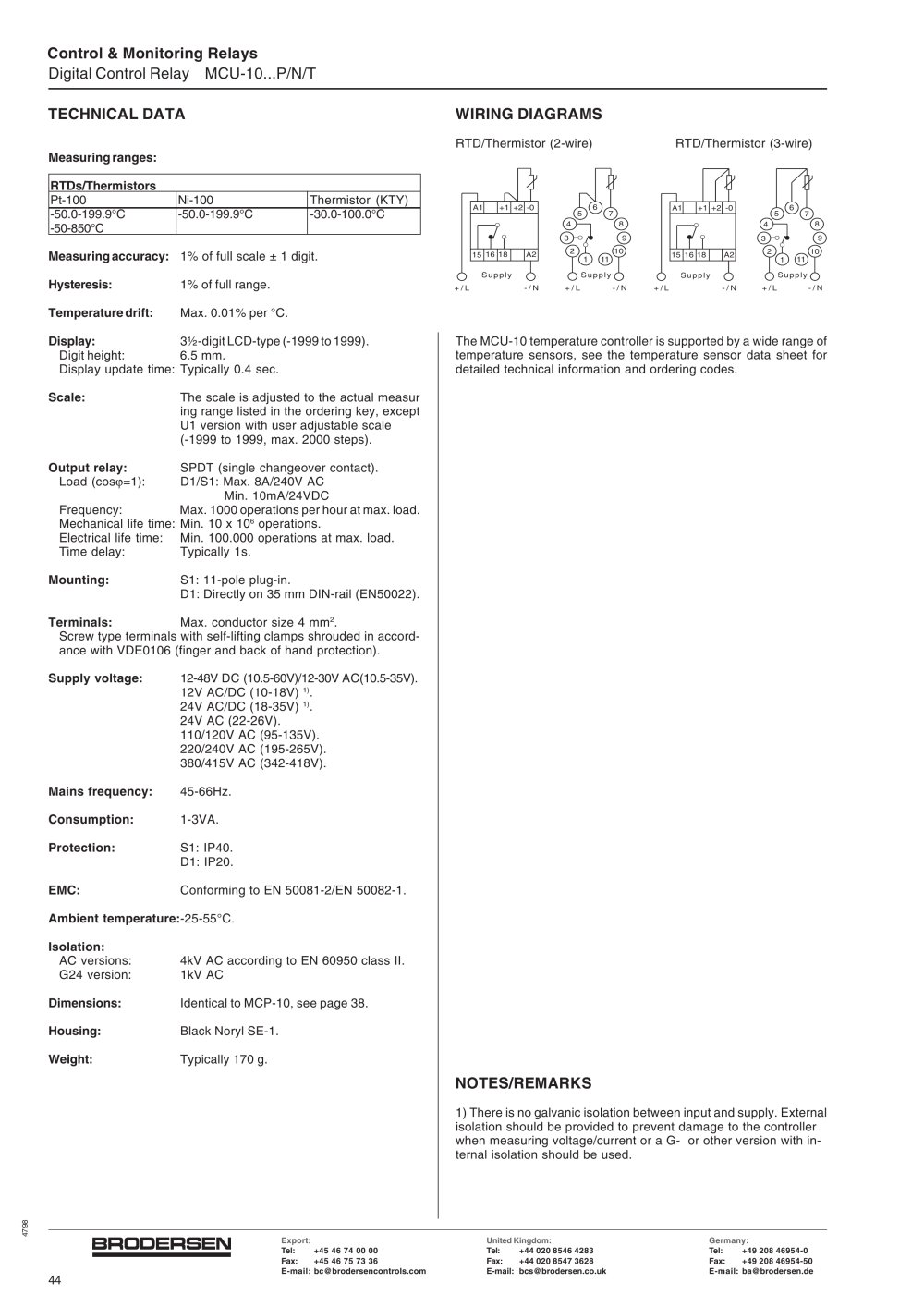

Brodersen Controls - 2975, 2089, 150102, 4627, 140597

/ 33

See other catalogues for Brodersen Controls

Text version of the page

Control & Monitoring relays

Digital control Relay MCU-10...P/N/T

TECHNICAL DATA

WIRING DIAGRAMS

RTD/Thermistor (2-wire)

RTD/Thermistor (3-wire)

Measuring ranges:


RTDs/Thermistors
Pt-100	Ni-100	Thermistor (KTY)
-50.0-199.9°C -50-850°C	-50.0-199.9°C	-30.0-100.0°C

A1 +1+2-0

©—I © ©Y ©

©V ©

Measuring accuracy:

Hysteresis: Temperature drift:

Display:

Digit height:

1% of full scale ± 1 digit.

1% of full range.

Max. 0.01% per °C.

3%-digit LCD-type (-1999 to 1999). 6.5 mm.

15 16 18 A2

151618 A2

^^^uppily^^⁰^

Ô Supply + /L

iSuppl^O Ô Supply

-/N +/L -/N +/L

-/N +/L -/N

The MCU-10 temperature controller is supported by a wide range of temperature sensors, see the temperature sensor data sheet for detailed technical information and ordering codes.

Display update time: Typically 0.4 sec.

Scale: The scale is adjusted to the actual measur

ing range listed in the ordering key, except U1 version with user adjustable scale (-1999 to 1999, max. 2000 steps).

Output relay:

Load (coscp=1):

Frequency:

SPDT (single changeover contact). D1/S1: Max. 8A/240V AC Min. 10mA/24VDC Max. 1000 operations per hour at max. load.

Mechanical life time: Min. 10 x 10⁶ operations. Electrical life time: Min. 100.000 operations at max. load. Time delay: Typically 1s.

Mounting:

S1: 11-pole plug-in.

D1: Directly on 35 mm DIN-rail (EN50022).

Terminals: Max. conductor size 4 mm².

Screw type terminals with self-lifting clamps shrouded in accordance with VDE0106 (finger and back of hand protection).

Supply voltage:

12-48V DC (10.5-60V)/12-30V AC(10.5-35V). 12V AC/DC (10-18V) ¹⁾. 24V AC/DC (18-35V) ¹⁾.

24V AC (22-26V). 110/120V AC (95-135V). 220/240V AC (195-265V). 380/415V AC (342-418V).

45-66Hz.

1-3VA.

S1: IP40. D1: IP20.

Mains frequency:

Consumption:

Protection:

EMC:

Conforming to EN 50081-2/EN 50082-1.

Ambient temperature:-25-55°C.

Isolation:

AC versions: G24 version:

Dimensions:

Housing:

Weight:

4kV AC according to EN 60950 class II. 1kV AC

Identical to MCP-10, see page 38. Black Noryl SE-1. Typically 170 g.

NOTES/REMARKS

1) There is no galvanic isolation between input and supply. External isolation should be provided to prevent damage to the controller when measuring voltage/current or a G- or other version with internal isolation should be used.
