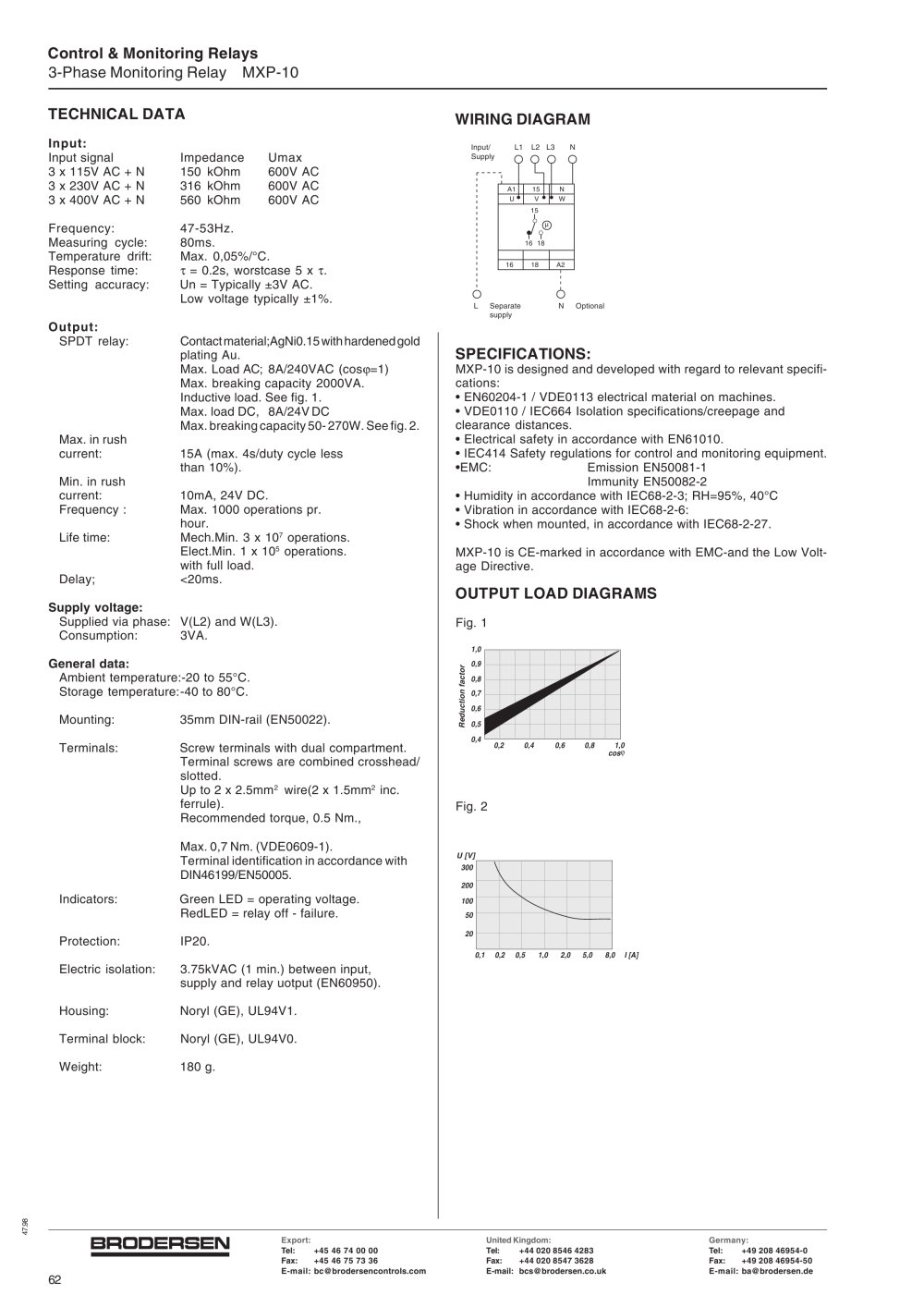

3-Phase Monitoring Relay MXP-10
TECHNICAL DATA
WIRING DIAGRAM
Input:
Input signal 3 x 115V AC + N 3 x 230V AC + N 3 x 400V AC + N
Frequency: Measuring cycle: Temperature drift: Response time: Setting accuracy:
Input/ Supply
L1 L2 L3 N
Impedance 150 kOhm 316 kOhm 560 kOhm
Umax 600V AC 600V AC
600V AC
-,
1
A1
15 1
N
U
V*
■ W
15
16 18
16
18
A2
47-53Hz. 80ms.
Max. 0,05%/°C. t = 0.2s, worstcase 5 x t. Un = Typically ±3V AC. Low voltage typically ±1%.
ó
N Optional
Ó
L Separate supply
Output:
SPDT relay:
Contact material;AgNi0.15 with hardened gold plating Au.
Max. Load AC; 8A/240VAC (coscp=1)
Max. breaking capacity 2000VA.
Inductive load. See fig. 1.
Max. load DC, 8A/24V DC
Max. breaking capacity 50- 270W. See fig. 2.
15A (max. 4s/duty cycle less
than 10%). 10mA, 24V DC.
Max. 1000 operations pr. hour.
Mech.Min. 3 x 107 operations. Elect.Min. 1 x 105 operations. with full load. <20ms.
SPECIFICATIONS:
MXP-10 is designed and developed with regard to relevant specifi­cations:
• EN60204-1 / VDE0113 electrical material on machines.
• VDE0110 / IEC664 Isolation specifications/creepage and clearance distances.
• Electrical safety in accordance with EN61010.
• IEC414 Safety regulations for control and monitoring equipment. •EMC: Emission EN50081-1
Immunity EN50082-2
• Humidity in accordance with IEC68-2-3; RH=95%, 40°C
• Vibration in accordance with IEC68-2-6:
• Shock when mounted, in accordance with IEC68-2-27.
MXP-10 is CE-marked in accordance with EMC-and the Low Volt­age Directive.
Max. in rush current:
Min. in rush current: Frequency :
Life time:
Delay;
Supply voltage:
Supplied via phase: Consumption:
OUTPUT LOAD DIAGRAMS
Fig. 1
V(L2) and W(L3). 3VA.
General data:
Ambient temperature:-20 to 55°C. Storage temperature:-40 to 80°C.
Mounting: 35mm DIN-rail (EN50022).
Terminals: Screw terminals with dual compartment.
Terminal screws are combined crosshead/ slotted.
Up to 2 x 2.5mm2 wire(2 x 1.5mm2 inc. ferrule).
Recommended torque, 0.5 Nm.,
Max. 0,7 Nm. (VDE0609-1).
Terminal identification in accordance with
DIN46199/EN50005.
Indicators: Green LED = operating voltage.
RedLED = relay off - failure.
Protection: IP20.
Electric isolation: 3.75kVAC (1 min.) between input, supply and relay uotput (EN60950).
Housing: Noryl (GE), UL94V1.
Terminal block: Noryl (GE), UL94V0. Weight: 180 g.
o
I
0,2 0,4 0,6 0,8 1,0 cos®
Fig. 2
U [V] 300
200 100 50
20
0,1 0,2 0,5 1,0 2,0 5,0 8,0 I [A]
Export:
Tel: +45 46 74 00 00 Fax: +45 46 75 73 36 E-mail: bc@brodersencontrols.com
United Kingdom: Tel: +44 020 8546 4283 Fax: +44 020 8547 3628 E-mail: bcs@brodersen.co.uk
Germany:
Tel: +49 208 46954-0 Fax: +49 208 46954-50 E-mail: ba@brodersen.de
BRODERSEN
