Control & Monitoring relays

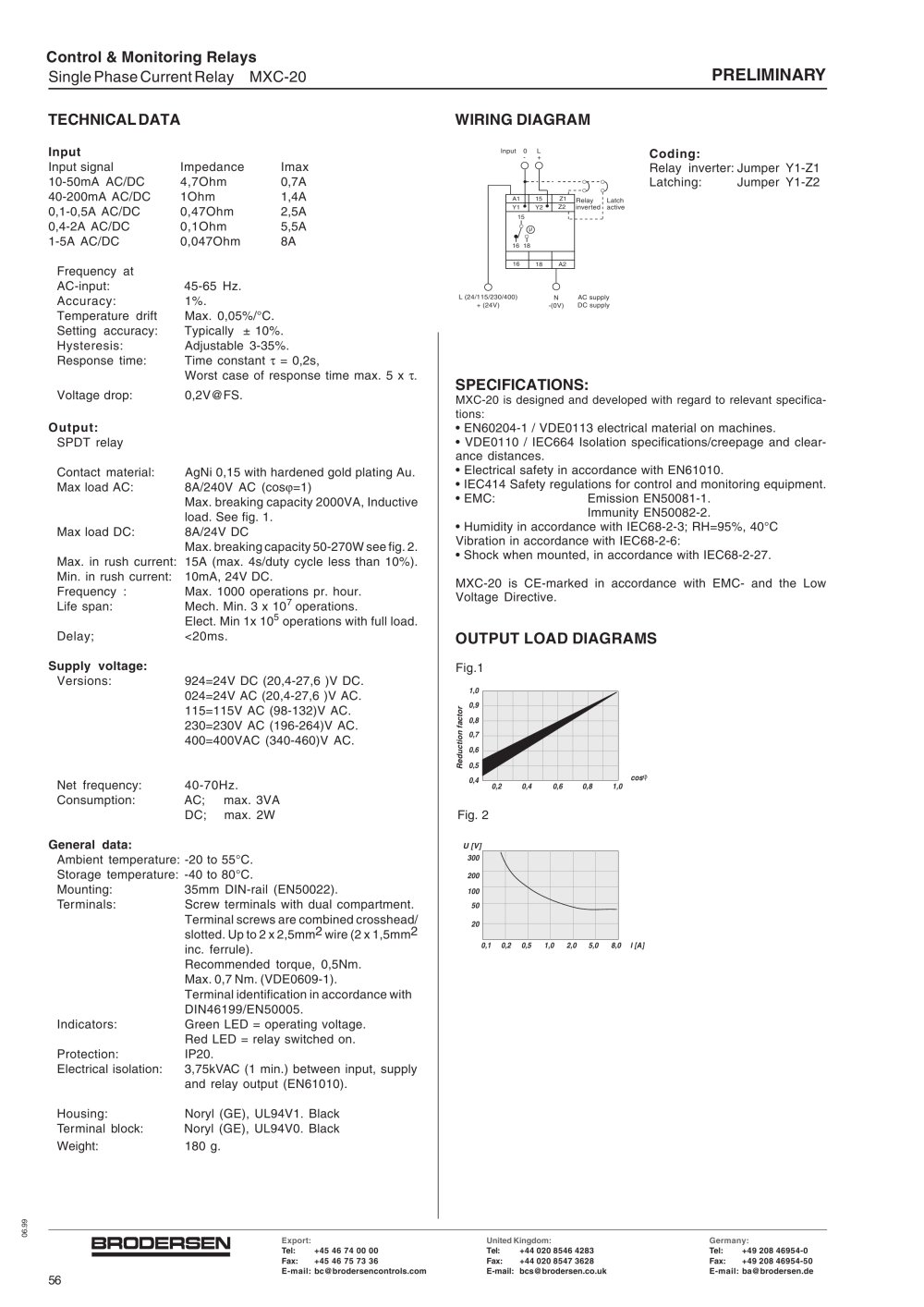

Single Phase Current Relay MXC-20

PRELIMINARY

TECHNICAL DATA

WIRING DIAGRAM

Input

Input signal 10-50mA AC/DC 40-200mA AC/DC 0,1-0,5A AC/DC 0,4-2A AC/DC

1-5A AC/DC

Frequency at AC-input: Accuracy: Temperature drift Setting accuracy: Hysteresis: Response time:

Voltage drop:

Output:

SPDT relay

Contact material: Max load AC:

Coding:

Relay inverter: Jumper Y1-Z1 Latching: Jumper Y1-Z2

Input 0 L

Impedance

4,7Ohm

1Ohm

0,47Ohm

0,1Ohm

0,047Ohm

Imax 0,7A 1,4A 2,5A 5,5A 8A

Relay , Latch inverted I active

16 18

45-65 Hz. 1%.

Max. 0,05%/°C.

Typically ± 10%.

Adjustable 3-35%.

Time constant t = 0,2s,

Worst case of response time max. 5 x t.

0,2V@FS.

L (24/115/230/400) + (24V)

-(0V)

AC supply DC supply

SPECIFICATIONS:

MXC-20 is designed and developed with regard to relevant specifications:

• EN60204-1 / VDE0113 electrical material on machines.

• VDE0110 / IEC664 Isolation specifications/creepage and clearance distances.

• Electrical safety in accordance with EN61010.

• IEC414 Safety regulations for control and monitoring equipment.

• EMC: Emission EN50081-1.

Immunity EN50082-2.

• Humidity in accordance with IEC68-2-3; RH=95%, 40°C Vibration in accordance with IEC68-2-6:

• Shock when mounted, in accordance with IEC68-2-27.

MXC-20 is CE-marked in accordance with EMC- and the Low Voltage Directive.

AgNi 0,15 with hardened gold plating Au. 8A/240V AC (coscp=1) Max. breaking capacity 2000VA, Inductive load. See fig. 1.

8A/24V DC

Max. breaking capacity 50-270W see fig. 2. 15A (max. 4s/duty cycle less than 10%).

10mA, 24V DC.

Max. 1000 operations pr. hour.

Mech. Min. 3 x 10⁷ operations.

Elect. Min 1x 10⁵ operations with full load.

<20ms.

Max load DC:

Max. in rush current: Min. in rush current: Frequency : Life span:

Delay;

Supply voltage:

Versions:

OUTPUT LOAD DIAGRAMS

Fig.1

924=24V DC (20,4-27,6 )V DC. 024=24V AC (20,4-27,6 )V AC. 115=115V AC (98-132)V AC. 230=230V AC (196-264)V AC. 400=400VAC (340-460)V AC.

1,0

0,9

0,8

0,7

0,6

0,5

cosy

0,4

Net frequency: Consumption:

40-70Hz.

AC; max. 3VA

DC; max. 2W

0,2 0,4 0,6 0,8 1,0

Fig. 2

General data:

Ambient temperature: Storage temperature: Mounting: Terminals:

U [V] 300

200 100 50

-20 to 55°C. -40 to 80°C.

35mm DIN-rail (EN50022).

Screw terminals with dual compartment. Terminal screws are combined crosshead/ slotted. Up to 2 x 2,5mm² wire (2 x 1,5mm²inc. ferrule).

Recommended torque, 0,5Nm.

Max. 0,7 Nm. (VDE0609-1).

Terminal identification in accordance with

DIN46199/EN50005.

Green LED = operating voltage.

Red LED = relay switched on.

IP20.

3,75kVAC (1 min.) between input, supply and relay output (EN61010).

Noryl (GE), UL94V1. Black Noryl (GE), UL94V0. Black

180 g.

0,1 0,2 0,5 1,0 2,0 5,0 8,0 I [A]

Indicators:

Protection: Electrical isolation:

Housing: Terminal block: Weight:
