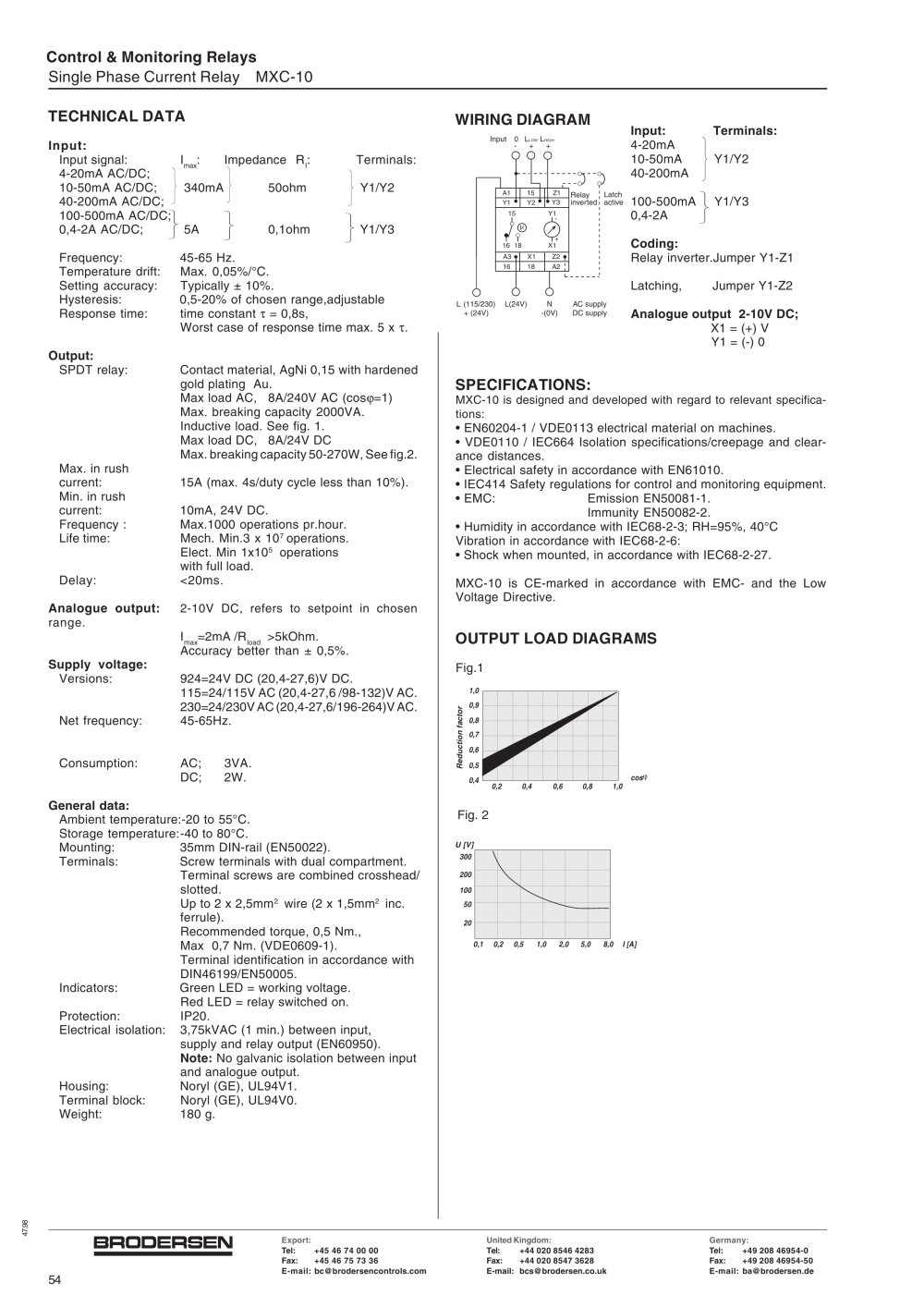

Control & Monitoring relays Single Phase Current RelayMXC-10 TECHNICAL DATA WIRING DIAGRAM

LOW L HIGH Input:Terminals: Input:
- + + 4-20mA 10-50mAY1/Y2 40-200mA100-500mAY1/Y30,4-2A Input signal:I
max :Impedance R
I :Terminals:4-20mA AC/DC;10-50mA AC/DC; 340mA50ohm Y1/Y240-200mA AC/DC;100-500mA AC/DC;0,4-2A AC/DC; 5A0,1ohm Y1/Y3Frequency:45-65 Hz.Temperature drift:Max. 0,05%/°C.Setting accuracy:Typically ± 10%.Hysteresis:0,5-20% of chosen range,adjustableResponse time:time constant
RelayinvertedLatchactiveInput 0 L Coding: Relay inverter.Jumper Y1-Z1Latching, Jumper Y1-Z2
15Y1X1 -+ µ 1618 A3Z1Y3Z2A2 1618 A1Y115Y2X1 Analogue output 2-10V DC; X1 = (+) VY1 = (-) 0
N-(0V)L(24V)L(115/230)+ (24V) AC supplyDC supply Ï„ = 0,8s,Worst case of response time max. 5 x Ï„ . Output: SPDT relay:Contact material, AgNi 0,15 with hardenedgold plating Au.Max load AC,8A/240V AC (cos

SPECIFICATIONS:

Ï• =1)Max. breaking capacity 2000VA. Inductive load. See fig. 1. Max load DC,8A/24V DC Max. breaking capacity 50-270W, See fig.2.Max. in rushcurrent:15A (max. 4s/duty cycle less than 10%).Min. in rushcurrent:10mA, 24V DC.Frequency :Max.1000 operations pr.hour.Life time:Mech. Min.3 x 10
MXC-10 is designed and developed with regard to relevant specifica-tions: • EN60204-1 / VDE0113 electrical material on machines.• VDE0110 / IEC664 Isolation specifications/creepage and clear-ance distances.• Electrical safety in accordance with EN61010. • IEC414 Safety regulations for control and monitoring equipment. • EMC:Emission EN50081-1.Immunity EN50082-2.• Humidity in accordance with IEC68-2-3; RH=95%, 40°C Vibration in accordance with IEC68-2-6: • Shock when mounted, in accordance with IEC68-2-27.MXC-10 is CE-marked in accordance with EMC- and the LowVoltage Directive.
7 operations.Elect. Min 1x10
5 operationswith full load.Delay:<20ms. Analogue output:
2-10V DC, refers to setpoint in chosenrange. I
max =2mA /R
load >5kOhm.Accuracy better than ± 0,5%.

OUTPUT LOAD DIAGRAMS

Supply voltage: Fig.1 Versions:924=24V DC (20,4-27,6)V DC.115=24/115V AC (20,4-27,6 /98-132)V AC. 230=24/230V AC (20,4-27,6/196-264)V AC.Net frequency:45-65Hz.
0,90,80,70,60,50,4 1,0 0,20,40,60,81,0cos Consumption:AC;3VA.DC;2W.
Reduction factor Ï• General data: Ambient temperature:-20 to 55°C.Storage temperature:-40 to 80°C.Mounting:35mm DIN-rail (EN50022).Terminals:Screw terminals with dual compartment.Terminal screws are combined crosshead/slotted. Up to 2 x 2,5mm Fig. 2
U [V] 2 wire (2 x 1,5mm
2 inc.ferrule).Recommended torque, 0,5 Nm., Max 0,7 Nm. (VDE0609-1). Terminal identification in accordance with DIN46199/EN50005.Indicators:Green LED = working voltage.Red LED = relay switched on.Protection:IP20.Electrical isolation:3,75kVAC (1 min.) between input,supply and relay output (EN60950). Note: No galvanic isolation between inputand analogue output.Housing:Noryl (GE), UL94V1. Terminal block:Noryl (GE), UL94V0.Weight:180 g.
0,10,20,51,05,08,0 3002001005020 2,0I [A] 47.98 Export: United Kingdom: Germany: Tel:+45 46 74 00 00Fax:+45 46 75 73 36E-mail:bc@brodersencontrols.com Tel:+44 020 8546 4283Fax:+44 020 8547 3628E-mail:bcs@brodersen.co.uk Tel:+49 208 46954-0Fax:+49 208 46954-50E-mail:ba@brodersen.de 54
