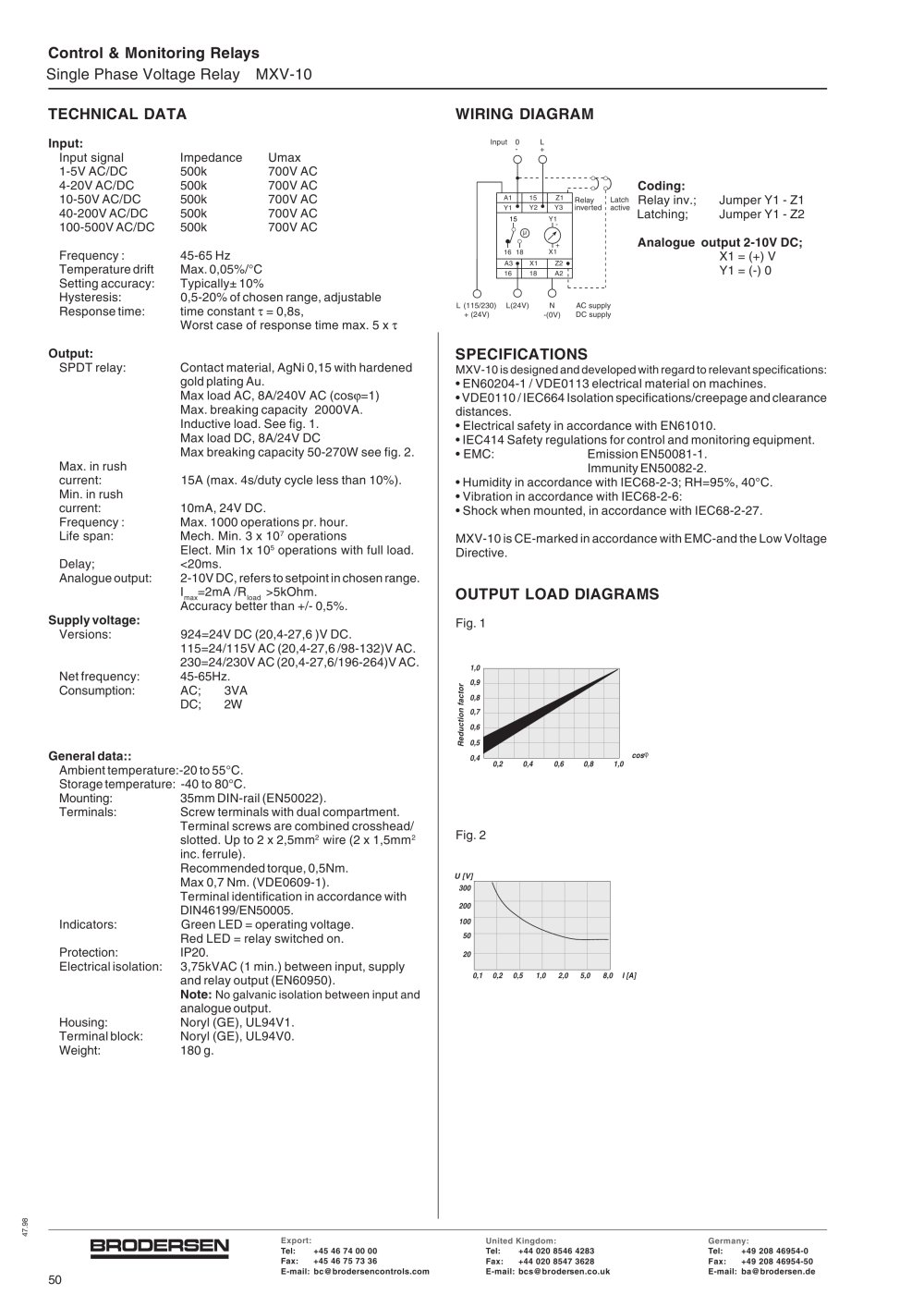

Control & Monitoring relays Single Phase Voltage RelayMXV-10 TECHNICAL DATA WIRING DIAGRAM

Input:
Input 0 L- + Input signalImpedanceUmax1-5V AC/DC500k700V AC4-20V AC/DC500k700V AC10-50V AC/DC500k700V AC40-200V AC/DC500k700V AC100-500V AC/DC500k700V ACFrequency :45-65 HzTemperature driftMax. 0,05%/°CSetting accuracy:Typically± 10%Hysteresis:0,5-20% of chosen range, adjustableResponse time:time constant Coding:
RelayinvertedLatchactive Relay inv.;Jumper Y1 - Z1 Latching;Jumper Y1 - Z2
15 15Y1X1 -+ Analogue output 2-10V DC;
µ X1 = (+) VY1 = (-) 0
1618 A3Z1Y3Z2A2 1618 A1Y115Y2X1 Ï„ = 0,8s,Worst case of response time max. 5 x
L(24V)L(115/230)+ (24V)N-(0V) AC supplyDC supply Ï„ Output:

SPECIFICATIONS

SPDT relay:Contact material, AgNi 0,15 with hardenedgold plating Au.Max load AC, 8A/240V AC (cos
MXV-10 is designed and developed with regard to relevant specifications: • EN60204-1 / VDE0113 electrical material on machines.• VDE0110 / IEC664 Isolation specifications/creepage and clearancedistances.• Electrical safety in accordance with EN61010. • IEC414 Safety regulations for control and monitoring equipment. • EMC:Emission EN50081-1.Immunity EN50082-2.• Humidity in accordance with IEC68-2-3; RH=95%, 40°C. • Vibration in accordance with IEC68-2-6: • Shock when mounted, in accordance with IEC68-2-27.MXV-10 is CE-marked in accordance with EMC-and the Low VoltageDirective. Ï• =1)Max. breaking capacity 2000VA
. Inductive load. See fig. 1. Max load DC, 8A/24V DC Max breaking capacity 50-270W see fig. 2.Max. in rushcurrent:15A (max. 4s/duty cycle less than 10%).Min. in rushcurrent:10mA, 24V DC.Frequency :Max. 1000 operations pr. hour.Life span:Mech. Min. 3 x 10
7 operationsElect. Min 1x 10
5 operations with full load.Delay;<20ms.Analogue output:2-10V DC, refers to setpoint in chosen range.I
max =2mA /R
load >5kOhm.Accuracy better than +/- 0,5%.

OUTPUT LOAD DIAGRAMS

Supply voltage: Fig. 1 Fig. 2 Versions:924=24V DC (20,4-27,6 )V DC.115=24/115V AC (20,4-27,6 /98-132)V AC.230=24/230V AC (20,4-27,6/196-264)V AC.Net frequency:45-65Hz.Consumption:AC;3VADC;2W
0,90,80,70,60,50,4 1,0 0,20,40,60,81,0cos General data:: Ambient temperature:-20 to 55°C.Storage temperature:-40 to 80°C.Mounting:35mm DIN-rail (EN50022).Terminals:Screw terminals with dual compartment.Terminal screws are combined crosshead/slotted. Up to 2 x 2,5mm
Reduction factor Ï• 2 wire (2 x 1,5mm
2 inc. ferrule).Recommended torque, 0,5Nm. Max 0,7 Nm. (VDE0609-1). Terminal identification in accordance withDIN46199/EN50005.Indicators:Green LED = operating voltage.Red LED = relay switched on.Protection:IP20.Electrical isolation:3,75kVAC (1 min.) between input, supplyand relay output (EN60950).
U [V] Note:
0,10,20,51,05,08,0 3002001005020 2,0I [A] No galvanic isolation between input and analogue output.Housing:Noryl (GE), UL94V1.Terminal block:Noryl (GE), UL94V0.Weight:180 g.
47.98 Export: United Kingdom: Germany: Tel:+45 46 74 00 00Fax:+45 46 75 73 36E-mail:bc@brodersencontrols.com Tel:+44 020 8546 4283Fax:+44 020 8547 3628E-mail:bcs@brodersen.co.uk Tel:+49 208 46954-0Fax:+49 208 46954-50E-mail:ba@brodersen.de 50
