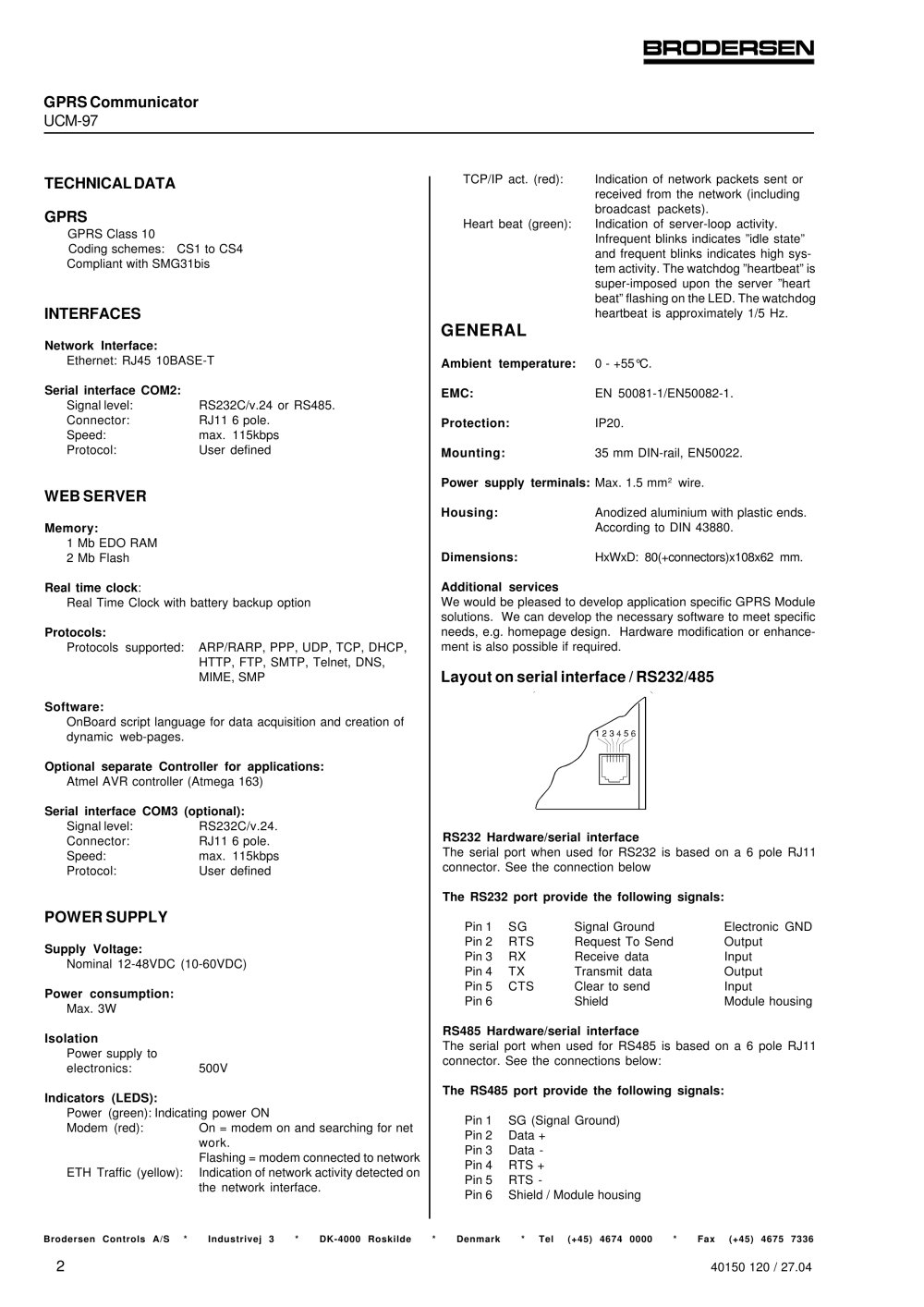

BRODERSEN
GPRS Communicator
UCM-97
TCP/IP act. (red):
Indication of network packets sent or received from the network (including broadcast packets). Indication of server-loop activity. Infrequent blinks indicates "idle state" and frequent blinks indicates high sys­tem activity. The watchdog "heartbeat" is super-imposed upon the server "heart beat" flashing on the LED. The watchdog heartbeat is approximately 1/5 Hz.
TECHNICAL DATA
GPRS
GPRS Class 10
Coding schemes: CS1 to CS4 Compliant with SMG31bis
Heart beat (green):
INTERFACES
Network Interface:
Ethernet: RJ45 10BASE-T
GENERAL
Ambient temperature:
EMC:
Protection: Mounting:
0 - +55°C.
EN 50081-1/EN50082-1.
IP20.
35 mm DIN-rail, EN50022.
Serial interface COM2:
Signal level: Connector: Speed: Protocol:
RS232C/V.24 or RS485. RJ11 6 pole. max. 115kbps User defined
Power supply terminals: Max. 1.5 mm2 wire.
WEBSERVER
Memory:
1 Mb EDO RAM
2 Mb Flash
Real time clock:
Real Time Clock with battery backup option
Housing:
Anodized aluminium with plastic ends. According to DIN 43880.
HxWxD: 80(+connectors)x108x62 mm.
Dimensions:
Additional services
We would be pleased to develop application specific GPRS Module solutions. We can develop the necessary software to meet specific needs, e.g. homepage design. Hardware modification or enhance­ment is also possible if required.
Layout on serial interface / RS232/485
Protocols:
Protocols supported:
ARP/RARP, PPP, UDP, TCP, DHCP, HTTP, FTP, SMTP, Telnet, DNS, MIME, SMP
Software:
OnBoard script language for data acquisition and creation of dynamic web-pages.
Optional separate Controller for applications:
Atmel AVR controller (Atmega 163)
Serial interface COM3 (optional):
Signal level: RS232C/V.24.
Connector: RJ11 6 pole.
Speed: max. 115kbps
Protocol: User defined
RS232 Hardware/serial interface
The serial port when used for RS232 is based on a 6 pole RJ11 connector. See the connection below
The RS232 port provide the following signals:
POWER SUPPLY
Supply Voltage:
Nominal 12-48VDC (10-60VDC)
Power consumption:
Max. 3W
Pin 1
SG
Signal Ground
Electronic GND
Pin 2
RTS
Request To Send
Output
Pin 3
RX
Receive data
Input
Pin 4
TX
Transmit data
Output
Pin 5
CTS
Clear to send
Input
Pin 6
Shield
Module housing
RS485 Hardware/serial interface
The serial port when used for RS485 is based on a 6 pole RJ11 connector. See the connections below:
The RS485 port provide the following signals:
Pin 1 SG (Signal Ground)
Pin 2 Data +
Pin 3 Data -
Pin 4 RTS +
Pin 5 RTS -
Pin 6 Shield / Module housing
Isolation
Power supply to electronics:
500V
Indicators (LEDS):
Power (green): Indicating power ON
Modem (red):
On = modem on and searching for net work.
Flashing = modem connected to network Indication of network activity detected on the network interface.
ETH Traffic (yellow):
* Tel (+45) 4674 0000
Fax (+45) 4675 7336
Brodersen Controls A/S
Industrivej 3
DK-4000 Roskilde
Denmark
2
40150 120 / 27.04
