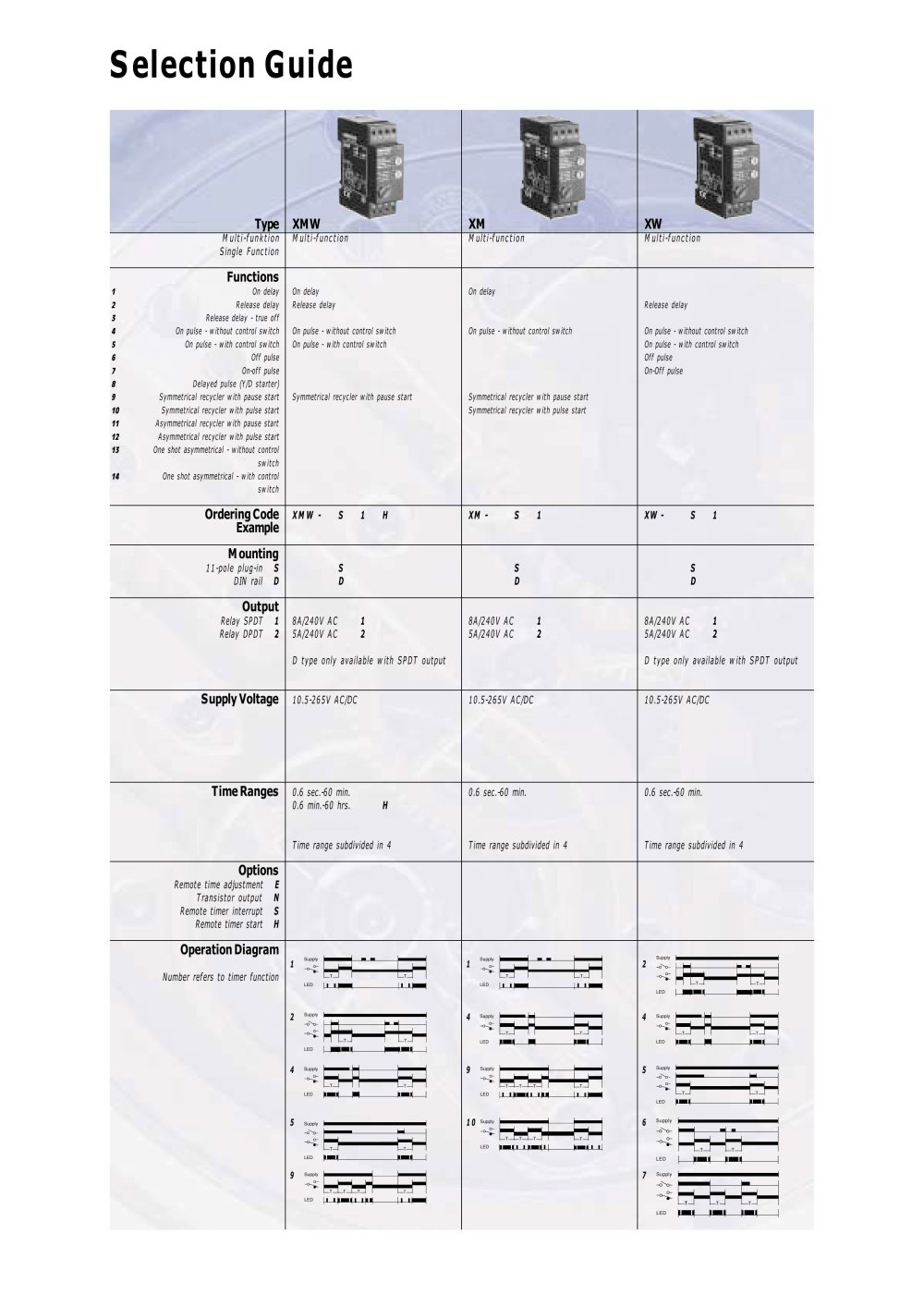

Selection Guide

Type XMW XM XW

Multi-funktionSingle Function Multi-function Multi-function Multi-function

Functions

1234567891011121314 On delayRelease delayRelease delay - true offOn pulse - without control switchOn pulse - with control switchOff pulseOn-off pulseDelayed pulse (Y/D starter)Symmetrical industrial recycler with pause startSymmetrical recycler with pulse startAsymmetrical recycler with pause startAsymmetrical recycler with pulse startOne shot asymmetrical - without controlswitchOne shot asymmetrical - with controlswitch On delayRelease delayOn pulse - without control switchOn pulse - with control switchSymmetrical recycler with pause start On delayOn pulse - without control switchSymmetrical recycler with pause startSymmetrical recycler with pulse start Release delayOn pulse - without control switchOn pulse - with control switchOff pulseOn-Off pulse

Ordering CodeExample

XMW -S1H XM -S1 XW -S1

Mounting

11-pole plug-in S SD SD SD DIN rail D

Output

Relay SPDT 1 8A/240V AC 1 8A/240V AC 1 8A/240V AC 1 Relay DPDT 2 5A/240V AC 2 5A/240V AC 2 5A/240V AC 2 D type only available with SPDT output D type only available with SPDT output

Supply Voltage

10.5-265V AC/DC 10.5-265V AC/DC 10.5-265V AC/DC

Time Ranges

0.6 sec.-60 min.0.6 min.-60 hrs. 0.6 sec.-60 min.Time range subdivided in 4 0.6 sec.-60 min.Time range subdivided in 4 H Time range subdivided in 4

Options

Remote time adjustment E Transistor output N Remote timer interrupt S Remote timer start H

Operation Diagram

SupplyLED 12 459 SupplyLED 14 910 SupplyLED 24 567 Number refers to timer function
T T T T T T SupplyLED SupplyLED SupplyLED T T T T T T SupplyLED SupplyLED Supply LED T T T T T T T T SupplyLED Supply LED SupplyLED T T T T T T T T SupplyLED Supply LED T T T T T T T T
