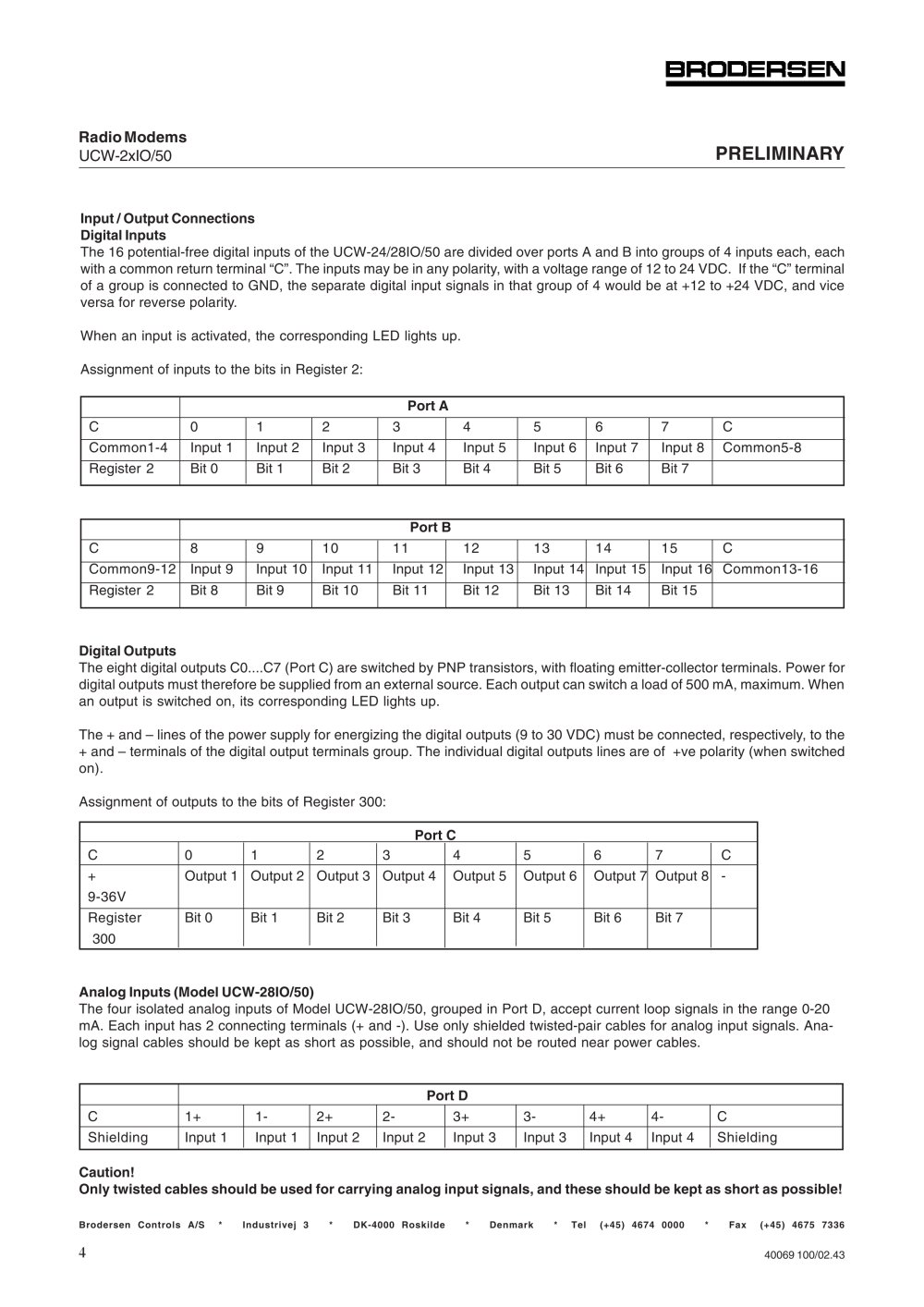

| | | Input / Output Connections Digital Inputs The 16 potential-free digital inputs of the UCW-24/28IO/50 are divided over ports A and B into groups of 4 inputs each, each with a common return terminal "C". The inputs may be in any polarity, with a voltage range of 12 to 24 VDC. If the "C" terminal of a group is connected to GND, the separate digital input signals in that group of 4 would be at +12 to +24 VDC, and vice versa for reverse polarity. When an input is activated, the corresponding LED lights up. | | |
| | | |
| | | Assignment of inputs to the bits in Register 2: | | |
| | | |
| | | | | | | | | | | | | | | | | | | Port A | | | | C | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | C | | | | Common1-4 | Input 1 | Input 2 | Input 3 | Input 4 | Input 5 | Input 6 | Input 7 | Input 8 | Common5-8 | | | | Register 2 | Bit 0 | Bit 1 | Bit 2 | Bit 3 | Bit 4 | Bit 5 | Bit 6 | Bit 7 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | Port B | | | | C | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | C | | | | Common9-12 | Input 9 | Input 10 | Input 11 | Input 12 | Input 13 | Input 14 | Input 15 | Input 16 | Common13-16 | | | | Register 2 | Bit 8 | Bit 9 | Bit 10 | Bit 11 | Bit 12 | Bit 13 | Bit 14 | Bit 15 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Digital Outputs The eight digital outputs C0....C7 (Port C) are switched by PNP transistors, with floating emitter-collector terminals. Power for digital outputs must therefore be supplied from an external source. Each output can switch a load of 500 mA, maximum. When an output is switched on, its corresponding LED lights up. The + and - lines of the power supply for energizing the digital outputs (9 to 30 VDC) must be connected, respectively, to the + and - terminals of the digital output terminals group. The individual digital outputs lines are of +ve polarity (when switched on). | | |
| | | |
| | | Assignment of outputs to the bits of Register 300: | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | Port C | | | | C | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | C | | | | + 9-36V | Output 1 | Output 2 | Output 3 | Output 4 | Output 5 | Output 6 | Output 7 | Output 8 | - | | | | Register 300 | Bit 0 | Bit 1 | Bit 2 | Bit 3 | Bit 4 | Bit 5 | Bit 6 | Bit 7 | | | | | | | | | | | | | | | | | | |
| | | |
| | | Analog Inputs (Model UCW-28IO/50) The four isolated analog inputs of Model UCW-28IO/50, grouped in Port D, accept current loop signals in the range 0-20 mA. Each input has 2 connecting terminals (+ and -). Use only shielded twisted-pair cables for analog input signals. Analog signal cables should be kept as short as possible, and should not be routed near power cables. | | |
| | | |
| | | | | | | | | | | | | | | | | | | Port D | | | | C | 1 + | 1- | 2+ | 2- | 3+ | 3- | 4+ | 4- | C | | | | Shielding | Input 1 | Input 1 | Input 2 | Input 2 | Input 3 | Input 3 | Input 4 | Input 4 | Shielding | | | | | | | | | | | | | | | | | |
| | | |
| | | Caution! Only twisted cables should be used for carrying analog input signals, and these should be kept as short as possible! | | |
| | | |
