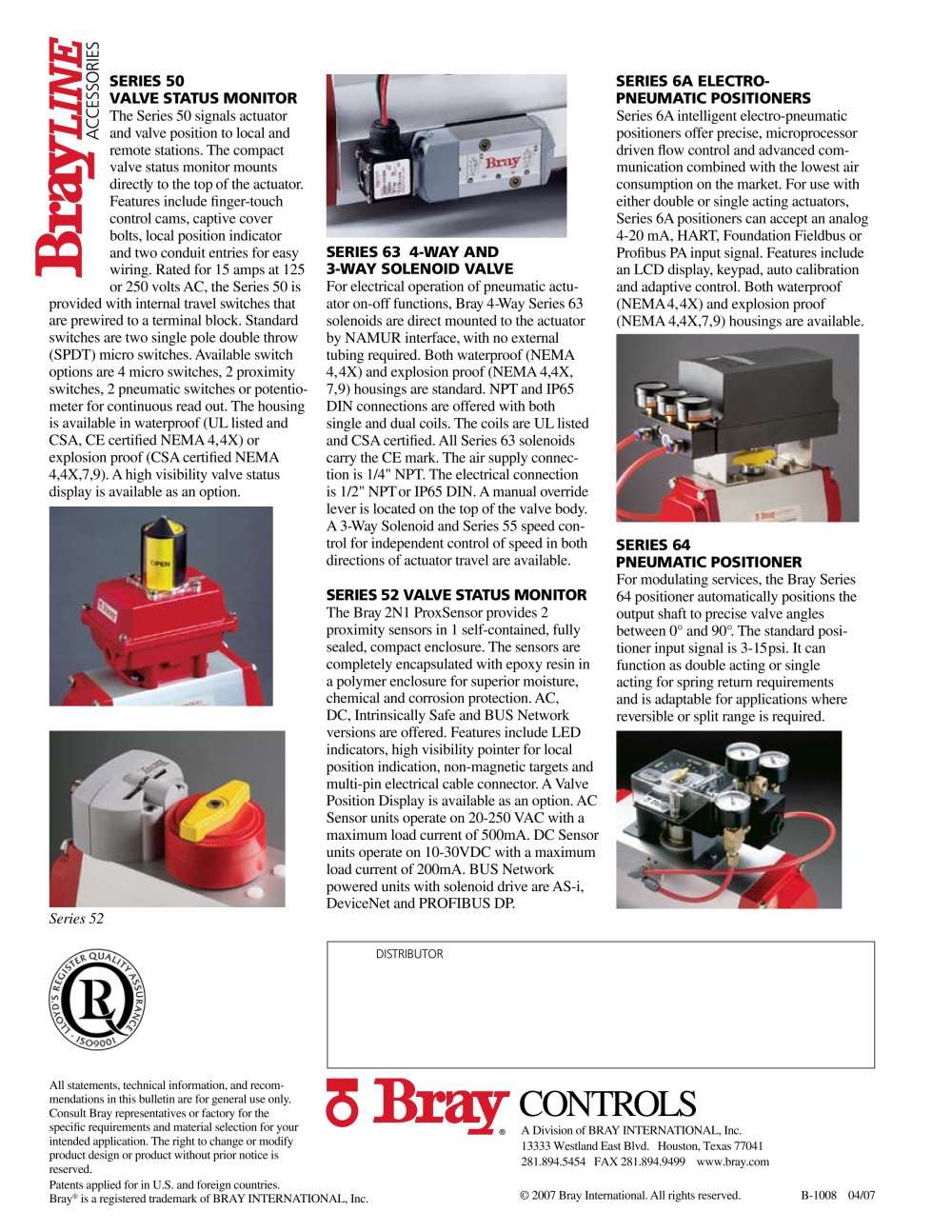

SERIES 52 VALVE STATUS MONITOR The Bray 2N1 ProxSensor provides 2 proximity sensors in 1 self-contained, fully sealed, compact enclosure. The sensors are completely encapsulated with epoxy resin in a polymer enclosure for superior moisture, chemical and corrosion protection. AC, DC, Intrinsically Safe and BUS Network versions are offered. Features include LED indicators, high visibility pointer for local position indication, non-magnetic targets and multi-pin electrical cable connector. A Valve Position Display is available as an option. AC Sensor units operate on 20-250 VAC with a maximum load current of 500mA. DC Sensor units operate on 10-30VDC with a maximum load current of 200mA. BUS Network powered units with solenoid drive are AS-i, DeviceNet and PROFIBUS DP. SERIES 63 4-WAY AND 3-WAY SOLENOID VALVE For electrical operation of pneumatic actu- ator on-off functions, Bray 4-Way Series 63 solenoids are direct mounted to the actuator by NAMUR interface, with no external tubing required. Both waterproof (NEMA 4,4X) and explosion proof (NEMA 4,4X, 7,9) housings are standard. NPT and IP65 DIN connections are offered with both single and dual coils. The coils are UL listed and CSA certified. All Series 63 solenoids carry the CE mark. The air supply connec- tion is 1/4" NPT. The electrical connection is 1/2" NPT or IP65 DIN. A manual override lever is located on the top of the valve body. A 3-Way Solenoid and Series 55 speed con- trol for independent control of speed in both directions of actuator travel are available. Series 52 SERIES 50VALVE STATUS MONITOR The Series 50 signals actuator and valve position to local and remote stations. The compact valve status monitor mounts directly to the top of the actuator. Features include finger-touch control cams, captive cover bolts, local position indicator and two conduit entries for easy wiring. Rated for 15 amps at 125 or 250 volts AC, the Series 50 is SERIES 6A ELECTRO- PNEUMATIC POSITIONERS Series 6A intelligent electro-pneumatic positioners offer precise, microprocessor driven flow control and advanced com- munication combined with the lowest air consumption on the market. For use with either double or single acting actuators, Series 6A positioners can accept an analog 4-20 mA, HART, Foundation Fieldbus or Profibus PA input signal. Features include an LCD display, keypad, auto calibration and adaptive control. Both waterproof (NEMA 4,4X) and explosion proof (NEMA 4,4X,7,9) housings are available. SERIES 64PNEUMATIC POSITIONER For modulating services, the Bray Series 64 positioner automatically positions the output shaft to precise valve angles between 0° and 90°. The standard posi- tioner input signal is 3-15 psi. It can function as double acting or single acting for spring return requirements and is adaptable for applications where reversible or split range is required. provided with internal travel switches that are prewired to a terminal block. Standard switches are two single pole double throw (SPDT) micro switches. Available switch options are 4 micro switches, 2 proximity switches, 2 pneumatic switches or potentio- meter for continuous read out. The housing is available in waterproof (UL listed and CSA, CE certified NEMA 4,4X) or explosion proof (CSA certified NEMA 4,4X,7,9). A high visibility valve status display is available as an option.
DISTRIBUTOR All statements, technical information, and recom-mendations in this bulletin are for general use only. Consult Bray representatives or factory for the specific requirements and material selection for your intended application. The right to change or modify product design or product without prior notice is reserved.Patents applied for in U.S. and foreign countries.Bray
