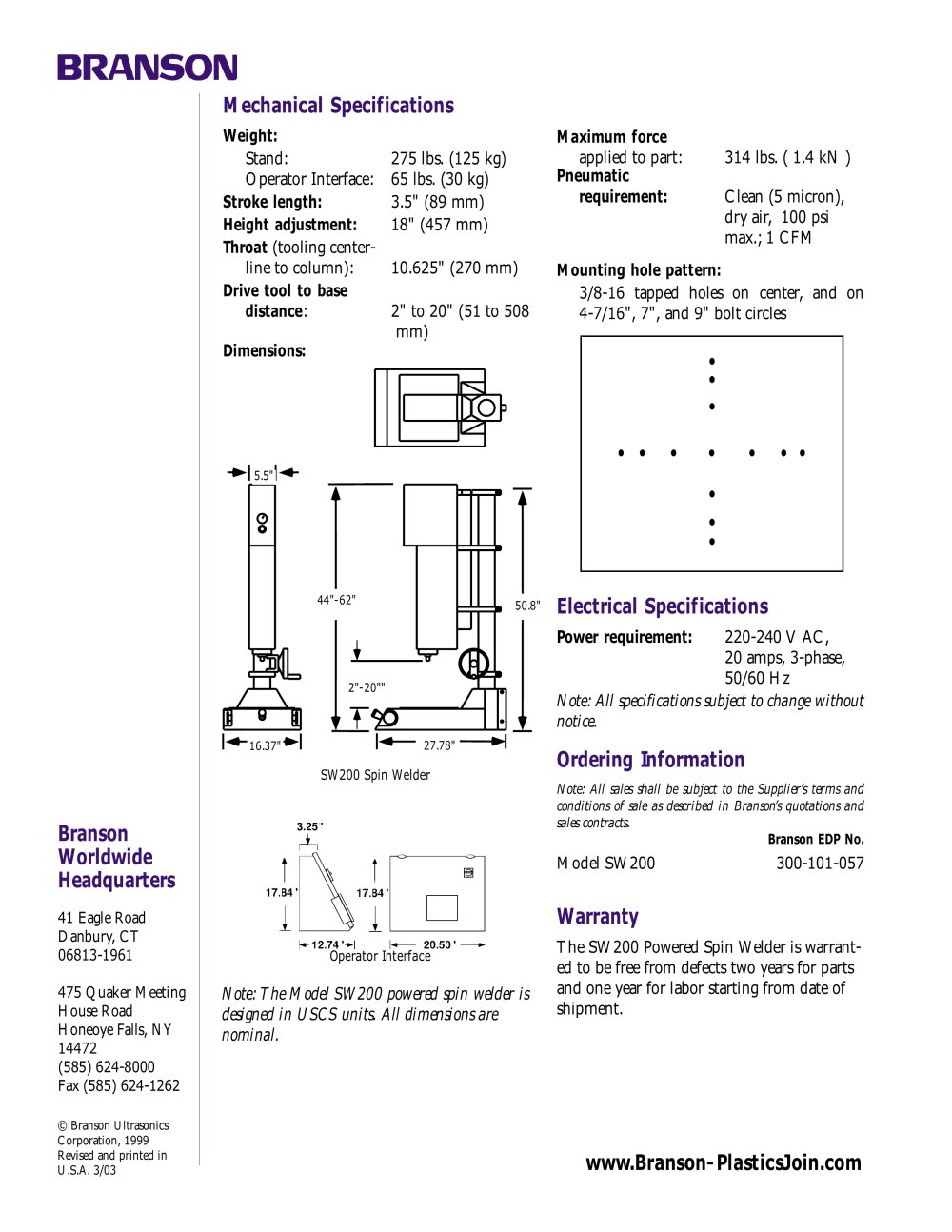

Mechanical Specifications

Weight: Maximum force Stand:275 lbs. (125 kg)Operator Interface:65 lbs. (30 kg) applied to part:314 lbs. ( 1.4 kN ) Pneumaticrequirement: Stroke length: 3.5" (89 mm) Clean (5 micron),dry air, 100 psi max.; 1 CFM Height adjustment: 18" (457 mm) Mounting hole pattern: Throat (tooling center-line to column):10.625" (270 mm) 3/8-16 tapped holes on center, and on 4-7/16", 7", and 9" bolt circles Drive tool to basedistance :2" to 20" (51 to 508mm) Dimensions:

? ? ? ? ? ? ? ? ? ?

5.5"

? ? ?

44"-62" 50.8"

Electrical Specifications

Power requirement: 220-240 V AC, 20 amps, 3-phase, 50/60 Hz Note: All specifications subject to change withoutnotice.
2"-20"" 16.37" 27.78" SW200 Spin Welder

Ordering Information

Branson EDP No. Note: All sales shall be subject to the Supplier’s terms and conditions of sale as described in Branson’s quotations and sales contracts.

BransonWorldwide Headquarters

Model SW200300-101-057
17.84"3.25" 12.74"20.50" 17.84" 41 Eagle RoadDanbury, CT 06813-1961475 Quaker MeetingHouse Road Honeoye Falls, NY 14472 (585) 624-8000 Fax (585) 624-1262

Warranty

Operator Interface The SW200 Powered Spin Welder is warrant-ed to be free from defects two years for parts and one year for labor starting from date of shipment. Note: The Model SW200 powered spin welder is designed in USCS units. All dimensions are nominal.
