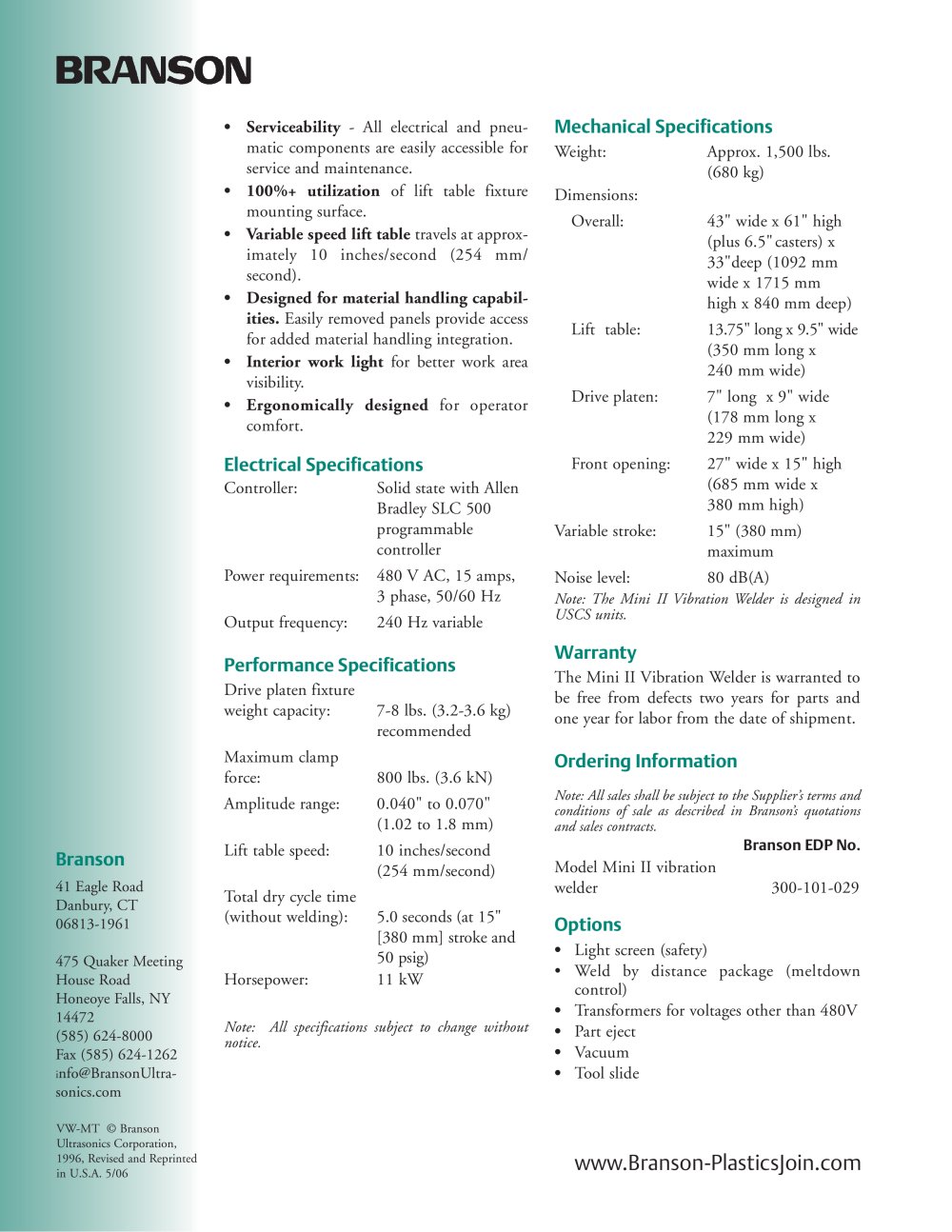

•Serviceability - All electrical and pneu-matic components are easily accessible for service and maintenance.

Mechanical Specifications

•100%+ utilization of lift table fixturemounting surface. Weight:Approx. 1,500 lbs. (680 kg)Dimensions:Overall:43" wide x 61" high(plus 6.5"casters) x 33"deep (1092 mm wide x 1715 mm high x 840 mm deep)Lift table:13.75" long x 9.5" wide(350 mm long x 240 mm wide)Drive platen:7" long x 9" wide (178 mm long x 229 mm wide)Front opening:27" wide x 15" high(685 mm wide x 380 mm high)Variable stroke:15" (380 mm)maximumNoise level:80 dB(A) •Variable speed lift table travels at approx-imately 10 inches/second (254 mm/ second). •Designed for material handling capabil-ities. Easily removed panels provide accessfor added material handling integration. •Interior work light for better work areavisibility. •Ergonomically designed for operatorcomfort.

Electrical Specifications

Controller:Solid state with Allen Bradley SLC 500 programmable controllerPower requirements:480 V AC, 15 amps, 3 phase, 50/60 HzOutput frequency: 240 Hz variable
Note: The Mini II Vibration Welder is designed inUSCS units.

Performance Specifications Warranty

Drive platen fixture weight capacity:7-8 lbs. (3.2-3.6 kg) recommendedMaximum clamp force:800 lbs. (3.6 kN) Amplitude range: 0.040" to 0.070"(1.02 to 1.8 mm)Lift table speed:10 inches/second (254 mm/second)Total dry cycle time (without welding):5.0 seconds (at 15"[380 mm] stroke and 50 psig) Horsepower:11 kW The Mini II Vibration Welder is warranted tobe free from defects two years for parts and one year for labor from the date of shipment.

Ordering Information

Note: All sales shall be subject to the Supplier’s terms andconditions of sale as described in Branson’s quotations and sales contracts. Branson EDP No .

Branson

Model Mini II vibration welder 300-101-029
41 Eagle RoadDanbury, CT 06813-1961475 Quaker MeetingHouse Road Honeoye Falls, NY 14472 (585) 624-8000 Fax (585) 624-1262

Options

• Light screen (safety)•Weld by distance package (meltdown control) • Transformers for voltages other than 480V
Note: All specifications subject to change withoutnotice. • Part eject • Vacuum
i nfo@BransonUltra-sonics.com • Tool slide
VW-MT © Branson Ultrasonics Corporation, 1996, Revised and Reprinted in U.S.A. 5/06
