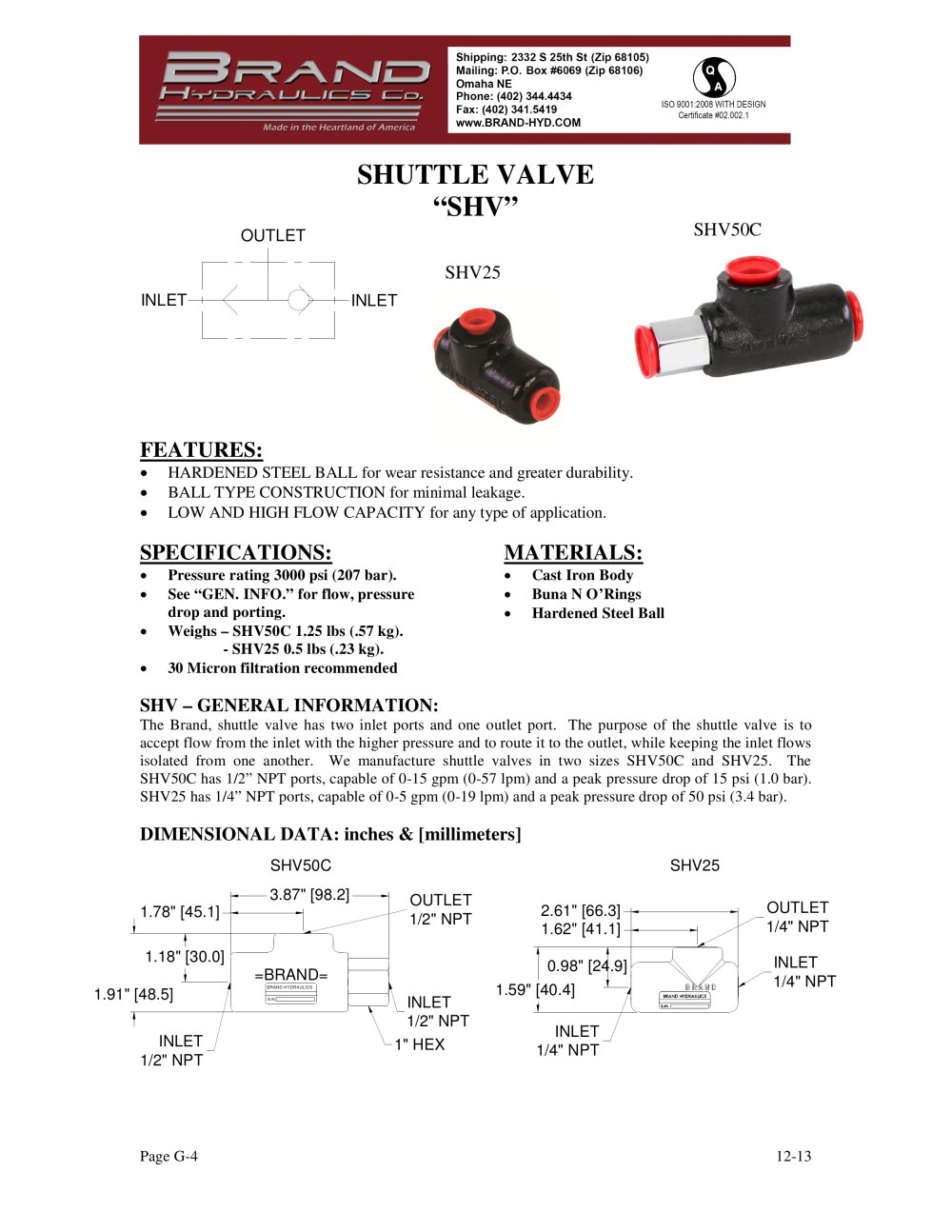

Page G-4 02-08 Certificate #02.002.1 ISO 9001:2000 WITH DESIGN =BRAND= 2.04" [51.8] 1.55" [39.4] INLET 1/4" NPT INLET 1/4" NPT OUTLET 1/4" NPT SHV25 S.N. BRAND HYDRAULICS BRAND HYDRAULICS S.N. 0.95" [24.1] 1.02" [25.9] =BRAND= 1.78" [45.1] 3.87" [98.2] 1.18" [30.0] 1.91" [48.5] INLET 1/2" NPT INLET 1/2" NPT OUTLET 1/2" NPT 1" HEX SHV50C INLET INLET OUTLET SHUTTLE VALVE “SHV” FEATURES: „h HARDENED STEEL BALL for wear resistance and greater durability. „h BALL TYPE CONSTRUCTION for minimal leakage. „h LOW AND HIGH FLOW CAPACITY for any type of application. SPECIFICATIONS: „h Pressure rating 3000 psi (207 bar). „h See “GEN. INFO.” for flow, pressure drop and porting. „h Weighs – SHV50C 1.25 lbs (.57 kg). - SHV25 0.5 lbs (.23 kg). „h 30 Micron filtration recommended MATERIALS: „h Cast Iron Body „h Buna N O’Rings „h Hardened Steel Ball SHV – GENERAL INFORMATION: The Brand, shuttle valve has two inlet ports and one outlet port. The purpose of the shuttle valve is to accept flow from the inlet with the higher pressure and to route it to the outlet, while keeping the inlet flows isolated from one another. We manufacture shuttle valves in two sizes SHV50C and SHV25. The SHV50C has 1/2” NPT ports, capable of 0-15 gpm (0-57 lpm) and a peak pressure drop of 15 psi (1.0 bar). SHV25 has 1/4” NPT ports, capable of 0-5 gpm (0-19 lpm) and a peak pressure drop of 50 psi (3.4 bar). DIMENSIONAL DATA: inches & [millimeters] SHV50C SHV25
