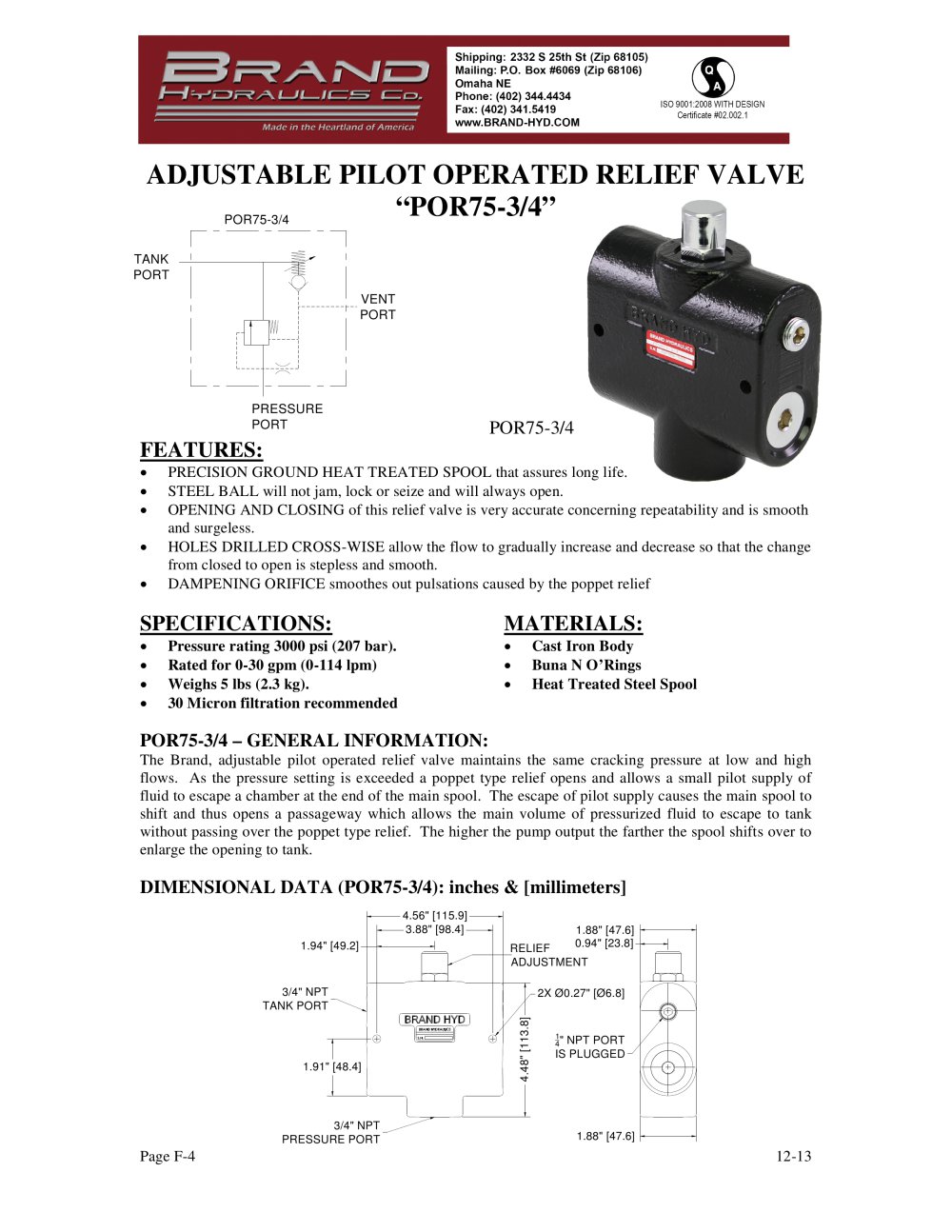

ADJUSTABLE PILOT OPERATED RELIEF VALVE “POR75-3/4” - BRAND HYDRAULICS - #1

Text version of the page

Page F-4 02-08 Certificate #02.002.1 ISO 9001:2000 WITH DESIGN 0.94" [23.8] 1.88" [47.6] RELIEF ADJUSTMENT 2X Ø0.27" [Ø6.8] 3/4" NPT PRESSURE PORT 3/4" NPT TANK PORT 1 4" NPT PORT IS PLUGGED 1.91" [48.4] 1.94" [49.2] 3.88" [98.4] 4.56" [115.9] 4.48" [113.8] 1.88" [47.6] TANK PORT PRESSURE PORT POR75-3/4 VENT PORT ADJUSTABLE PILOT OPERATED RELIEF VALVE “POR75-3/4” FEATURES: „h PRECISION GROUND HEAT TREATED SPOOL that assures long life. „h STEEL BALL will not jam, lock or seize and will always open. „h OPENING AND CLOSING of this relief valve is very accurate concerning repeatability and is smooth and surgeless. „h HOLES DRILLED CROSS-WISE allow the flow to gradually increase and decrease so that the change from closed to open is stepless and smooth. „h DAMPENING ORIFICE smoothes out pulsations caused by the poppet relief SPECIFICATIONS: „h Pressure rating 3000 psi (207 bar). „h Rated for 0-30 gpm (0-114 lpm) „h Weighs 5 lbs (2.3 kg). „h 30 Micron filtration recommended MATERIALS: „h Cast Iron Body „h Buna N O’Rings „h Heat Treated Steel Spool POR75-3/4 – GENERAL INFORMATION: The Brand, adjustable pilot operated relief valve maintains the same cracking pressure at low and high flows. As the pressure setting is exceeded a poppet type relief opens and allows a small pilot supply of fluid to escape a chamber at the end of the main spool. The escape of pilot supply causes the main spool to shift and thus opens a passageway which allows the main volume of pressurized fluid to escape to tank without passing over the poppet type relief. The higher the pump output the farther the spool shifts over to enlarge the opening to tank. DIMENSIONAL DATA (POR75-3/4): inches & [millimeters] POR75-3/4
