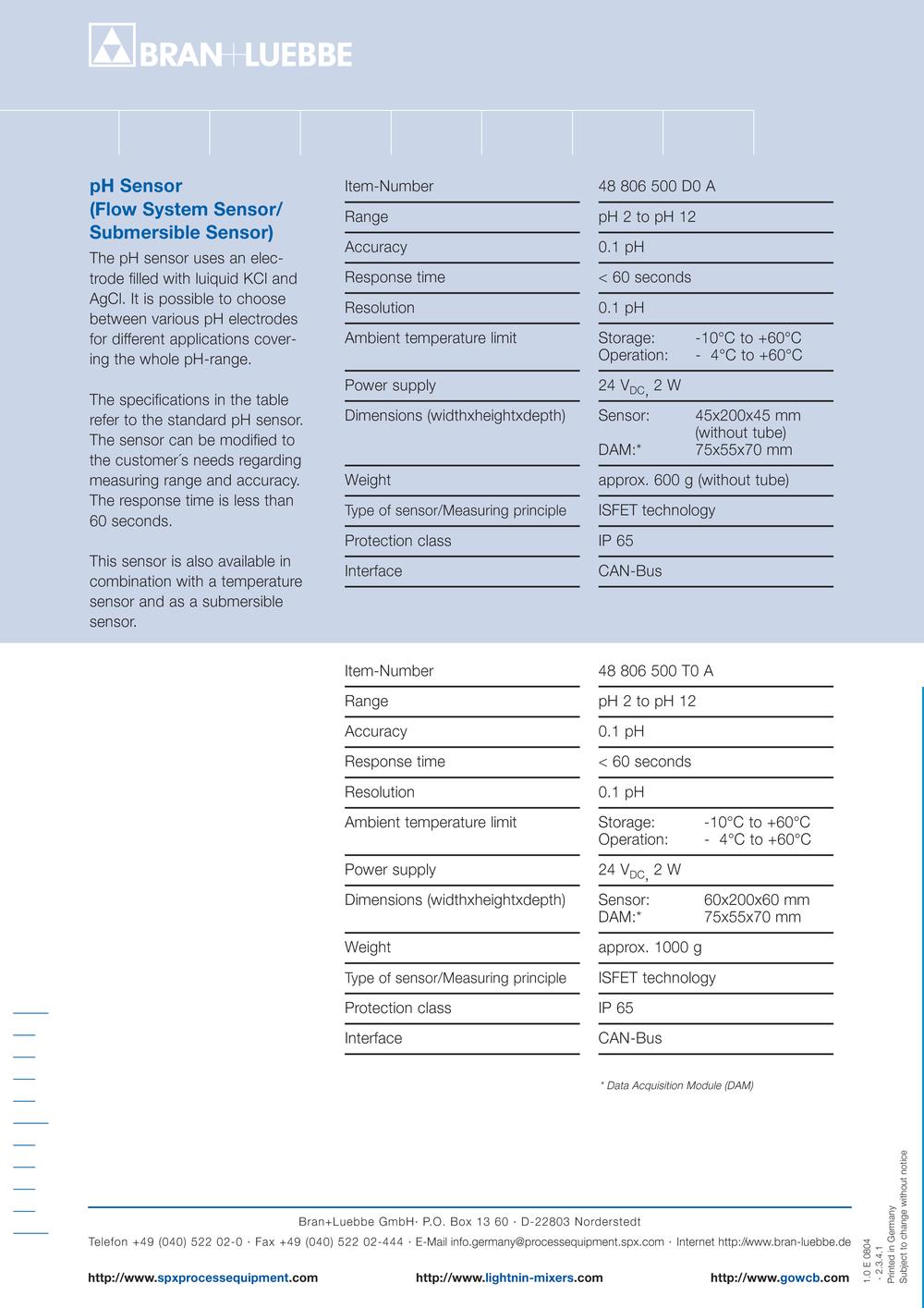

pH Sensor

(Flow System Sensor/ Submersible Sensor)

The pH sensor uses an electrode filled with luiquic] KCI and AgCI. It is possible to choose between various ph electrodes for different applications covering the whole pH-range.

The specifications in the table refer to the standard pH sensor. The sensor can be modified to the customer's needs regarding measuring range and accuracy.

e time is less than

Item-Number

48 806 500 DO A


	Range	pH 2topH 12
	Accuracy	0.1 pH
	Response time	< 60 seconds
	Resolution	0.1 pH
	Ambient temperature limit	Storage: -10°C to +60°C Operation: - 4°c to +60°C
	Power supply	24 V_DCp 2 W
	Dimensions (widthxheightxdepth)	Sensor: 45x200x45 mm (without tube) DAM:' 75x55x70 mm
	Weight	approx. 600 g (without tube)
	Type of sensor/Measuring principle	ISFET technology
	Protection class	IP 65
	Interface	can-bus

	Item-Number	48 806 500 TO A
	Range pH 2 to pH 12
	Accuracy	0.1 pH
	Response time	< 60 seconds
	Resolution	0.1 pH
	Ambient temperature limit	Storage: -10°C to +60°C Operation: - 4°C to +60°C
	Power supply	24 V_DC 2 W
	Dimensions (widthxheightxdepth)	Sensor: 60x200x60 mm DAM:' 75x55x70 mm
	Weight	approx. 1000 g
	Type of sensor/Measuring principle	ISFET technology
	Protection class	IP 65

This sensor is also available in combination with a temperature sensor and as a submersible

Interface

can-Bus
