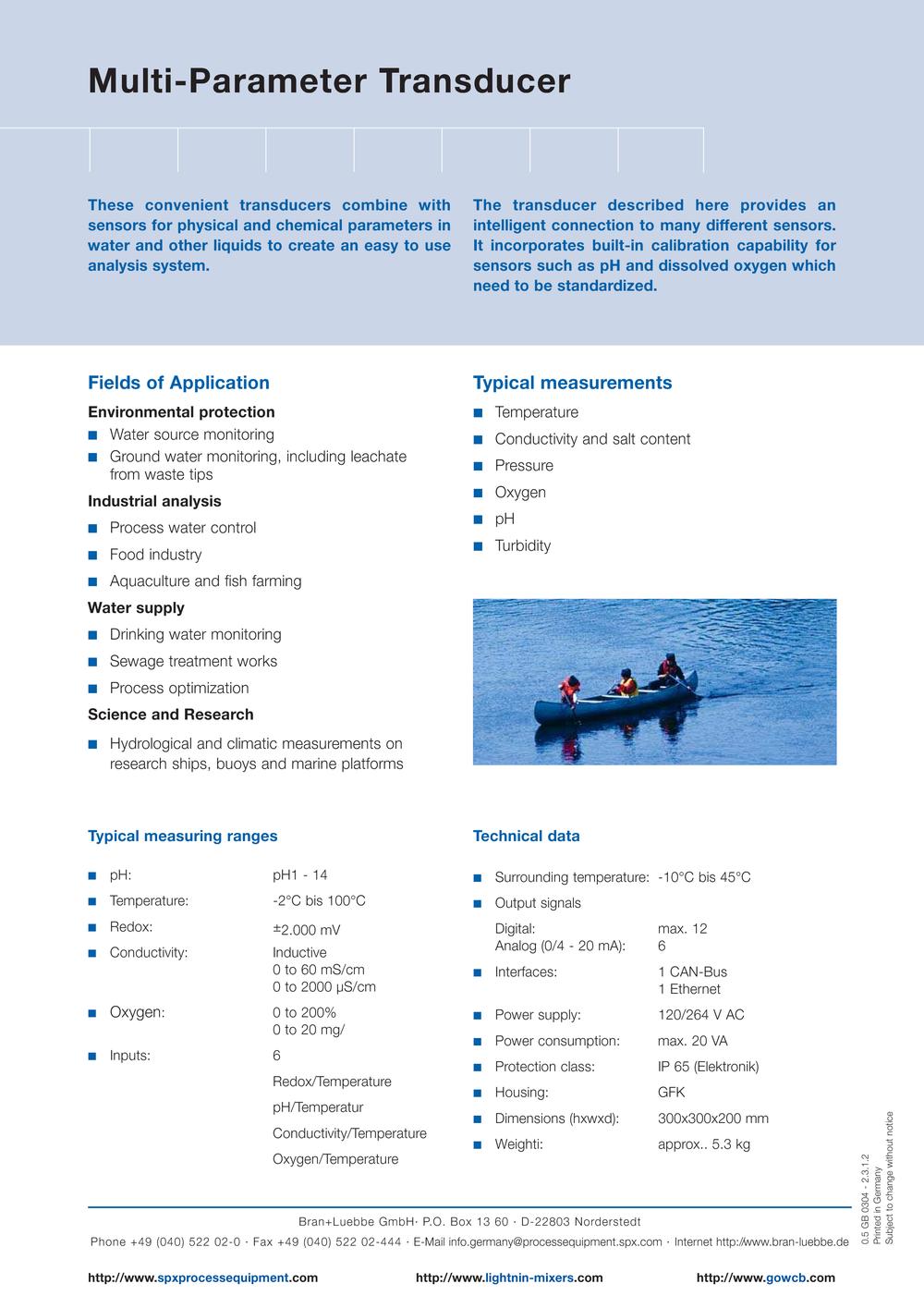

| | Multi-Parameter Transducer | |
| | | |
| | | analysis system. sensors such as pH and dissolved oxygen which need to be standardized. | | |
| | | |
| | | Fields of Application Environmental protection ■ Water source monitoring ■ Ground water monitoring, including leachate from waste tips ■ Process water control ■ Food industry ■ Aquaculture and fish farming Water supply ■ Drinking water monitoring ■ Sewage treatment works ■ Process optimization Science and Research ■ Hydrological and climatic measurements on research ships, buoys and marine platforms | | Typical measurements ■ Temperature ■ Conductivity and salt content ■ Pressure ■ Oxygen ■ pH ■ Turbidity | | |
| | | |
| | | |
| | | Typical measuring ranges | | Technical data | | |
| | | |
| | | |
| | | ■ pH: ■ Temperature: ■ Redox: ■ Conductivity: ■ Oxygen: ■ Inputs: | | pH1 - 14 -2°C bis 100°C ±2.000 mV Inductive 0 to 60 mS/cm 0 to 2000 uS/cm 0 to 200% 0 to 20 mg/ 6 Redox/Temperature pH/Temperatur Conductivity/Temperature Oxygen/Temperature | | |
| | | Surrounding temperature: Output signals Digital: Analog (0/4 - 20 mA): Interfaces: Power supply: Power consumption: Protection class: Housing: Dimensions (hxwxd): Weighti: | | -10°C bis 45°C max. 12 6 1 CAN-Bus 1 Ethernet 120/264 V AC max. 20 VA IP 65 (Elektronik) GFK 300x300x200 mm approx.. 5.3 kg | | |
| | | |
| | | o | | |
| | | |
| | | |
| | | Ô ET 0J ^ ra ex JO" r) CD CD D 0_ CO | | |
| | | Bran+Luebbe GmbH- P.O. Box 13 60 • D-22803 Norderstedt Phone +49 (040) 522 02-0 • Fax +49 (040) 522 02-444 • E-Mail info.germany@processequipment.spx.com • Internet http://www.bran-luebbe.de | | |
| | | |
| | | |
