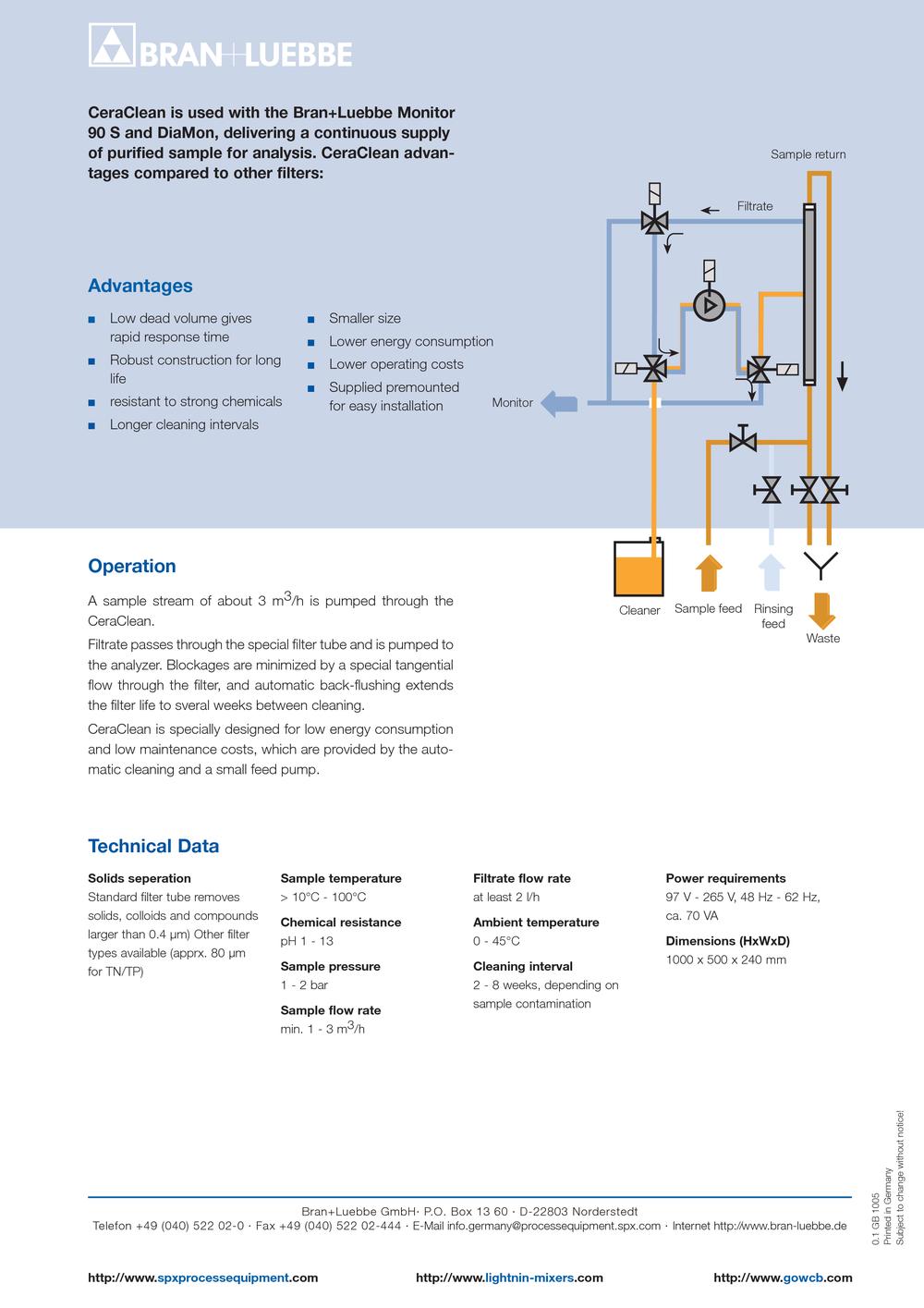

| | | A sample stream of about 3 m3/h is pumped through the CeraClean. Filtrate passes through the special filter tube and is pumped to the analyzer. Blockages are minimized by a special tangential flow through the filter, and automatic back-flushing extends the filter life to sveral weeks between cleaning. CeraClean is specially designed for low energy consumption and low maintenance costs, which are provided by the automatic cleaning and a small feed pump. | | |
| | | Cleaner Sample feed Rinsing feed | | |
| | | |
| | | Waste | | |
| | | |
| | | |
| | | Technical Data | | |
| | | |
| | | Filtrate flow rate at least 2 l/h Ambient temperature 0 - 45°C Cleaning interval 2 - 8 weeks, depending on sample contamination | | |
| | | Solids seperation Standard filter tube removes solids, colloids and compounds larger than 0.4 urn) Other filter types available (apprx. 80 um for TN/TP) | | Sample temperature > 10°C - 100°C Chemical resistance pH 1 - 13 Sample pressure 1 - 2 bar Sample flow rate min. 1 - 3 m3/h | | | Power requirements 97 V - 265 V, 48 Hz - 62 Hz, ca. 70 VA Dimensions (HxWxD) 1000 x 500 x 240 mm | | |
| | | |
| | | |
| | | |
| | | |
| | | C z c CO a: Ë § | | |
| | | |
| | | Bran+Luebbe GmbH- P.O. Box 13 60 • D-22803 Norderstedt ^ £ ~ Telefon +49 (040) 522 02-0 • Fax +49 (040) 522 02-444 • E-Mail info.germany@processequipment.spx.com • Internet http://www.bran-luebbe.de § | 1 O Cl. X | | |
| | | |
