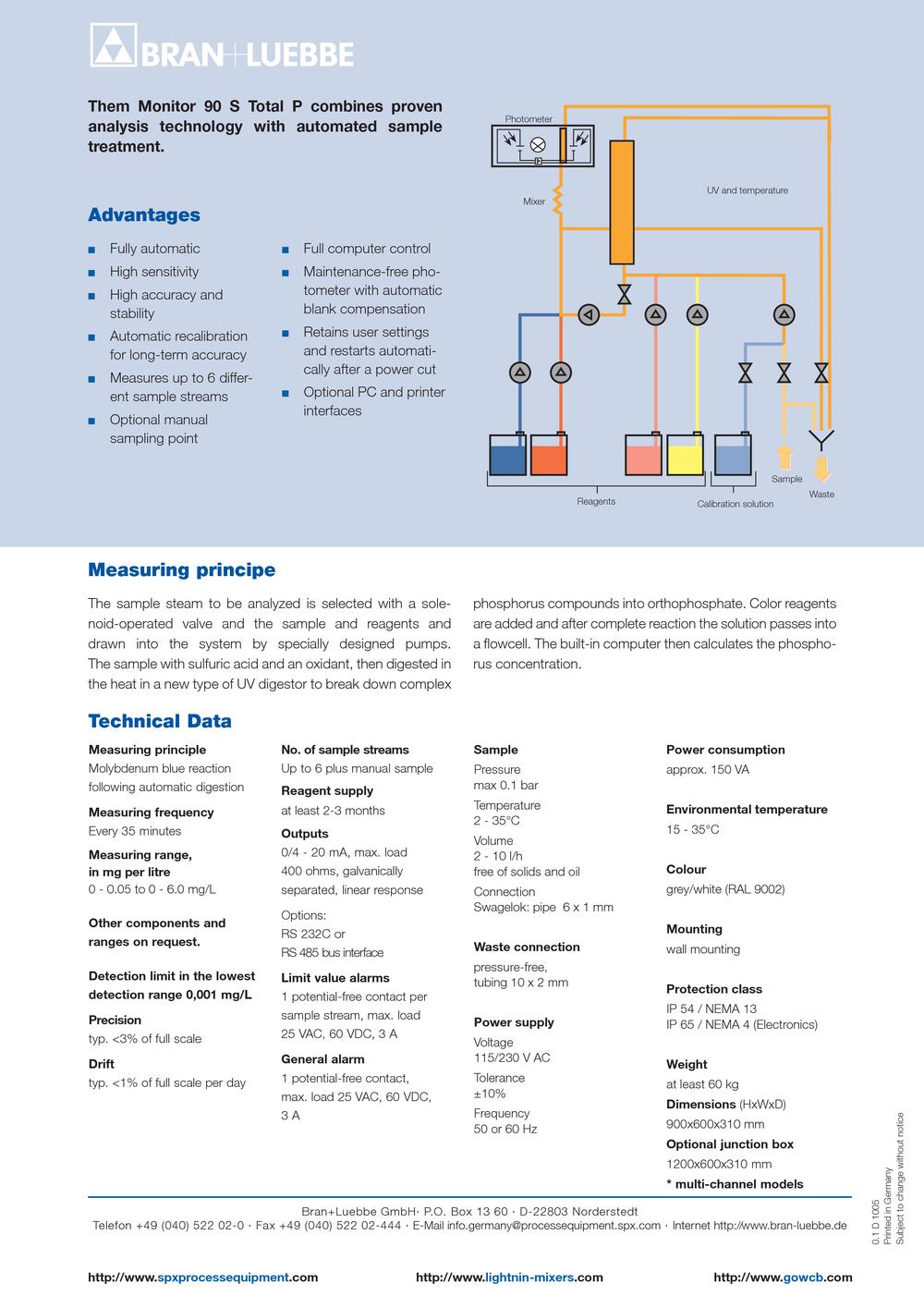

| | | Technical Data Measuring principle Molybdenum blue reaction following automatic digestion Measuring frequency Every 35 minutes Measuring range, in mg per litre 0 - 0.05 to 0 - 6.0 mg/L Other components and ranges on request. Detection limit in the lowest detection range 0,001 mg/L Precision typ. <3% of full scale Drift typ. <1% of full scale per day | | |
| | | No. of sample streams Up to 6 plus manual sample Reagent supply at least 2-3 months Outputs 0/4 - 20 mA, max. load 400 ohms, galvanically separated, linear response Options: RS 232C or RS 485 bus interface Limit value alarms 1 potential-free contact per sample stream, max. load 25 VAC, 60 VDC, 3 A General alarm 1 potential-free contact, max. load 25 VAC, 60 VDC, 3 A | | Sample Pressure max 0.1 bar Temperature 2 - 35°C Volume 2 - 10 l/h free of solids and oil Connection Swagelok: pipe 6 x 1 mm Waste connection pressure-free, tubing 10 x 2 mm Power supply Voltage 115/230 V AC Tolerance ±10% Frequency 50 or 60 Hz | | Power consumption approx. 150 VA Environmental temperature 15 - 35°C Colour grey/white (RAL 9002) Mounting wall mounting Protection class IP 54 / NEMA 13 IP 65 / NEMA 4 (Electronics) Weight at least 60 kg Dimensions (HxWxD) 900x600x310 mm Optional junction box 1200x600x310 mm * multi-channel models | | |
