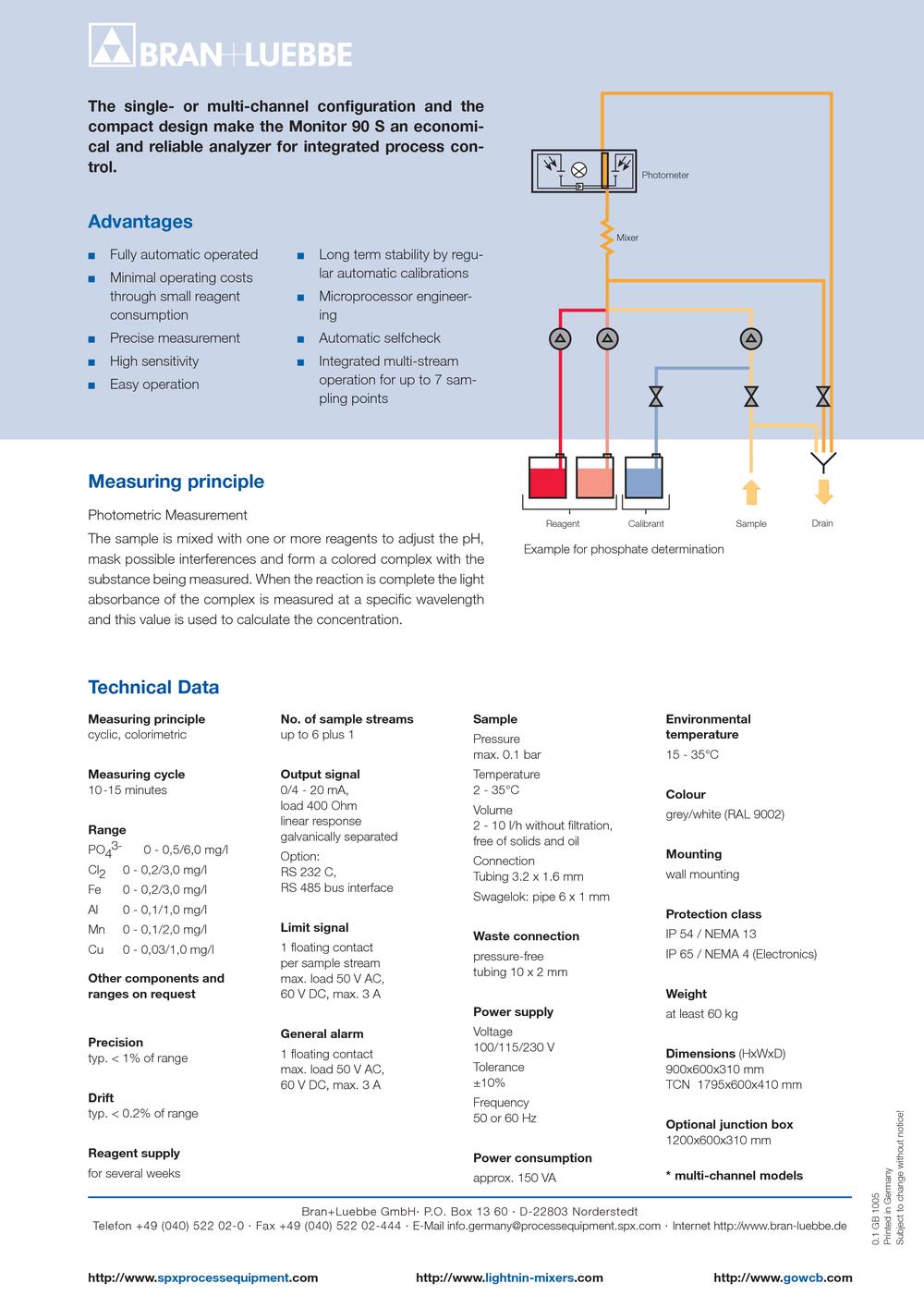

| | | Measuring principle cyclic, colorimetrie | | No. of sample streams up to 6 plus 1 Output signal 0/4 - 20 mA, load 400 Ohm linear response galvanlcally separated Option: RS 232 C, RS 485 bus interface Limit signal 1 floating contact per sample stream max. load 50 V AC, 60 V DC, max. 3 A General alarm 1 floating contact max. load 50 V AC, 60 V DC, max. 3 A | | Sample Pressure max. 0.1 bar Temperature 2 - 35°C Volume 2 - 10 l/h without filtration, free of solids and oil Connection Tubing 3.2 x 1.6 mm Swagelok: pipe 6 x 1 mm Waste connection pressure-free tubing 10 x 2 mm Power supply Voltage 100/115/230 V Tolerance ±10% Frequency 50 or 60 Hz Power consumption approx. 150 VA | | Environmental temperature 15 - 35°C Colour grey/white (RAL 9002) Mounting wall mounting Protection class IP 54 / NEMA 13 IP 65 / NEMA 4 (Electronics) Weight at least 60 kg Dimensions (HxWxD) 900x600x310 mm TCN 1795x600x410 mm 1200x600x310 mm * multi-channel models | | |
| | | Range PO43- 0 - 0,5/6,0 mg/l Cl2 0 - 0,2/3,0 mg/l Fe 0 - 0,2/3,0 mg/l Al 0 - 0,1/1,0 mg/l Mn 0 - 0,1/2,0 mg/l Cu 0 - 0,03/1,0 mg/l Other components and ranges on request | | |
