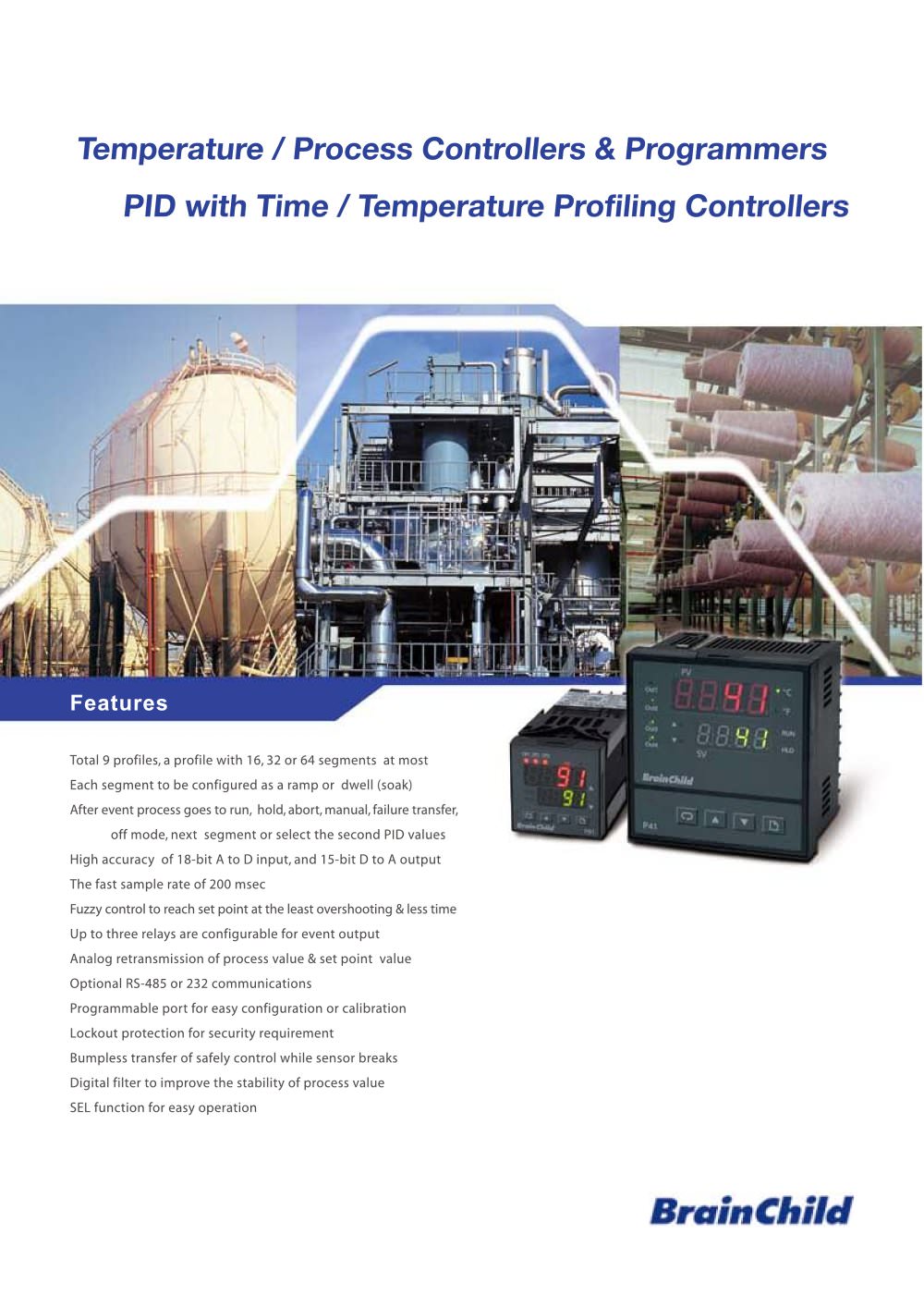

Température I Process Controllers & Programmers P/D with Time I Température Profiling Controllers Total 9 profiles, a profile with 16,32 or 64 segments at most Each segment to be configurée! as a ramp or dwell (soak) After event process goes to run, hold,abort,manual,failure transfer, off mode, next segment or select the second PID values High accuracy of 18-bit A to D input, and 15-bit D to A output The fast sample rate of 200 msec Fuzzy control to reach set point at the least overshooting & less time Up to three relays are configurable for event output Analog retransmission of process value & set point value Optional RS-485 or 232 communications Programmable port for easy configuration or calibration Lockout protection for security requirement Bumpless transfer of safely control while sensor breaks Digital filter to improve the stability of process value SEL function for easy opération BrainChild
