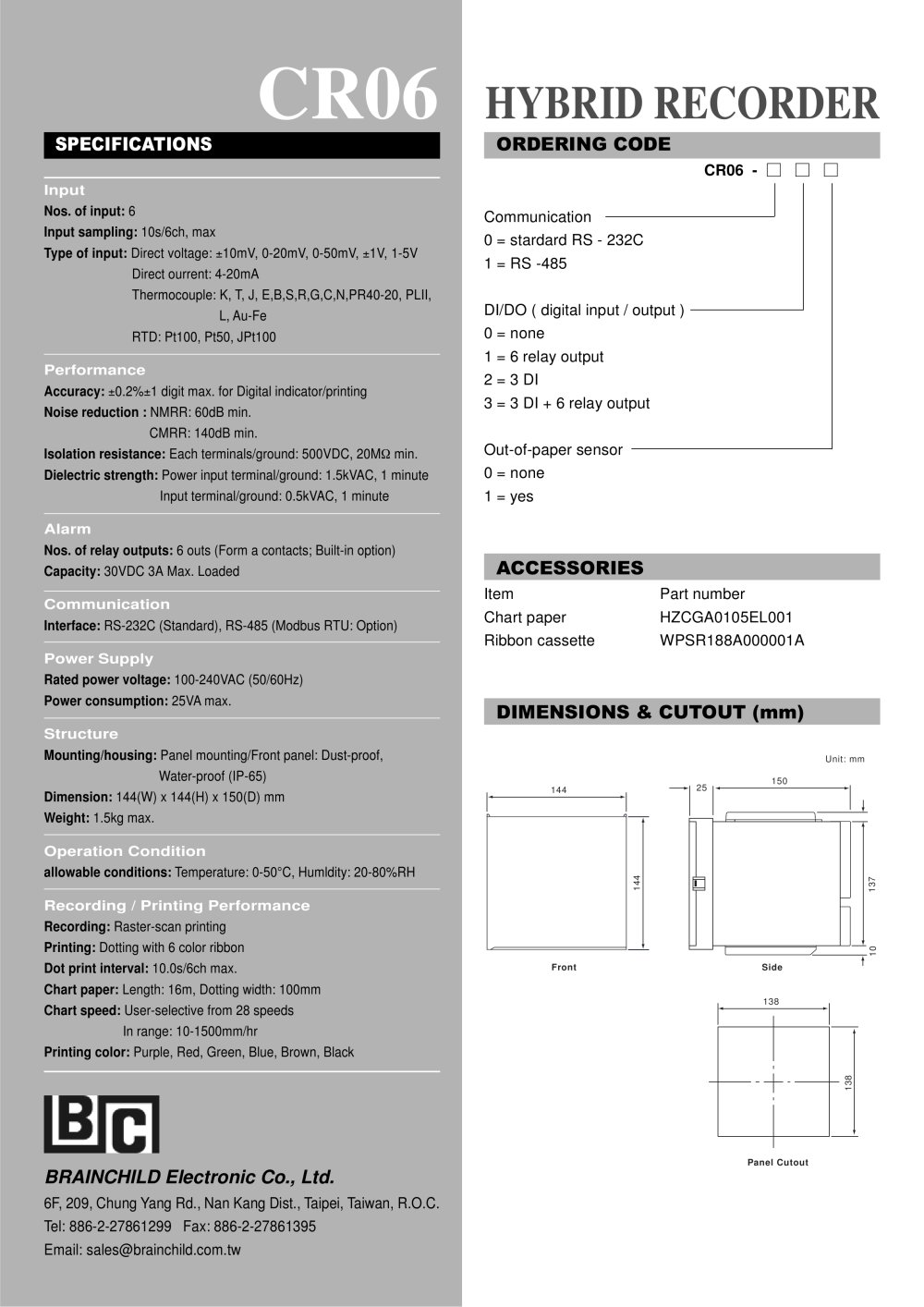

SPECIFICATIONS

CR06 Hybrid Recorder - 25130 CR06

ORDERING CODE

HYBRID RECORDER

CR06 - === ===

Input Nos. of input: 6

Communication0 = stardard RS - 232C 1 = RS -485DI/DO ( digital input / output )0 = none 1 = 6 relay output 2 = 3 DI 3 = 3 DI + 6 relay outputOut-of-paper sensor0 = none 1 = yes

Input sampling: 10s/6ch, max Type ofinput: Direct voltage: ± 10mV, 0-20mV, 0-50mV, ± 1V, 1-5VDirect ourrent: 4-20mAThermocouple: K, T, J, E,B,S,R,G,C,N,PR40-20, PLII, L, Au-FeRTD: Pt100, Pt50, JPt100 Performance Accuracy: ± 0.2% ± 1 digit max. for Digital indicator/printing Noise reduction : NMRR: 60dB min. CMRR: 140dB min. Isolation resistance: Each terminals/ground: 500VDC, 20M min. Dielectric strength: Power input terminal/ground: 1.5kVAC, 1 minute Input terminal/ground: 0.5kVAC, 1 minute Alarm Nos. of relay outputs: 6 outs (Form a contacts; Built-in option) Capacity: 30VDC 3A Max. Loaded

ACCESSORIES

Communication

ItemPart number Chart paperHZCGA0105EL001Ribbon cassetteWPSR188A000001A

Interface: RS-232C (Standard), RS-485 (Modbus RTU: Option) Power Supply Rated power voltage: 100-240VAC (50/60Hz) Power consumption: 25VA max.

DIMENSIONS & CUTOUT (mm)

Structure Mounting/housing: Panel mounting/Front panel: Dust-proof, Water-proof (IP-65)
15025 Dimension: 144(W) x 144(H) x 150(D) mm
144 Weight: 1.5kg max. Operation Condition allowable conditions: Temperature: 0-50 ° C, Humldity: 20-80%RH
144 13710 Recording / Printing Performance Recording: Raster-scan printing Printing: Dotting with 6 color ribbon Dot print interval: 10.0s/6ch max.
FrontSide Panel Cutout Chart paper: Length: 16m, Dotting width: 100mm Chart speed: User-selective from 28 speeds In range: 10-1500mm/hr
138 Unit: mm Printing color: Purple, Red, Green, Blue, Brown, Black
138

BRAINCHILD Electronic Co., Ltd.

6F, 209, Chung Yang Rd., Nan Kang Dist., Taipei, Taiwan, R.O.C.Tel: 886-2-27861299 Fax: 886-2-27861395 Email: sales@brainchild.com.tw
