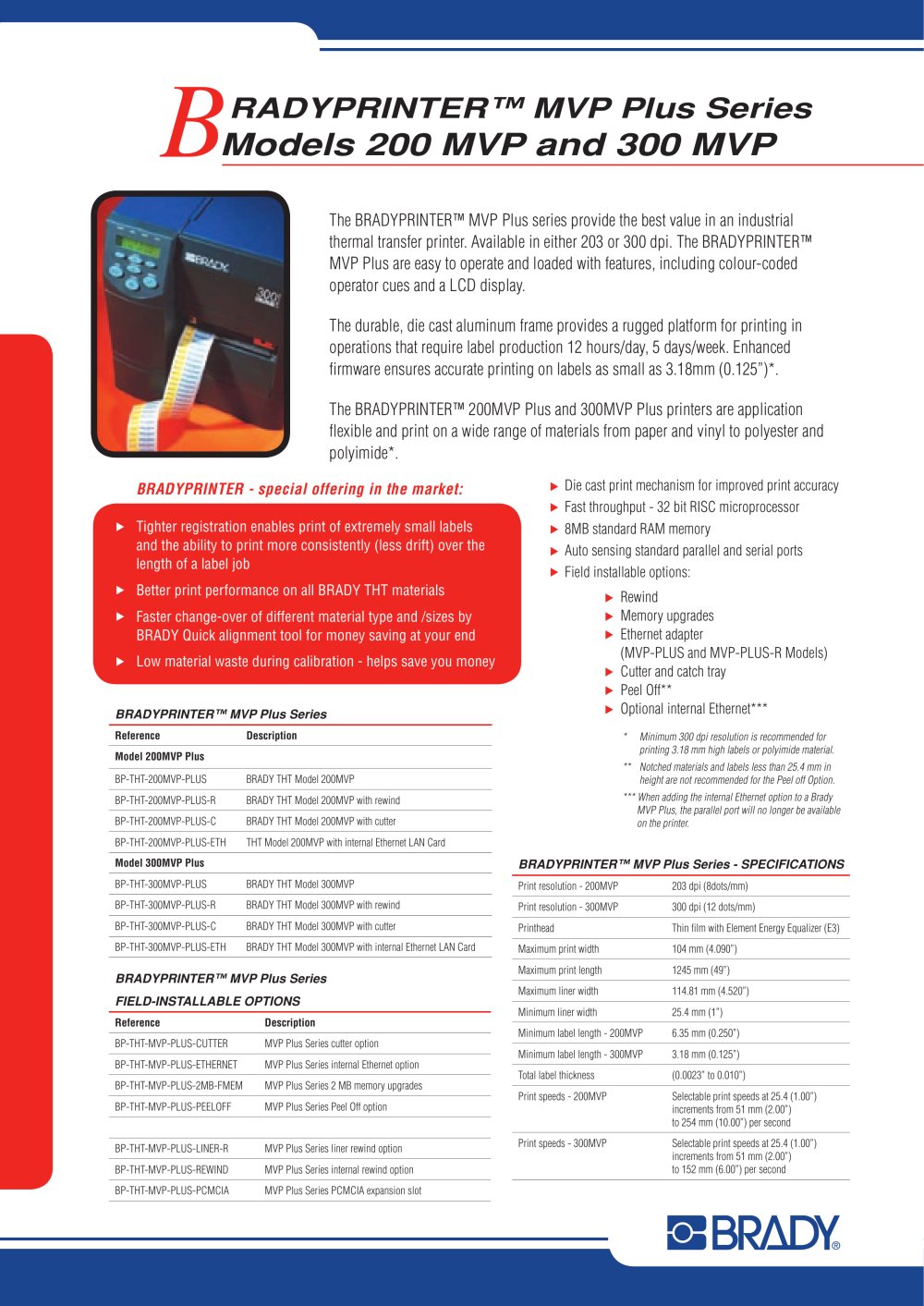

RADYPRINTER™ MVP Plus Series Models 200 MVP and 300 MVP

The BRADYPRINTER™ MVP Plus series provide the best value in an industrial thermal transfer printer. Available in either 203 or 300 dpi. The BRADYPRINTER™ MVP Plus are easy to operate and loaded with features, including colour-coded operator cues and a LCD display.

The durable, die cast aluminum frame provides a rugged platform for printing in operations that require label production 12 hours/day, 5 days/week. Enhanced firmware ensures accurate printing on labels as small as 3.18mm (0.125")*.

The BRADYPRINTER™ 200MVP Plus and 300MVP Plus printers are application flexible and print on a wide range of materials from paper and vinyl to polyester and polyimide*.

► Die cast print mechanism for improved print accuracy

► Fast throughput - 32 bit RISC microprocessor

► 8MB standard RAM memory

► Auto sensing standard parallel and serial ports

► Field Installable options:

► Rewind

► Memoryupgrades

► Ethernetadapter (MVP-PLUS and MVP-PLUS-R Models)

► Cutterandcatchtray

► Peel Off**

► Optional Internal Ethernet***

* Minimum 300 dpi resolution is recommended for printing 3.18 mm high labels or polyimide material.

" Notched materials and labels less than 25.4 mm in height arenot recommended forthePeelotl Option.

"' When adding the internal Ethernet option to a Brady MVP Plus, the parallel port will no longer be available on the printer.

BRADYPRINTER™ MVP Plus Series - SPECIFICATIONS

BRADYPRINTER - special offering in the market:

Tighter registration enables print of extremely small labels and the ability to print more consistently (less drift) over the length ofa label job

Better print performance on all BRADY THT materials

Faster change-over of different material type and /sizes by BRADY Quick alignment tool for money saving at your end

Low material waste during calibration - helps save you money

►

► ►

►

BRADYPRINTER™ MVP Plus Series

Reference

Description


	Model 200MVP Plus
	BP-THT-200MVP-PLUS	BRADY THT Model200MVP
	BP-THT-200MVP-PLUS-R	BRADY THT Model 200MVPwith rewind
	BP-THT-200MVP-PLUS-C	BRADY THT Model 200MVP with cutter
	BP-THT-200MVP-PLUS-ETH	THT Model 200MVPwlth Internal Ethernet LAN Card

Model 300MVP Plus


BP-THT-300MVP-PLUS	BRADY THT Model300MVP	Print resolution - 200MVP	203 dpi (8dots/mm)
BP-THT-300MVP-PLUS-R	BRADY THT Model 300MVPwlth rewind	Print resolution - 300MVP	300 dpi (12dots/mm)
BP-THT-300MVP-PLUS-C	BRADY THT Model 300MVP with cutter	Printhead	Thin film with Element Energy Equalizer (E3)
BP-THT-300MVP-PLUS-ETH	BRADY THT Model 300MVPwlth Internal Ethernet LAN Card	Maximum printwidth	104 mm (4.090")

1245 mm (49")

Maximum print length

BRADYPRINTER™ MVP Plus Series FIELD-INSTALLABLE OPTIONS


	Maximum Iiner width	114.81 mm(4.520")
	Minimum liner width	25.4mm(1")
	Minimum label length - 200MVP	6.35 mm (0.250")
	Minimum label length - 300MVP	3.18mm(0.125")
	Total label thickness	(0.0023" to 0.010")
	Print speeds - 200MVP	Selectable print speeds at 25.4 (1.00")
		increments from 51 mm (2.00")
		to 254 mm (10.00") per second


	Reference	Description
	BP-THT-MVP-PLUS-CUTTER	MVP PlusSeries cutter option
	BP-THT-MVP-PLUS-ETHERNET	MVP Plus Series internal Ethernet option
	BP-THT-MVP-PLUS-2MB-FMEM	MVP Plus Series 2 MB memory upgrades
	BP-THT-MVP-PLUS-PEELOFF	MVP PlusSeries Peel Off option

	BP-THT-MVP-PLUS-LINER-R	MVP Plus Series liner rewind option
	BP-THT-MVP-PLUS-REWIND	MVP Plus Series internal rewind option
	BP-THT-MVP-PLUS-PCMCIA	MVP Plus Series PCMCIA expansion slot

Selectable print speeds at 25.4 (1.00") increments from 51 mm (2.00") to 152 mm (6.00") persecond

Print speeds - 300MVP
