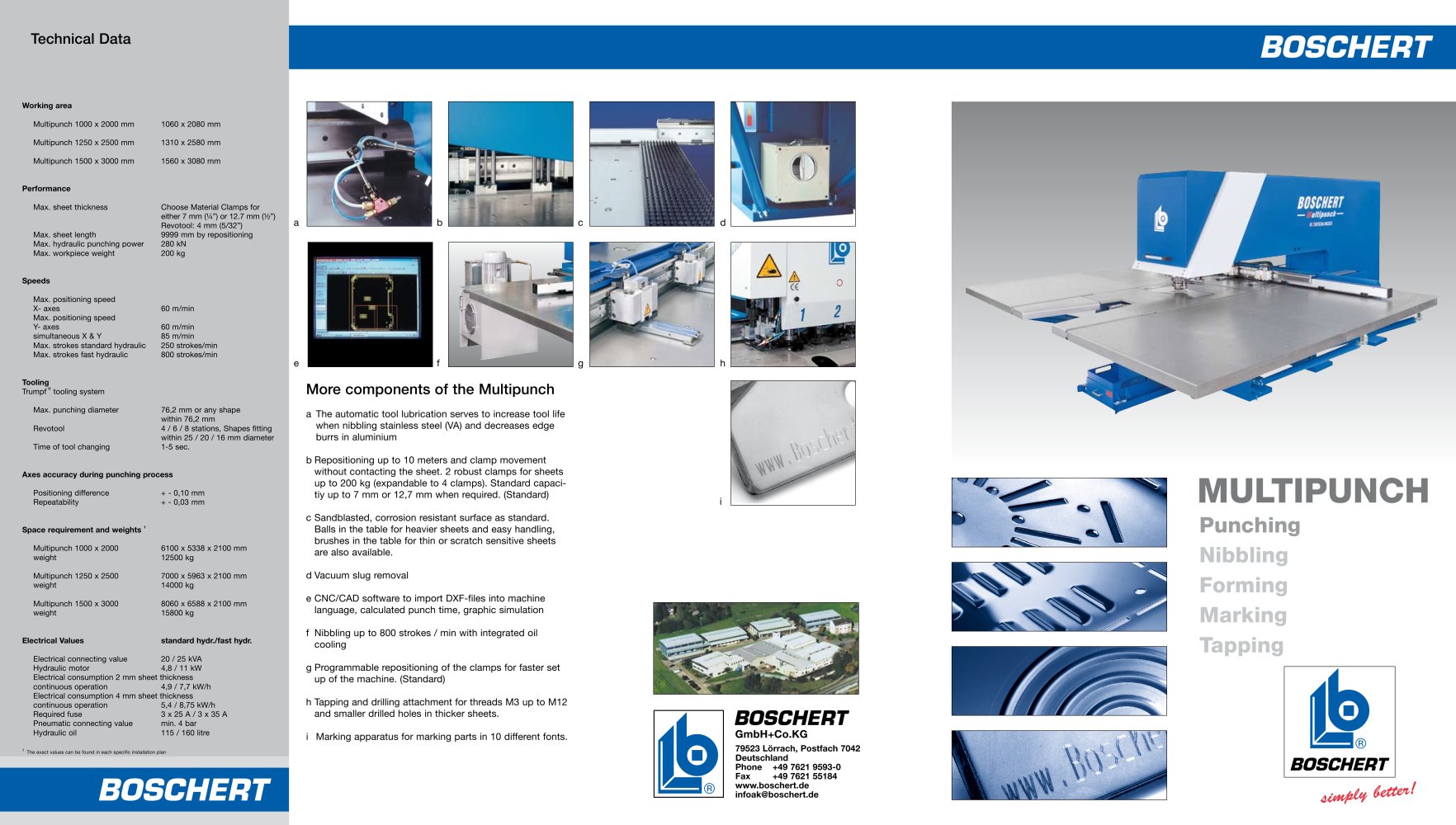

Technical Data

BUSCHERI

Working area

Multipunch 1000 x 2000 mm Multipunch 1250 x 2500 mm Multipunch 1500 x 3000 mm

Performance

Max. sheet thickness

1060 x 2080 mm 1310 x 2580 mm 1560 x 3080 mm

Choose Material Clamps for either 7 mm (%") or 12.7 mm (!/") Revotool: 4 mm (5/32") 9999 mm by repositioning 280 kN

200 kg

Max. sheet length

Max. hydraulic punching power

Max. workpiece weight

Speeds

Max. positioning speed X- axes

Max. positioning speed Y- axes

simultaneous X & Y

Max. strokes standard hydraulic

Max. strokes fast hydraulic

60 m/min

60 m/min 85 m/min 250 strokes/min 800 strokes/min

Tooling

Trumpf * tooling system Max. punching diameter Revotool

Time of tool changing

More component

76,2 mm or any shape within 76,2 mm

4 / 6 / 8 stations, Shapes fitting within 25 / 20 / 16 mm diameter 1-5 sec.

a The automatic tool lubrication serves to increase tool life when nibbling stainless steel (VA) and decreases edge burrs in aluminium

b Repositioning up to 10 meters and clamp movement without contacting the sheet. 2 robust clamps for sheets up to 200 kg (expandable to 4 clamps). Standard capaci-tiy up to 7 mm or 12,7 mm when required. (Standard)

c Sandblasted, corrosion resistant surface as standard. Balls in the table for heavier sheets and easy handling, brushes in the table for thin or scratch sensitive sheets

Axes accuracy during punching process

MULTIPUNCH

Punching

Nibbling

Forming

Marking

Tapping

Positioning difference Repeatability

+ - 0,10 mm + - 0,03 mm

Space requirement and weights ¹


Multipunch 1000 x 2000 weight	6100 x 5338 x 2100 mm 12500 kg	are also available.
Multipunch 1250 x 2500	7000 x 5963 x 2100 mm	d Vacuum slug removal
weight	14000 kg
Multipunch 1500 x 3000 weight	8060 x 6588 x 2100 mm 15800 kg	e CNC/CAD software to import DXF-files into machine language, calculated punch time, graphic simulation
Electrical Values	standard hydr./fast hydr.	f Nibbling up to 800 strokes / min with integrated oil cooling
Electrical connecting value	20 / 25 kVA
Hydraulic motor	4,8 / 11 kW	g Programmable repositioning of the clamps for faster set
Electrical consumption 2 mm sheet thickness continuous operation 4,9 / 7,7 kW/h		up of the machine. (Standard)
Electrical consumption 4 mm sheet thickness continuous operation 5,4 / 8,75 kW/h		h Tapping and drilling attachment for threads M3 up to M12
Required fuse	3 x 25 A / 3 x 35 A	and smaller drilled holes in thicker sheets.
Pneumatic connecting value	min. 4 bar
Hydraulic oil	115 / 160 litre	i Marking apparatus for marking parts in 10 different fonts.
¹ The exact values can be found in each specific installation plan

BOSCHERT

GmbH+Co.KG

79523 Lörrach, Postfach 7042 Deutschland

Phone +49 7621 9593-0 Fax +49 7621 55184 www.boschert.de infoak@boschert.de

BOSCHERT

uf fatte*¹'
