| COMPACT | COMPACT Rotation Index | |||||||||||||||||||||||||||||||||||||||||||

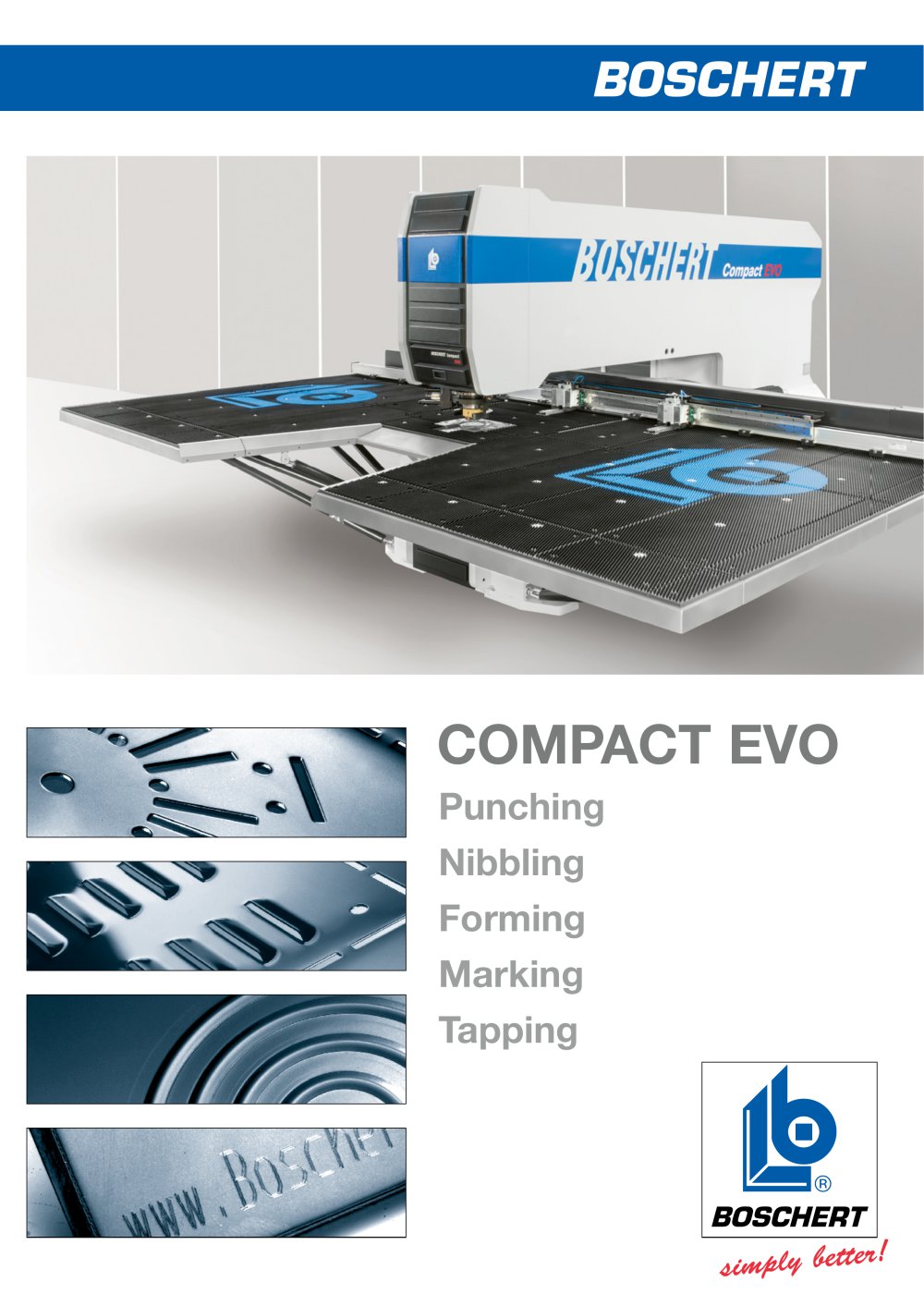

| The Compact punching machine from Boschert is the perfect machine for the first-time user of CNC punching technology. Advantages: user-friendly graphic programming, high quality with low cost, small floor space requirement. Heavy duty C-frame construction allows working of oversized sheets, by using turning and automatic repositioning function. | Stepless 360 degree rotation of all tools up to 105 mm diameter using brushless DC motors and pneumatic indexing of Revotools. The 7-way Revotool was especially constructed for this model. In addition to 6 tools with a diameter of 16 mm each, with a slitting tool of 5 x 30 mm it is possible to punch nearly every contour, allowing complete processing of the sheet without changing tools. | |||||||||||||||||||||||||||||||||||||||||||
| à | ||||||||||||||||||||||||||||||||||||||||||||
| — iqxl— | ||||||||||||||||||||||||||||||||||||||||||||
| É | ||||||||||||||||||||||||||||||||||||||||||||
| With more than 50 years experience we can guarantee the Boschert quality users worldwide have come to expect. | ||||||||||||||||||||||||||||||||||||||||||||
| Punching head rotation Solid construction with DC motor and measuring system | ||||||||||||||||||||||||||||||||||||||||||||
| punch | ||||||||||||||||||||||||||||||||||||||||||||
| adjustment rings | ||||||||||||||||||||||||||||||||||||||||||||
| Control panel 10,5" TFT colour screen, economically designed, it is adjustable and mounted on casters. Floppy disk drive, dual palm buttons, tool change position button, emergency-off. The powerful graphic and conversational software guarantees simple and fast programming. It is also available in a PC version. | Punching head rotation Index equipment and also stripper height adjustment | |||||||||||||||||||||||||||||||||||||||||||
| Electrical cabinet Open and easily surveyed panel includes digital control, cooling fan, transformers and control. | ||||||||||||||||||||||||||||||||||||||||||||
| PU stripper | ||||||||||||||||||||||||||||||||||||||||||||
| Trumpf ® standard tooling - easy handling - low cost - punch assembly mounts directly in the punch head without an adapter - long tool life - long regrind length | ||||||||||||||||||||||||||||||||||||||||||||
| Frame Solid welded steel construction guarantees the highest stability for punching sheets up to 12,7 mm thickness. | Robust construction Widely spaced ball screw and linear guides guarantee positioning accuracy and repeatability. | |||||||||||||||||||||||||||||||||||||||||||
| Industrial CPU with RS232 and Modem connection. As an option also available with expanded memory and USB or wireless LAN. | ||||||||||||||||||||||||||||||||||||||||||||
| Special 6-station to work on copper bar up to 10 mm | ||||||||||||||||||||||||||||||||||||||||||||
| die size I | ||||||||||||||||||||||||||||||||||||||||||||
| 1 | ||||||||||||||||||||||||||||||||||||||||||||
| BOSCHERT | ||||||||||||||||||||||||||||||||||||||||||||
| Q @ Q | ||||||||||||||||||||||||||||||||||||||||||||
