| BOONTON | ||||||||||||

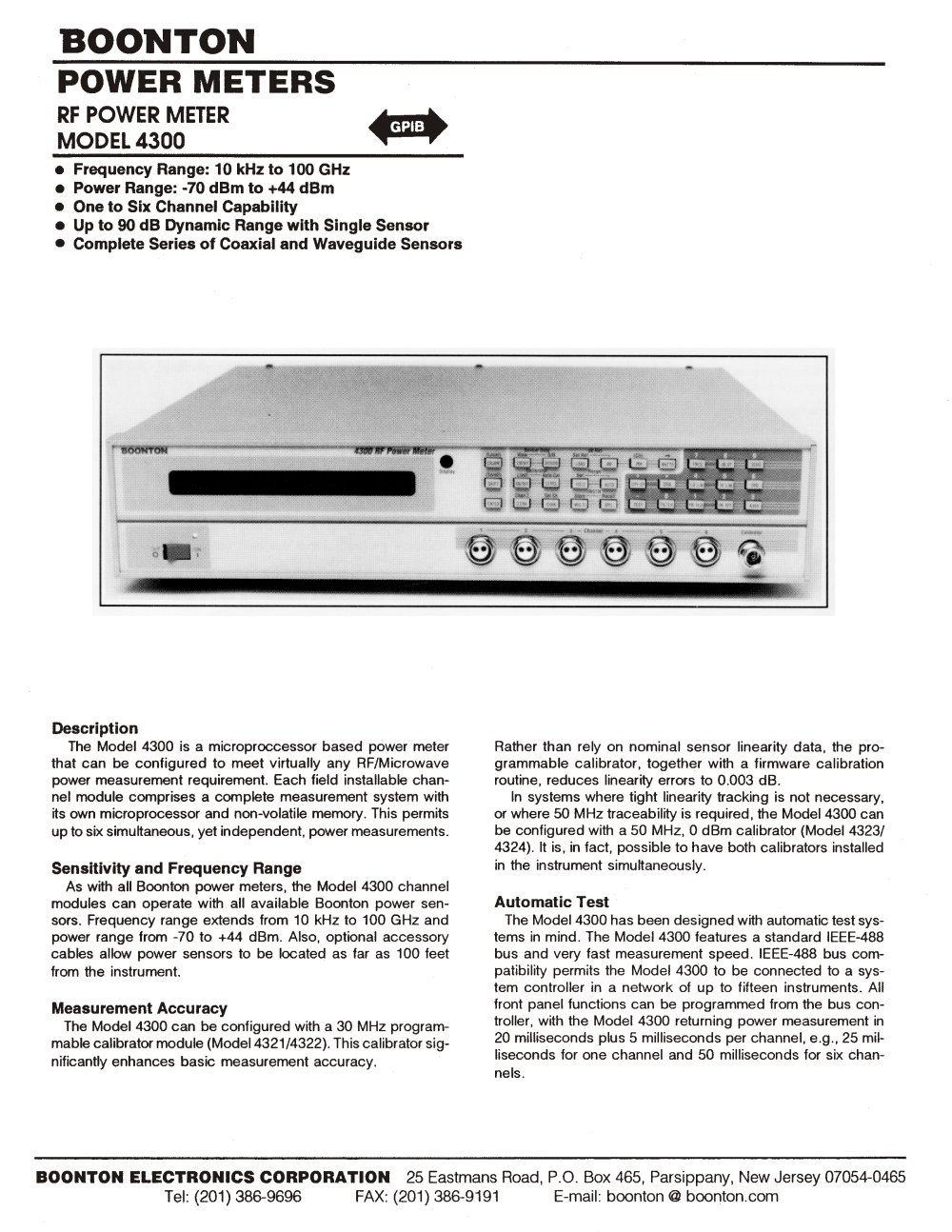

| POWER METERS RF POWER METER MODEL 4300_ • Frequency Range: 10 kHz to 100 GHz • Power Range: -70 dBm to +44 dBm • One to Six Channel Capability • Up to 90 dB Dynamic Range with Single Sensor • Complete Series of Coaxial and Waveguide Sensors | ||||||||||||
| Description The Model 4300 is a microproccessor based power meter that can be configured to meet virtually any RF/Microwave power measurement requirement. Each field installable channel module comprises a complete measurement system with its own microprocessor and non-volatile memory. This permits up to six simultaneous, yet independent, power measurements. Sensitivity and Frequency Range As with all Boonton power meters, the Model 4300 channel modules can operate with all available Boonton power sensors. Frequency range extends from 10 kHz to 100 GHz and power range from -70 to +44 dBm. Also, optional accessory cables allow power sensors to be located as far as 100 feet from the instrument. Measurement Accuracy The Model 4300 can be configured with a 30 MHz programmable calibrator module (Model 4321/4322). This calibrator significantly enhances basic measurement accuracy. | ||||||||||||
| Rather than rely on nominal sensor linearity data, the programmable calibrator, together with a firmware calibration routine, reduces linearity errors to 0.003 dB. In systems where tight linearity tracking is not necessary, or where 50 MHz traceability is required, the Model 4300 can be configured with a 50 MHz, 0 dBm calibrator (Model 4323/ 4324). It is, in fact, possible to have both calibrators installed in the instrument simultaneously. Automatic Test The Model 4300 has been designed with automatic test systems in mind. The Model 4300 features a standard IEEE-488 bus and very fast measurement speed. IEEE-488 bus compatibility permits the Model 4300 to be connected to a system controller in a network of up to fifteen instruments. All front panel functions can be programmed from the bus controller, with the Model 4300 returning power measurement in 20 milliseconds plus 5 milliseconds per channel, e.g., 25 milliseconds for one channel and 50 milliseconds for six channels. | ||||||||||||
| BOONTON ELECTRONICS CORPORATION 25 Eastmans Road, P.O. Box 465, Parsippany, New Jersey 07054-0465 Tel; (201) 386-9696 FAX: (201) 386-9191 E-mail: boonton @ boonton.com | ||||||||||||
