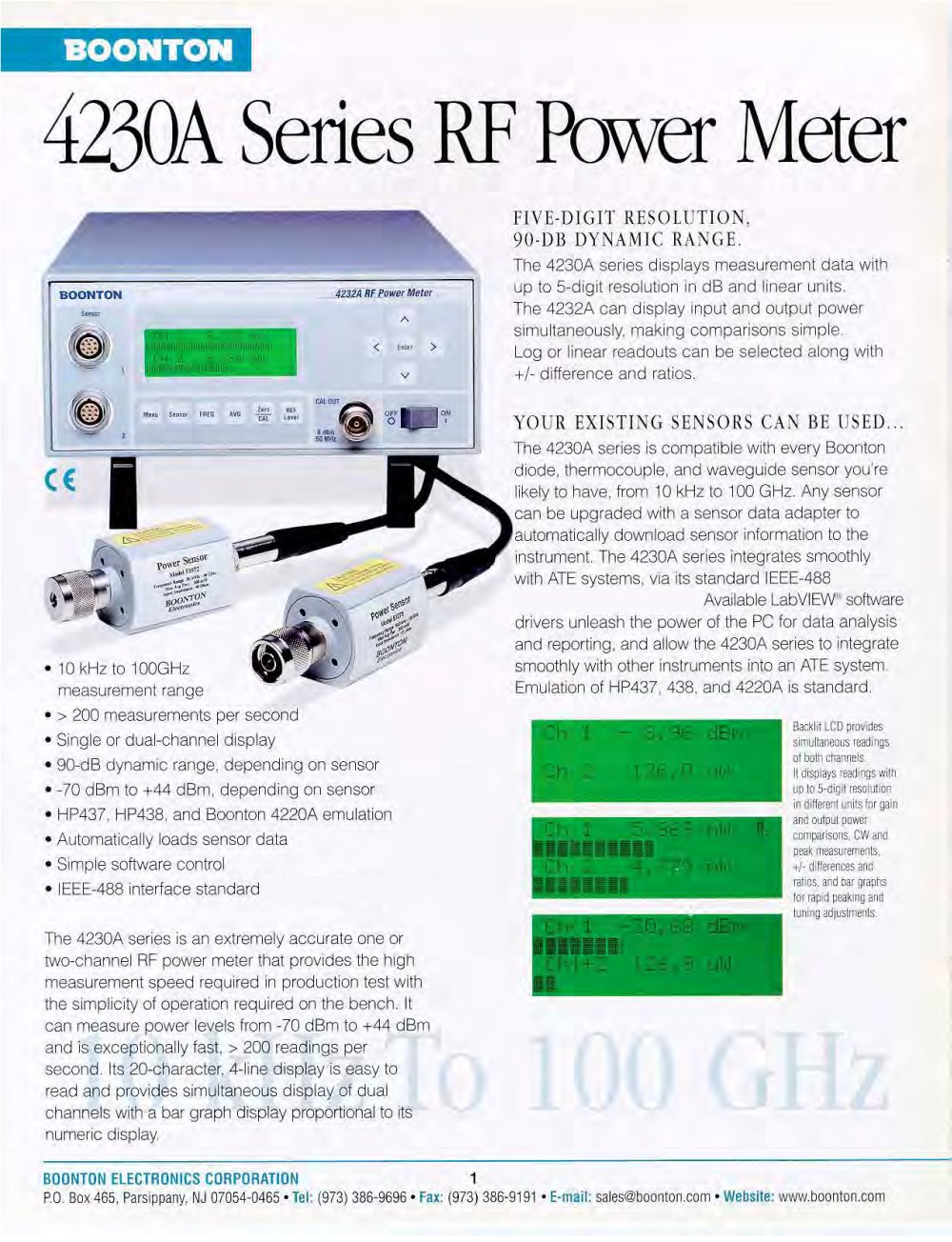

423Q/V Series RF Power Meter

riVE-DIGIT RESOLUTION, 90-DB DYNAMIC RANGE.

The 4230A series displays measurement data with up to 5-digit resolution in dB and. linear units. The 4232A can display input and output power simultaneously, making comparisons simple. Log- or linear readouts can be selected along with +/- difference and ratios-

YOUR EXISTING SENSORS CAN BE USED,..

The 4230A series i-s compatible with every Boonton diode, thermocouple, and waveguide sensor you're, kely to have_: from 10 kHz to 100 GHz. Any sensor can be upgraded with a sensor data adapter to automatically download, sensor information to the instrument; The 4230A series integrates smoothly with ATE systems; via its standard IEEE-483

Available LabVIEW* software drivers unleash the power of the PC for data analysis and reporting., and allow the.4230A series to integrate smoothly with other instruments into an ATE system. Emulation of HP437. 438, and 4220A is standard,

kHz to 100GHz measurement rang$

• > 20Q measurements per second

• Single or dual-channel display

• 90-dB dynamic range, depending on sensor

• -70 dBm to +44 dBm, depending on sensor

• HP437. HP438, and B.aontdn 4220A emulation

• Automatically loads sensor data

• Simple software-control

• IEEE-48S interface standard

The 4230A series- Is an extremely accurate one or two-channel RF power meter that provides the high ■measurement speed required in production test with the simplicity of operation required on the. bench. IL can measure power levels from -70 dBm to +44 dBm and is. exceptionally fast, > 200 readings per second. Its 20-character. 4-line display is easy to read and provides simultaneous display of dual channels with a bar graph-"display proportional to its numeric display.

Bacfelit LCD provides: simultaneous readings of bolh channels l| displays isadmgs witti un la 5-Efirjit resolution irrriifferem ,iKls for ija-n ami output swwsr comparisons. CW arid peak fiieESu remets. +/-ïliltereric&s and ratrçs/and bargrapte lor rapid peaking anil tuning adj usinants..
