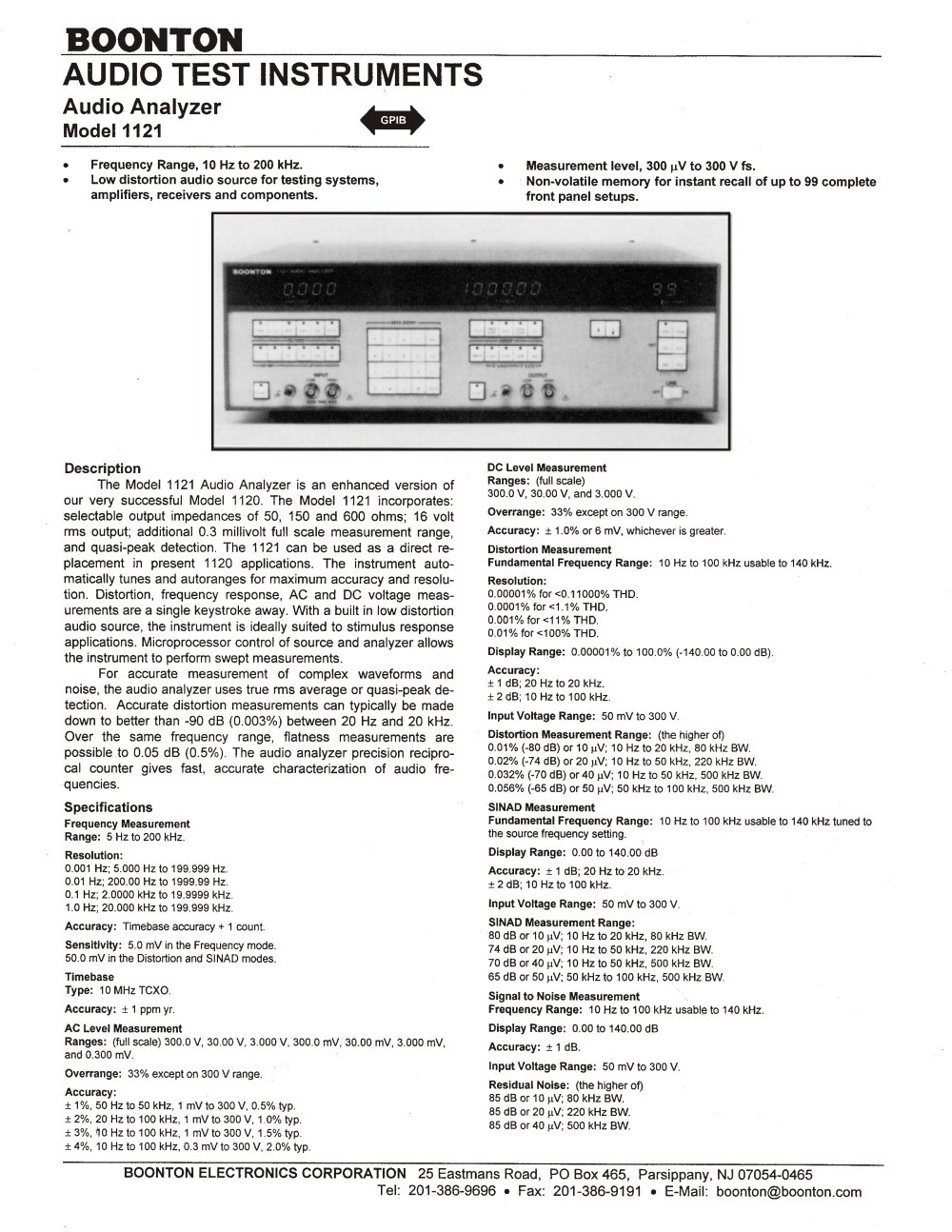

1121 Audio Analyzer - BOONTON - #1

BOONTON_

AUDIO TEST INSTRUMENTS

The Model 1121 Audio Analyzer is an enhanced version of our very successful Model 1120. The Model 1121 incorporates: selectable output impedances of 50, 150 and 600 ohms; 16 volt rms output; additional 0.3 millivolt full scale measurement range, and quasi-peak detection. The 1121 can be used as a direct re­placement in present 1120 applications. The instrument auto­matically tunes and autoranges for maximum accuracy and resolu­tion. Distortion, frequency response, AC and DC voltage meas­urements are a single keystroke away. With a built in low distortion audio source, the instrument is ideally suited to stimulus response applications. Microprocessor control of source and analyzer allows the instrument to perform swept measurements.

For accurate measurement of complex waveforms and noise, the audio analyzer uses true rms average or quasi-peak de­tection. Accurate distortion measurements can typically be made down to better than -90 dB (0.003%) between 20 Hz and 20 kHz. Over the same frequency range, flatness measurements are possible to 0.05 dB (0.5%). The audio analyzer precision recipro­cal counter gives fast, accurate characterization of audio fre­quencies.

Specifications Frequency Measurement Range: 5 Hz to 200 kHz.

0.001 Hz; 5.000 Hz to 199.999 Hz 0.01 Hz; 200.00 Hz to 1999.99 Hz. 0.1 Hz; 2.0000 kHz to 19.9999 kHz 1.0 Hz; 20.000 kHz to 199.999 kHz

Accuracy: Timebase accuracy + 1 count.

Sensitivity: 5.0 mV in the Frequency mode. 50.0 mV in the Distortion and SINAD modes.

Type: 10MHZTCXO. Accuracy: + 1 ppm yr. AC Level Measurement

Ranges: (full scale) 300.0 V, 30.00 V, 3.000 V, 300.0 mV, 30.00 mV, 3.000 mV, and 0.300 mV.

Overrange: 33% except on 300 V range. Accuracy:

± 1%, 50 Hz to 50 kHz, 1 mV to 300 V, 0.5% typ. ± 2%, 20 Hz to 100 kHz, 1 mV to 300 V, 1.0% typ. ± 3%, П 0 Hz to 100 kHz, 1 mV to 300 V, 1.5% typ. ± 4%, 10 Hz to 100 kHz, 0.3 mV to 300 V, 2.0% typ.

Ranges: (full scale)

300.0 V, 30.00 V, and 3.000 V.

Overrange: 33% except on 300 V range.

Accuracy: ± 1.0% or 6 mV, whichever is greater.

Fundamental Frequency Range: 10 Hz to 100 kHz usable to 140 kHz. Resolution:

0.00001% for <0.11000% THD. 0.0001% for <1.1%THD. 0.001 % for <11 % THD. 0.01% for <100% THD.

Display Range: 0.00001% to 100.0% (-140.00 to 0.00 dB). Accuracy:

+ 1 dB; 20 Hz to 20 kHz. ±2dB; 10Hzto100 kHz.

Input Voltage Range: 50 mV to 300 V

Distortion Measurement Range: (the higher of) 0.01% (-80 dB) or 10 uV; 10 Hz to 20 kHz, 80 kHz BW. 0.02% (-74 dB) or 20 nV; 10 Hz to 50 kHz, 220 kHz BW. 0.032% (-70 dB) or 40 uV; 10 Hz to 50 kHz, 500 kHz BW. 0.056% (-65 dB) or 50 uV; 50 kHz to 100 kHz, 500 kHz BW.

Fundamental Frequency Range: 10 Hz to 100 kHz usable to 140 kHz tuned to the source frequency setting.

Display Range: 0.00 to 140.00 dB

Accuracy: ± 1 dB; 20 Hz to 20 kHz. ±2dB; 10 Hz to 100 kHz.

Input Voltage Range: 50 mV to 300 V.

80 dB or 10 uV; 10 Hz to 20 kHz, 80 kHz BW. 74 dB or 20 uV; 10 Hz to 50 kHz, 220 kHz BW. 70 dB or 40 uV; 10 Hz to 50 kHz, 500 kHz BW. 65 dB or 50 uV; 50 kHz to 100 kHz, 500 kHz BW.

Frequency Range: 10 Hz to 100 kHz usable to 140 kHz. Display Range: 0.00 to 140.00 dB Accuracy: ± 1 dB.

Input Voltage Range: 50 mV to 300 V.

Residual Noise: (the higher of) 85 dB or10nV; 80 kHz BW. 85 dB or 20 uV; 220 kHz BW. 85 dB or 40 uV; 500 kHz BW.

BOONTON ELECTRONICS CORPORATION 25 Eastmans Road, PO Box 465, Parsippany, NJ 07054-0465

Tel: 201-386-9696 • Fax: 201-386-9191 • E-Mail: boonton@boonton.com
