J^Jew Focus"

' A Division of Bookham

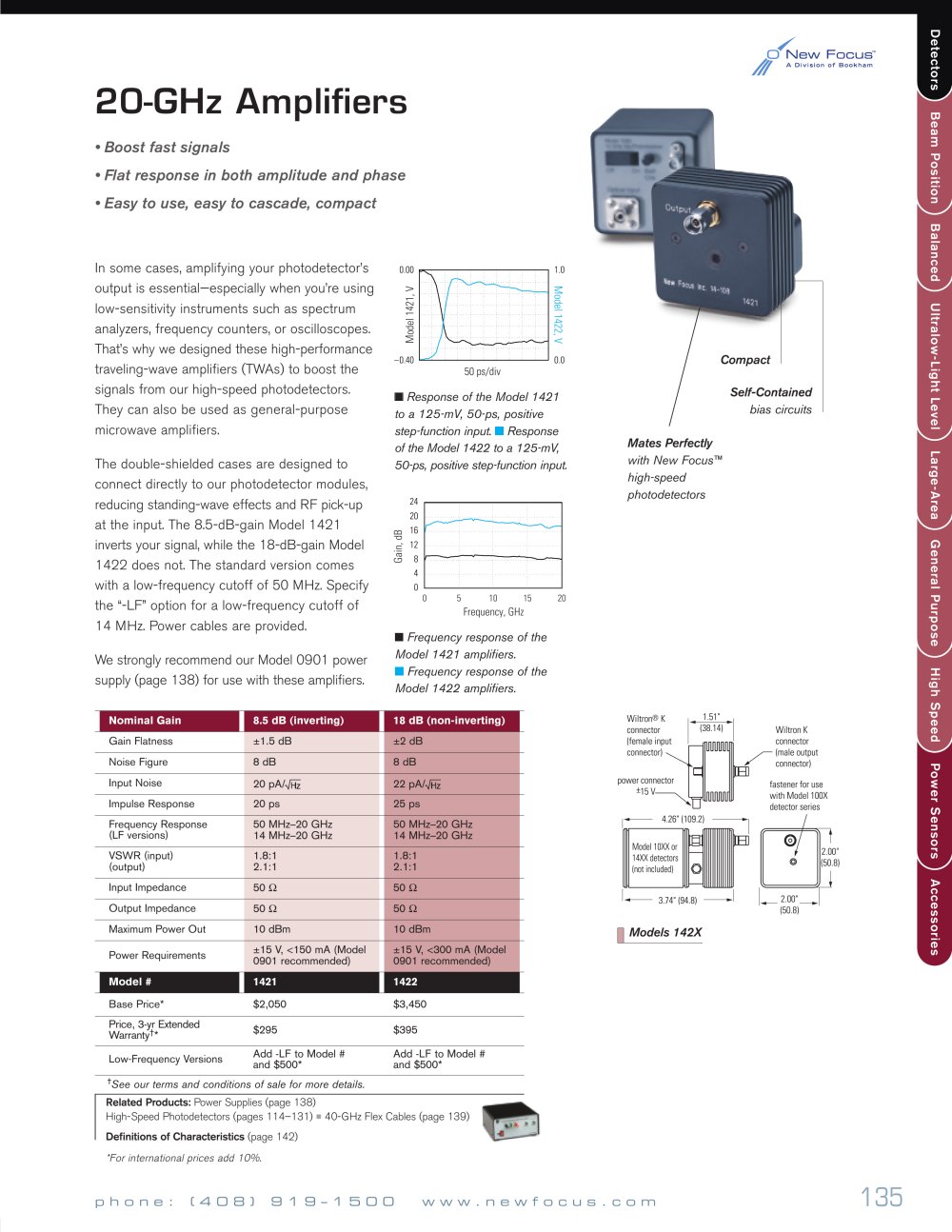

20-GHz Amplifiers

• Boost fast signals

• Flat response in both amplitude and phase

• Easy to use, easy to cascade, compact

In some cases, amplifying your photodetector's output is essential—especially when you're using low-sensitivity instruments such as spectrum analyzers, frequency counters, or oscilloscopes. That's why we designed these high-performance traveling-wave amplifiers (TWAs) to boost the signals from our high-speed photodetectors. They can also be used as general-purpose microwave amplifiers.

The double-shielded cases are designed to connect directly to our photodetector modules, reducing standing-wave effects and RF pick-up at the input. The 8.5-dB-gain Model 1421 inverts your signal, while the 18-dB-gain Model 1422 does not. The standard version comes with a low-frequency cutoff of 50 MHz. Specify the "-LF" option for a low-frequency cutoff of 14 MHz. Power cables are provided.

We strongly recommend our Model 0901 power supply (page 138) for use with these amplifiers.

0.00

■

Model

1421,

Model

1422,

—

.....

—■

-0.40

0 0

50 ps/div

■ Response of the Model 1421 to a 125-mV, 50-ps, positive step-function input. ■ Response

of the Model 1422 to a 125-mV,

50-ps, positive step-function input.

Mates Perfectly

with New Focus™

high-speed

photodetectors

0 5 10 15

Frequency, GHz

■ Frequency response of the Model 1421 amplifiers.

■ Frequency response of the Model 1422 amplifiers.


]_	Nominal Gain	I 8.5 dB (inverting)	I 18 dB (non-inverting)	Г
Gain Flatness		±1.5 dB	±2 dB
Noise Figure		8dB	8dB
Input Noise		20 pAA/Hl	22 pAA/HÏ
Impulse Response		20 ps	25 ps
Frequency Response (LF versions)		50 MHz-20 GHz 14 MHz-20 GHz	50 MHz-20 GHz 14 MHz-20 GHz
VSWR (input) (output)		1.8:1 2.1:1	1.8:1 2.1:1
Input Impedance		50 a	50 a
Output Impedance		50 a	50 a
Maximum Power Out		10 dBm	10 dBm
Power Requirements		±15 V, <150 mA (Model 0901 recommended)	±15 V, <300 mA (Model 0901 recommended)
	Model #	1421	1422
Base Price* $2,050 $3,450 WWL^Cr^eea_n³ty^yt^EXtended $295 $395 _llz w Add -LF to Model # Add -LF to Model # ^{Low-Frequency} ^Versions $500 and $500*

1 51"

Wiltron® K connector (female input connector)

(38 14)

Нрппшш!


	Wiltron K
	connector
	— (male output
	connector)
	fastener for use
	with Model 100X
	detector series
	/
	©/	1
	/	2 00"
	0	(50 8)
		!

power connector +15 V

«Hfl

4 26" (109 2)


	ModellOXXor	Ш
	14XX detectors
	(not included)	о
		—

2 00"_ (50 8)

- 3 74" (94 8) -

I Models 142X

⁺See our terms and conditions of sale for more details.

Related Products: Power Supplies (page 138)

High-Speed Photodetectors (pages 114-131) ■ 40-GHz Flex Cables (page 139) Definitions of Characteristics (page 142) *For international prices add 10%.

135
