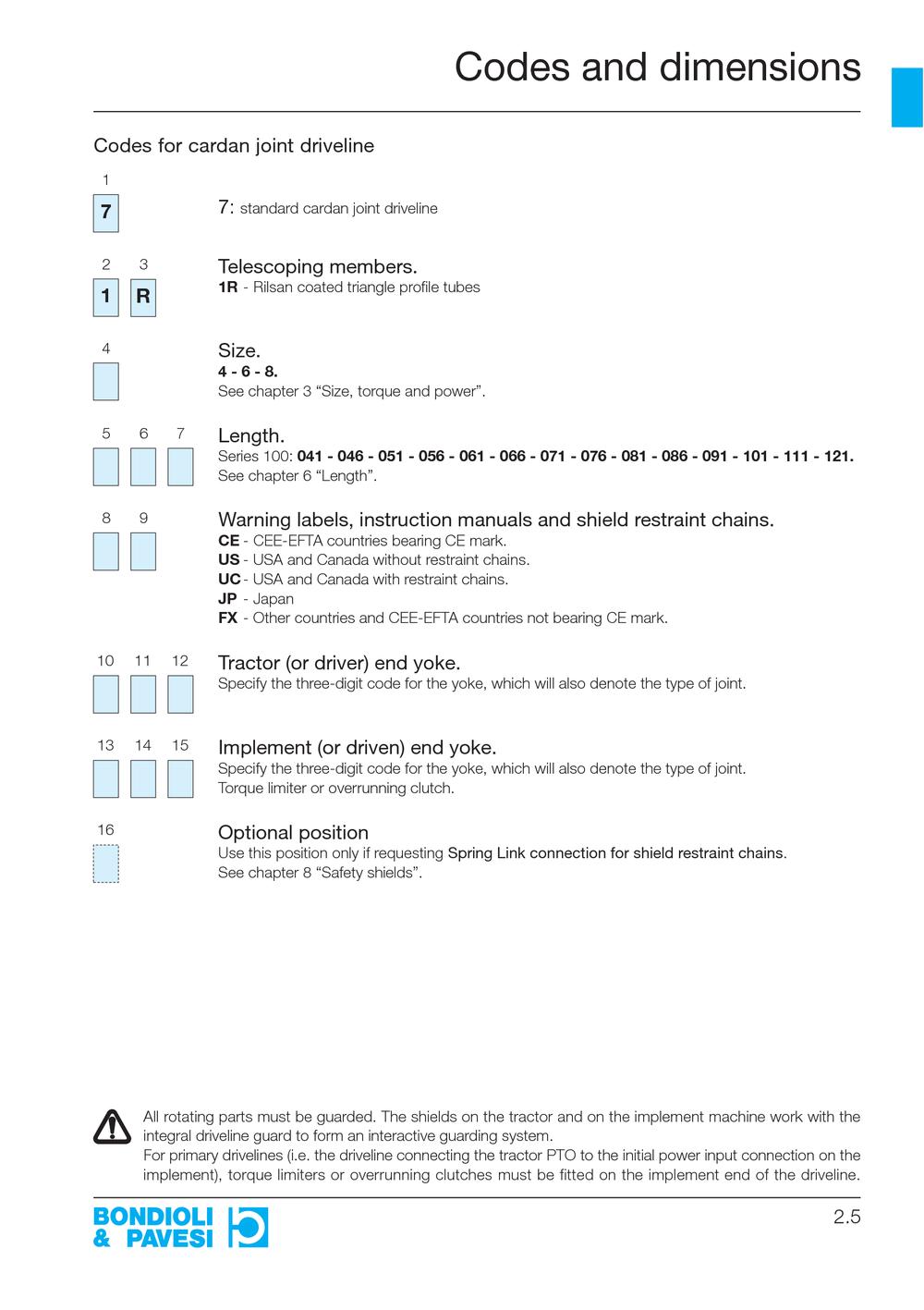

Codes and dimensions

Codes for cardan joint driveline

1

7 7 :

standard cardan joint driveline

Telescoping members. 1R

1R - Rilsan coated triangle profile tubes23

Size.

4 - 6 - 8. See chapter 3 “Size, torque and power”.4

Length.

Series 100: 041 - 046 - 051 - 056 - 061 - 066 - 071 - 076 - 081 - 086 - 091 - 101 - 111 - 121. See chapter 6 “Length”.567

Warning labels, instruction manuals and shield restraint chains.

CE - CEE-EFTA countries bearing CE mark. US - USA and Canada without restraint chains. UC - USA and Canada with restraint chains. JP - Japan FX - Other countries and CEE-EFTA countries not bearing CE mark.89

Tractor (or driver) end yoke.

Specify the three-digit code for the yoke, which will also denote the type of joint.101112

Implement (or driven) end yoke.

Specify the three-digit code for the yoke, which will also denote the type of joint.Torque limiter or overrunning clutch.131415 16

Optional position

Use this position only if requesting Spring Link connection for shield restraint chains .See chapter 8 “Safety shields”. All rotating parts must be guarded. The shields on the tractor and on the implement machine work with theintegral driveline guard to form an interactive guarding system.For primary drivelines (i.e. the driveline connecting the tractor PTO to the initial power input connection on theimplement), torque limiters or overrunning clutches must be fitted on the implement end of the driveline.

2.5
