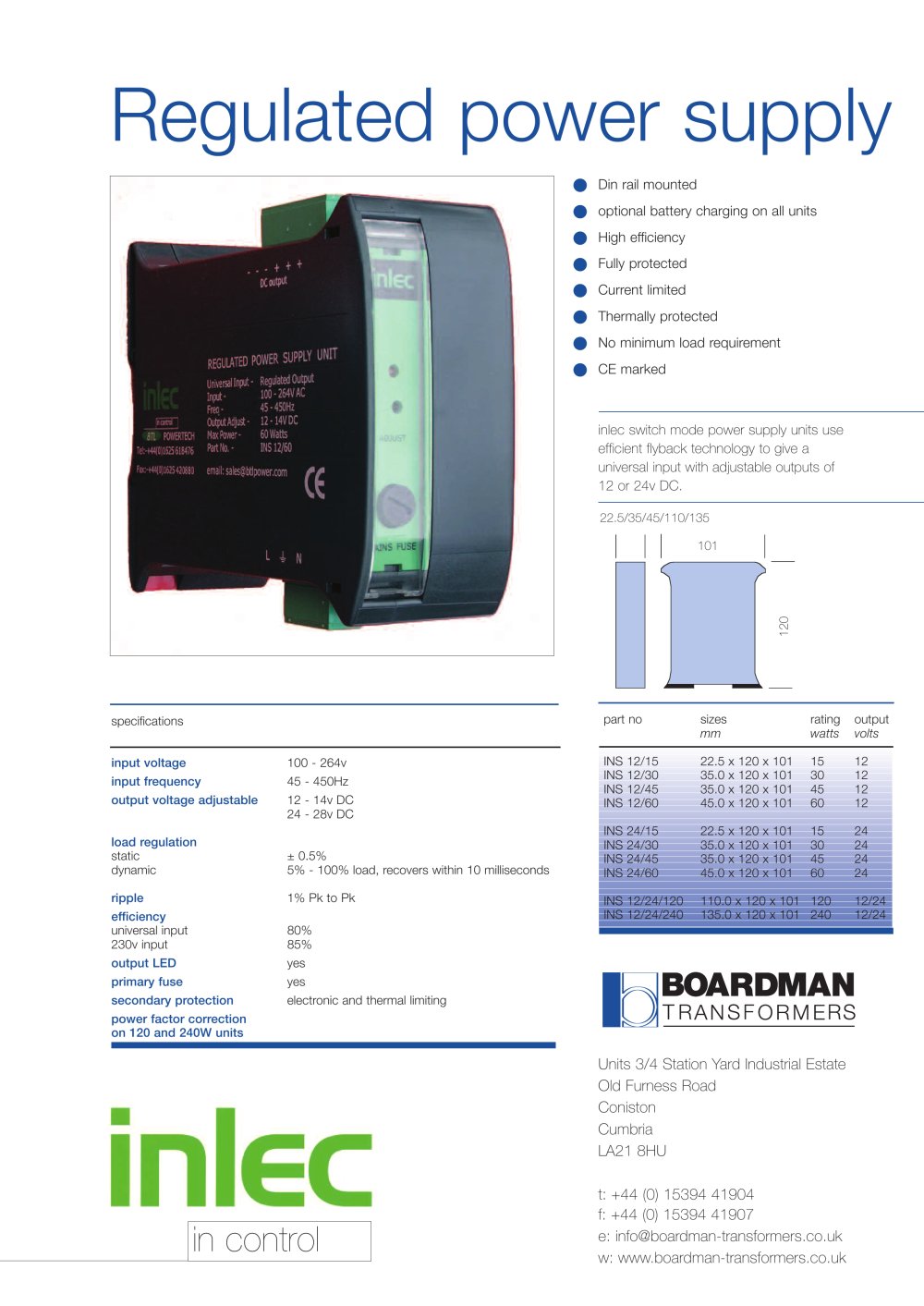

Regulated power supply

• Din rail mounted

• optional battery charging on all units

• High efficiency

• Fully protected

• Current limited

• Thermally protected

• No minimum load requirement

• CE marked

inlec switch mode power supply units use efficient flyback technology to give a universal input with adjustable outputs of 12 or 24v DC.

22.5/35/45/110/135


specifications			part no	sizes mm	rating watts	output volts
input voltage	100	- 264v	INS 12/15	22.5 x 120 x 101	15	12
input frequency	45 -	450Hz	INS 12/30 INS 12/45	35.0 x 120 x 101 35.0 x 120 x 101	30 45	12 12
output voltage adjustable	12 -	14v DC	INS 12/60	45.0 x 120 x 101	60	12
	24 -	28v DC
load regulation			INS 24/15	22.5 x 120 x 101	15	24
load regulation			INS 24/30	35.0 x 120 x 101	30	24
static	± 0.5%		INS 24/45	35.0 x 120 x 101	45	24
dynamic	5% -	100% load, recovers within 10 milliseconds	INS 24/60	45.0 x 120 x 101	60	24
ripple	1% Pk to Pk		INS 12/24/120	110.0 x 120 x 101	120	12/24
efficiency			INS 12/24/240	135.0 x 120 x 101	240	12/24
universal input	80%
230v input	85%
output LED	yes

BOARDMAN

^TRANSFORMERS

Units 3/4 Station Yard Industrial Estate

Old Furness Road

Coniston

Cumbria

LA21 8HU

t: +44 (0) 15394 41904

f: +44 (0) 15394 41907

e: info@boardman-transformers.co.uk

w: www.boardman-transformers.co.uk

primary fuse

secondary protection

power factor correction on 120 and 240W units

yes

electronic and thermal limiting

inlec

in control
