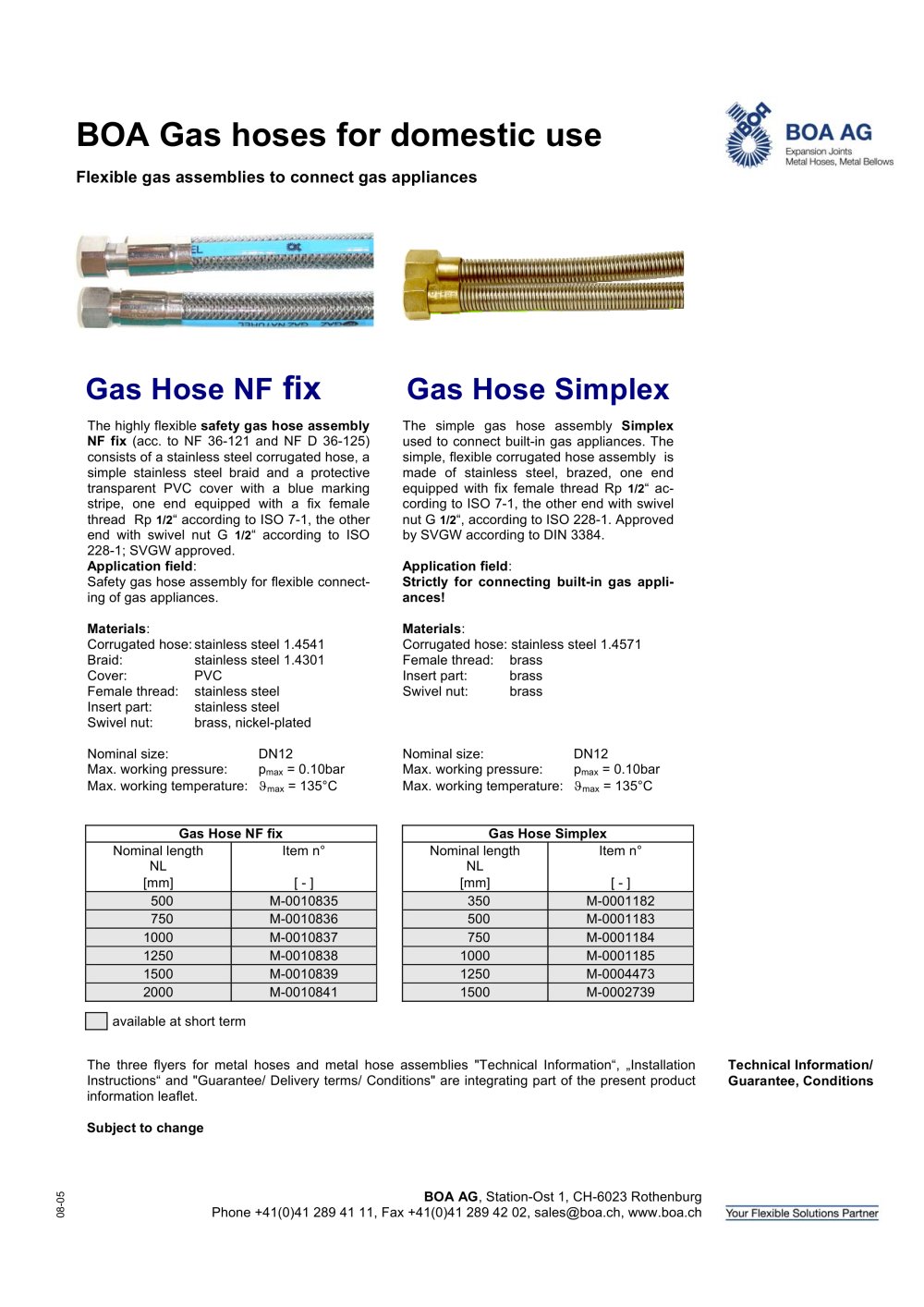

Gas Hose NF fix Gas Hose Simplex Gas Hose NF fix Gas Hose Simplex Nominal length NL [mm] Item n° [ - ] Nominal length NL [mm] Item n° [ - ] 500 M-0010835 350 M-0001182 750 M-0010836 500 M-0001183 1000 M-0010837 750 M-0001184 1250 M-0010838 1000 M-0001185 1500 M-0010839 1250 M-0004473 2000 M-0010841 1500 M-0002739 available at short term BOA Gas hoses for domestic use Flexible gas assemblies to connect gas appliances The highly flexible safety gas hose assembly NF fix (acc. to NF 36-121 and NF D 36-125) consists of a stainless steel corrugated hose, a simple stainless steel braid and a protective transparent PVC cover with a blue marking stripe, one end equipped with a fix female thread Rp 1/2“ according to ISO 7-1, the other end with swivel nut G 1/2“ according to ISO 228-1; SVGW approved. Application field: Safety gas hose assembly for flexible connecting of gas appliances. Materials: Corrugated hose: stainless steel 1.4541 Braid: stainless steel 1.4301 Cover: PVC Female thread: stainless steel Insert part: stainless steel Swivel nut: brass, nickel-plated Nominal size: DN12 Max. working pressure: pmax = 0.10bar Max. working temperature: max = 135°C The simple gas hose assembly Simplex used to connect built-in gas appliances. The simple, flexible corrugated hose assembly is made of stainless steel, brazed, one end equipped with fix female thread Rp 1/2“ according to ISO 7-1, the other end with swivel nut G 1/2“, according to ISO 228-1. Approved by SVGW according to DIN 3384. Application field: Strictly for connecting built-in gas appliances! Materials: Corrugated hose: stainless steel 1.4571 Female thread: brass Insert part: brass Swivel nut: brass Nominal size: DN12 Max. working pressure: pmax = 0.10bar Max. working temperature: max = 135°C Technical Information/ Guarantee, Conditions The three flyers for metal hoses and metal hose assemblies "Technical Information“, „Installation Instructions“ and "Guarantee/ Delivery terms/ Conditions" are integrating part of the present product information leaflet. Subject to change BOA AG, Station-Ost 1, CH-6023 Rothenburg Phone +41(0)41 289 41 11, Fax +41(0)41 289 42 02, sales@boa.ch, www.boa.ch 08-05
