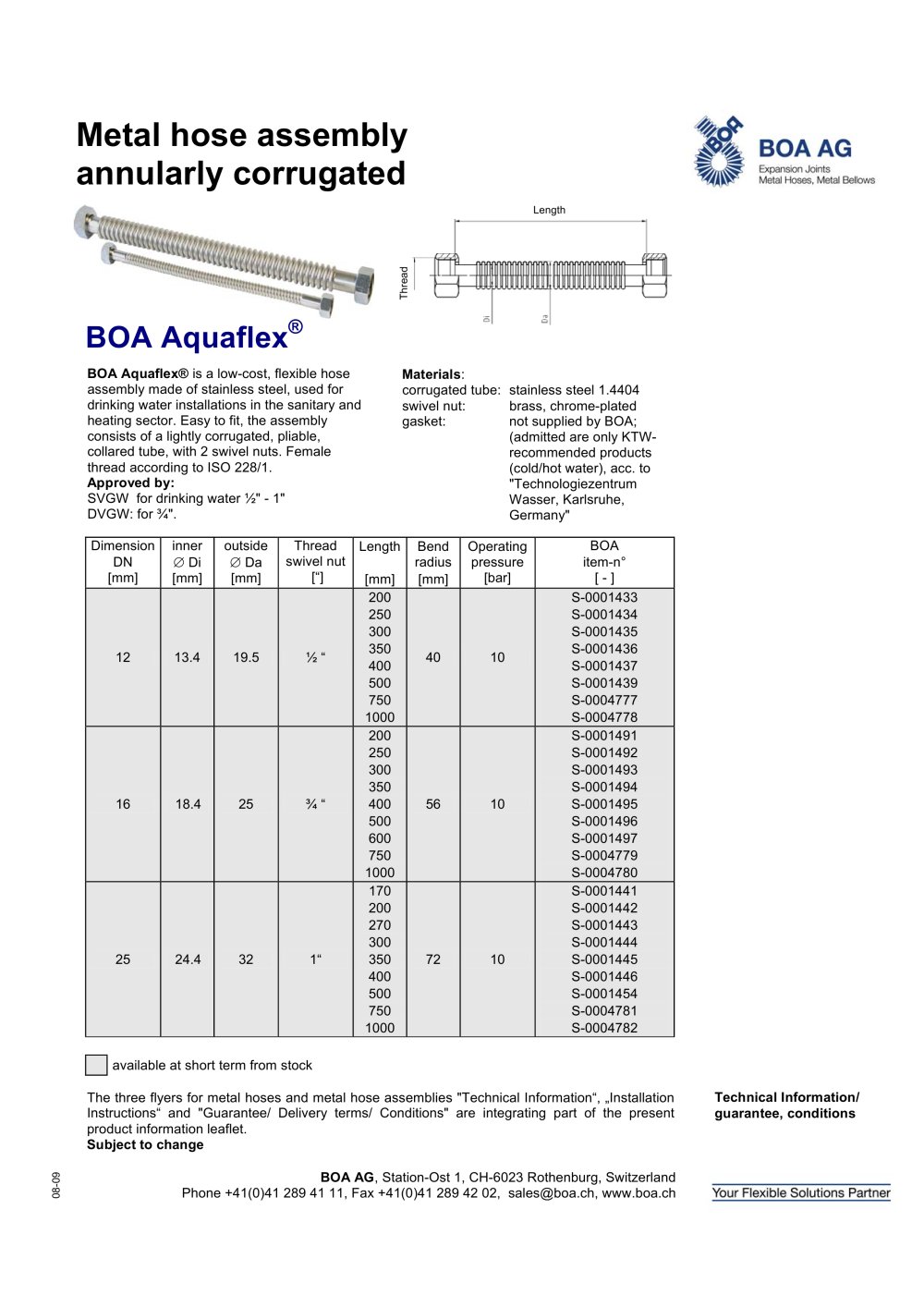

BOA Aquaflex® Dimension DN [mm] inner Di [mm] outside Da [mm] Thread swivel nut [“] Length [mm] Bend radius [mm] Operating pressure [bar] BOA item-n° [ - ] 12 13.4 19.5 ½ “ 200 250 300 350 400 500 750 1000 40 10 S-0001433 S-0001434 S-0001435 S-0001436 S-0001437 S-0001439 S-0004777 S-0004778 16 18.4 25 ¾ “ 200 250 300 350 400 500 600 750 1000 56 10 S-0001491 S-0001492 S-0001493 S-0001494 S-0001495 S-0001496 S-0001497 S-0004779 S-0004780 25 24.4 32 1“ 170 200 270 300 350 400 500 750 1000 72 10 S-0001441 S-0001442 S-0001443 S-0001444 S-0001445 S-0001446 S-0001454 S-0004781 S-0004782 available at short term from stock Metal hose assembly annularly corrugated BOA Aquaflex® is a low-cost, flexible hose assembly made of stainless steel, used for drinking water installations in the sanitary and heating sector. Easy to fit, the assembly consists of a lightly corrugated, pliable, collared tube, with 2 swivel nuts. Female thread according to ISO 228/1. Approved by: SVGW for drinking water ½" - 1" DVGW: for ¾". Materials: corrugated tube: stainless steel 1.4404 swivel nut: brass, chrome-plated gasket: not supplied by BOA; (admitted are only KTWrecommended products (cold/hot water), acc. to "Technologiezentrum Wasser, Karlsruhe, Germany" BOA AG, Station-Ost 1, CH-6023 Rothenburg, Switzerland Phone +41(0)41 289 41 11, Fax +41(0)41 289 42 02, sales@boa.ch, www.boa.ch 08-09 The three flyers for metal hoses and metal hose assemblies "Technical Information“, „Installation Instructions“ and "Guarantee/ Delivery terms/ Conditions" are integrating part of the present product information leaflet. Subject to change Technical Information/ guarantee, conditions Length Thread
