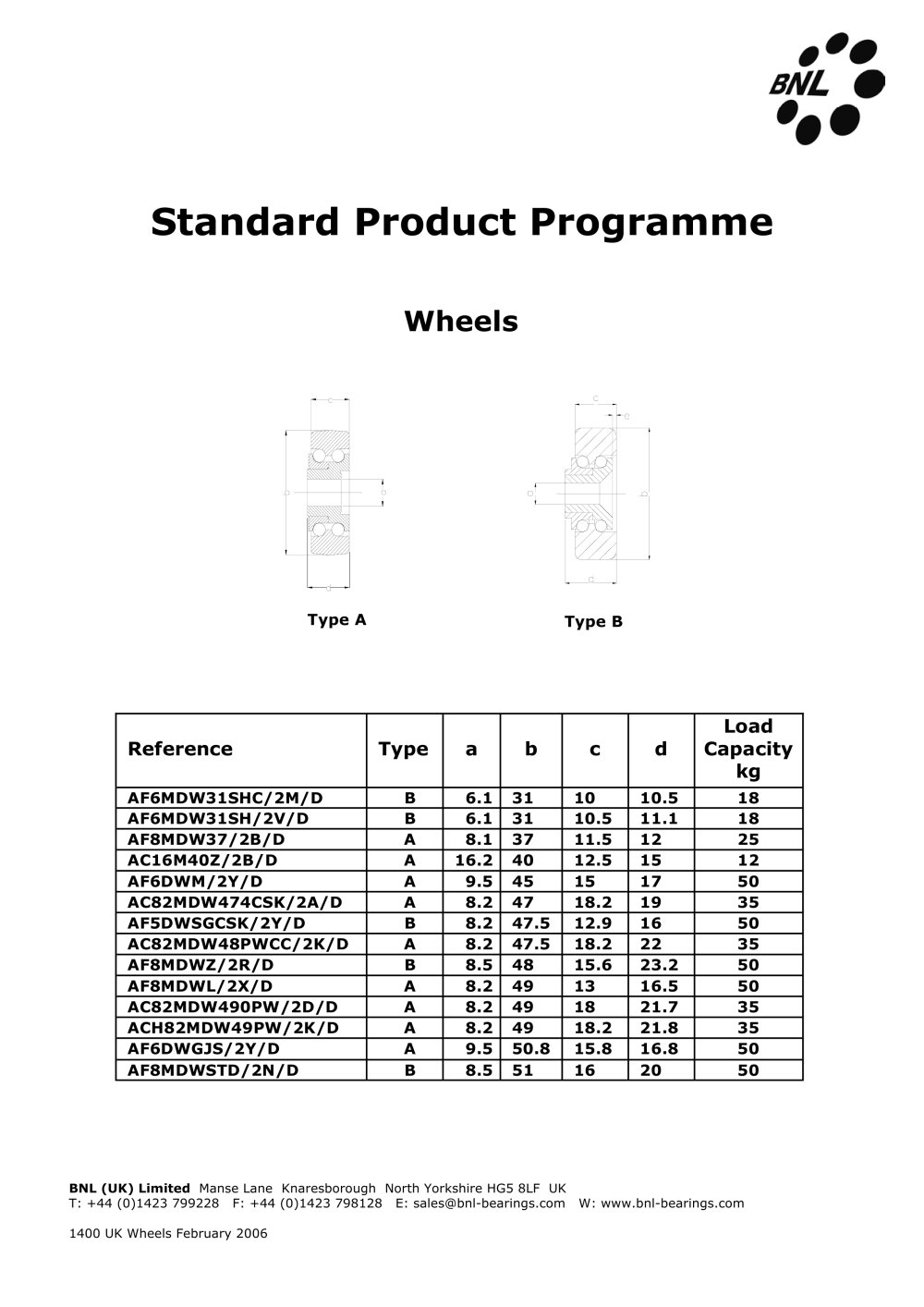

Standard Product Programme

Wheels

Type A Type B

Reference Type a b c d Load Capacity kg

AF6MDW31SHC/2M/D B 6.1 31 10 10.5 18 AF6MDW31SH/2V/D B 6.1 31 10.5 11.1 18 AF8MDW37/2B/D A 8.1 37 11.5 12 25 AC16M40Z/2B/D A 16.2 40 12.5 15 12 AF6DWM/2Y/D A 9.5 45 15 17 50 AC82MDW474CSK/2A/D A 8.2 47 18.2 19 35 AF5DWSGCSK/2Y/D B 8.2 47.5 12.9 16 50 AC82MDW48PWCC/2K/D A 8.2 47.5 18.2 22 35 AF8MDWZ/2R/D B 8.5 48 15.6 23.2 50 AF8MDWL/2X/D A 8.2 49 13 16.5 50 AC82MDW490PW/2D/D A 8.2 49 18 21.7 35 ACH82MDW49PW/2K/D A 8.2 49 18.2 21.8 35 AF6DWGJS/2Y/D A 9.5 50.8 15.8 16.8 50 AF8MDWSTD/2N/D B 8.5 51 16 20 50
BNL (UK) Limited Manse Lane Knaresborough North Yorkshire HG5 8LF UK T: +44 (0)1423 799228 F: +44 (0)1423 798128 E: sales@bnl-bearings.com W: www.bnl-bearings.com 1400 UK Wheels February 2006
