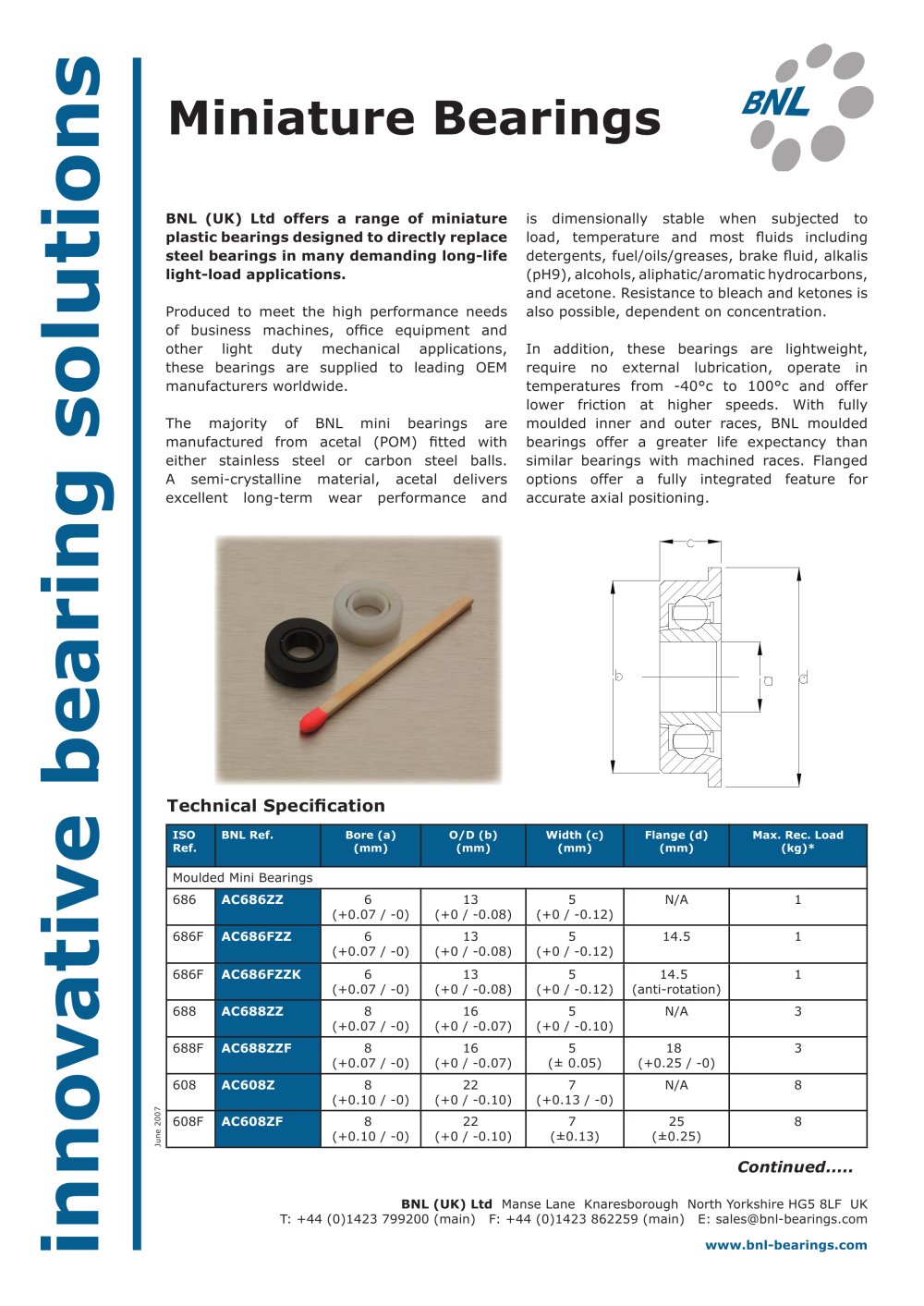

Produced to meet the high performance needs of business machines, offi ce equipment and other light duty mechanical applications, these manufacturers of bearings are supplied to leading OEM manufacturers worldwide.The majority of BNL mini bearings are manufactured from acetal (POM) fi tted with either stainless steel or carbon steel beads. A semi-crystalline material, acetal delivers excellent long-term wear performance and is dimensionally stable when subjected to load, temperature and most fl uids including detergents, fuel/oils/greases, brake fl uid, alkalis (pH9), alcohols, aliphatic/aromatic hydrocarbons, and acetone. Resistance to bleach and ketones is also possible, dependent on concentration. In addition, these bearings are lightweight, require no external lubrication, operate in temperatures from -40°c to 100°c and offer lower friction at higher speeds. With fully moulded inner and outer races, BNL moulded bearings offer a greater life expectancy than similar bearings with machined races. Flanged options offer a fully integrated feature for accurate axial positioning. BNL (UK) Ltd offers a range of miniature thermoplastic bearings designed to directly replace steel bearings in many demanding long-life light-load applications. Technical Specifi cation ISO Ref.BNL Ref. Bore (a) (mm)O/D (b) (mm)Width (c)(mm)Flange (d)(mm)Max. Rec. Load (kg)* Moulded Mini Bearings686 AC686ZZ 6(+0.07 / -0)13(+0 / -0.08)5(+0 / -0.12)N/A1686F AC686FZZ 6(+0.07 / -0)13(+0 / -0.08)5(+0 / -0.12)14.51686F AC686FZZK 6(+0.07 / -0)13(+0 / -0.08)5(+0 / -0.12)14.5(anti-rotation)1688 AC688ZZ 8(+0.07 / -0)16(+0 / -0.07)5(+0 / -0.10)N/A3688F AC688ZZF 8(+0.07 / -0)16(+0 / -0.07)5(± 0.05)18(+0.25 / -0)3608 AC608Z 8(+0.10 / -0)22(+0 / -0.10)7(+0.13 / -0)N/A8608F AC608ZF 8(+0.10 / -0)22(+0 / -0.10)7(±0.13)25(±0.25)8 June 2007 Continued..... BNL (UK) Ltd Manse Lane Knaresborough North Yorkshire HG5 8LF UKT: +44 (0)1423 799200 (main) F: +44 (0)1423 862259 (main) E: sales@bnl-bearings.com innovative bearing solutions www.bnl-bearings.com
|
