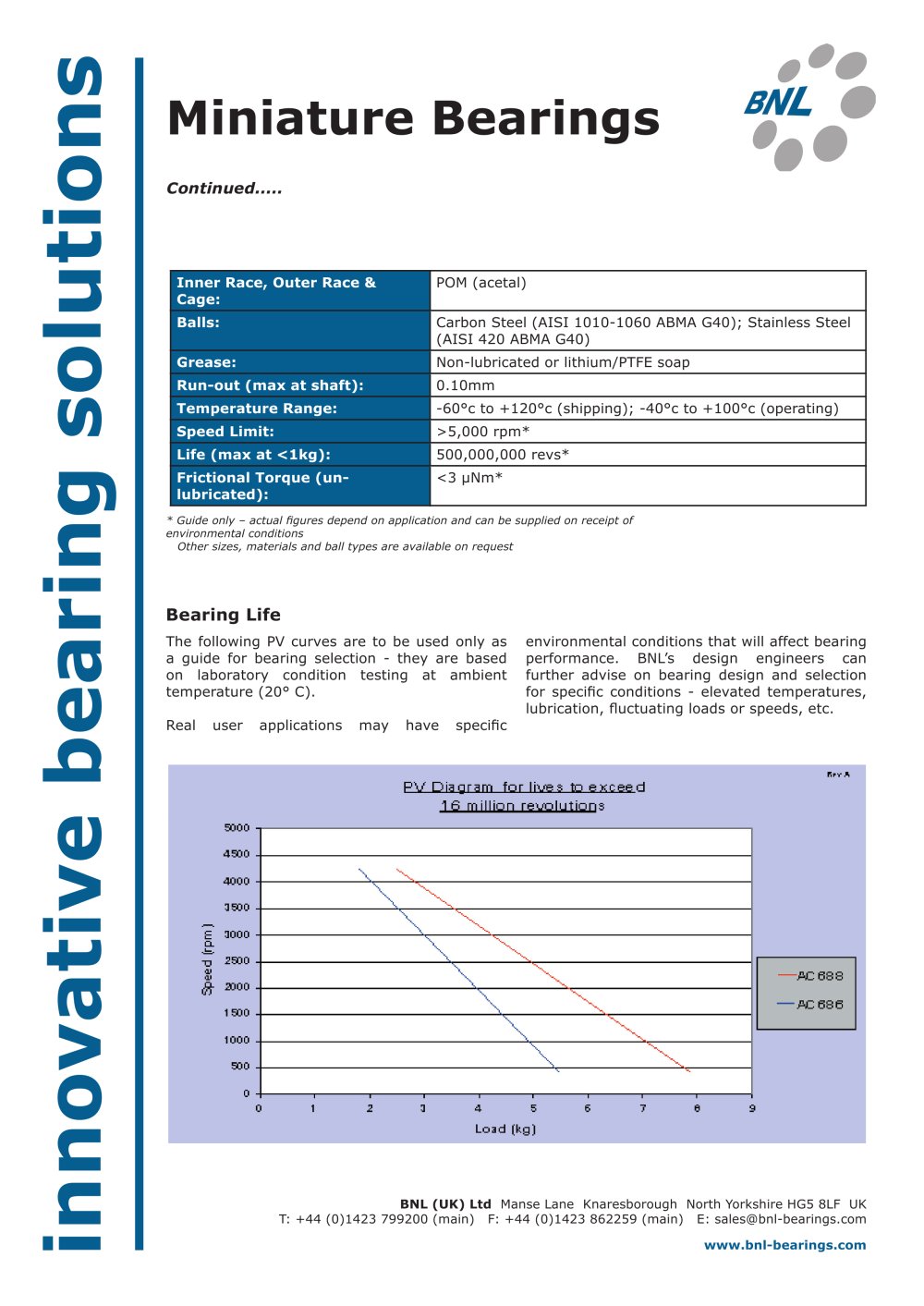

Miniature Bearings

Continued.....

Inner Race, Outer Race & Cage: POM (acetal) Balls: Carbon Steel (AISI 1010-1060 ABMA G40); Stainless Steel (AISI 420 ABMA G40) Grease: Non-lubricated or lithium/PTFE soap Run-out (max at shaft): 0.10mm Temperature Range: -60°c to +120°c (shipping); -40°c to +100°c (operating) Speed Limit: >5,000 rpm* Life (max at <1kg): 500,000,000 revs* Frictional Torque (un- lubricated): <3 µNm*
* Guide only – actual fi gures depend on application and can be supplied on receipt of environmental conditions Other sizes, materials and ball types are available on request

Bearing Life

The following PV curves are to be used only as a guide for bearing selection - they are based on laboratory condition testing at ambient temperature (20° C). Real user applications may have specifi c environmental conditions that will affect bearing performance. BNL’s design engineers can further advise on bearing design and selection for specifi c conditions - elevated temperatures, lubrication, fl uctuating loads or speeds, etc.
BNL (UK) Ltd Manse Lane Knaresborough North Yorkshire HG5 8LF UKT: +44 (0)1423 799200 (main) F: +44 (0)1423 862259 (main) E: sales@bnl-bearings.com innovative bearing solutions www.bnl-bearings.com
