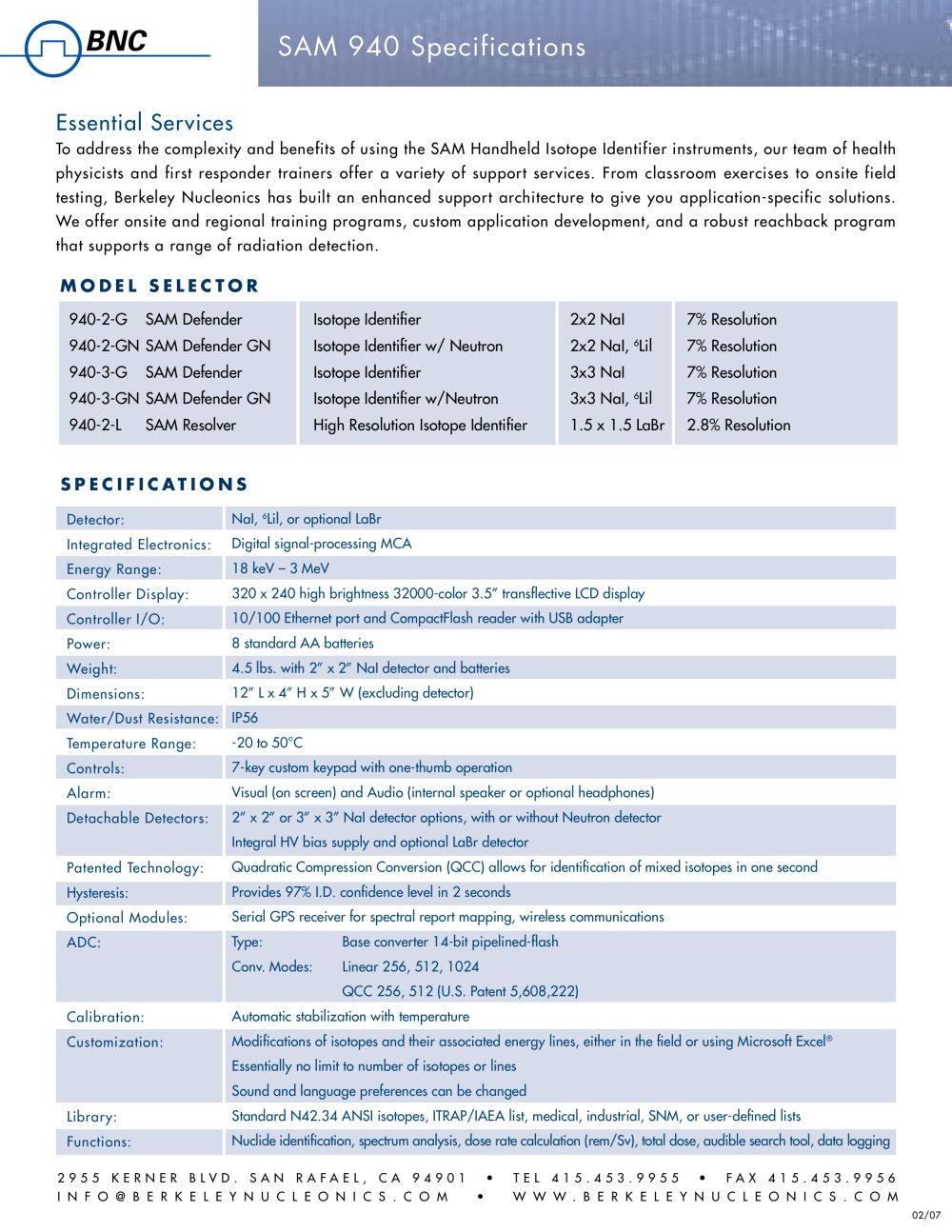

SAM 940 Specifications
2 9 5 5 K erner B lvd . S an R afael , C A 9 4 9 0 1 • T el 4 1 5 . 4 5 3 . 9 9 5 5 • f A X 4 1 5 . 4 5 3 . 9 9 5 6
info @ berkele y nucleonics . com • www . berkele y nucleonics . com
MOD E L S E L E C TOR
940-2-G SAM Defender Isotope Identifier 2x2 NaI 7% Resolution
940-2-GN SAM Defender GN Isotope Identifier w/ Neutron 2x2 NaI, 6Lil 7% Resolution
940-3-G SAM Defender Isotope Identifier 3x3 NaI 7% Resolution
940-3-GN SAM Defender GN Isotope Identifier w/Neutron 3x3 NaI, 6Lil 7% Resolution
940-2-L SAM Resolver High Resolution Isotope Identifier 1.5 x 1.5 LaBr 2.8% Resolution
Detector:
Integrated Electronics:
Energy Range:
Controller Display:
Controller I/O:
Power:
Weight:
Dimensions:
Water/Dust Resistance:
Temperature Range:
Controls:
Alarm:
Detachable Detectors:
Patented Technology:
Hysteresis:
Optional Modules:
ADC:
Calibration:
Customization:
Library:
Functions:
NaI, 6Lil, or optional LaBr
Digital signal-processing MCA
18 keV – 3 MeV
320 x 240 high brightness 32000-color 3.5” transflective LCD display
10/100 Ethernet port and CompactFlash reader with USB adapter
8 standard AA batteries
4.5 lbs. with 2” x 2” NaI detector and batteries
12” L x 4” H x 5” W (excluding detector)
IP56
-20 to 50°C
7-key custom keypad with one-thumb operation
Visual (on screen) and Audio (internal speaker or optional headphones)
2” x 2” or 3” x 3” NaI detector options, with or without Neutron detector
Integral HV bias supply and optional LaBr detector
Quadratic Compression Conversion (QCC) allows for identification of mixed isotopes in one second
Provides 97% I.D. confidence level in 2 seconds
Serial GPS receiver for spectral report mapping, wireless communications
Type: Base converter 14-bit pipelined-flash
Conv. Modes: Linear 256, 512, 1024
QCC 256, 512 (U.S. Patent 5,608,222)
Automatic stabilization with temperature
Modifications of isotopes and their associated energy lines, either in the field or using Microsoft Excel®
Essentially no limit to number of isotopes or lines
Sound and language preferences can be changed
Standard N42.34 ANSI isotopes, ITRAP/IAEA list, medical, industrial, SNM, or user-defined lists
Nuclide identification, spectrum analysis, dose rate calculation (rem/Sv), total dose, audible search tool, data logging
S P E C I F I C AT IONS
02/07
Essential Services
To address the complexity and benefits of using the SAM Handheld Isotope Identifier instruments, our team of health
physicists and first responder trainers offer a variety of support services. From classroom exercises to onsite field
testing, Berkeley Nucleonics has built an enhanced support architecture to give you application-specific solutions.
We offer onsite and regional training programs, custom application development, and a robust reachback program
that supports a range of radiation detection.
