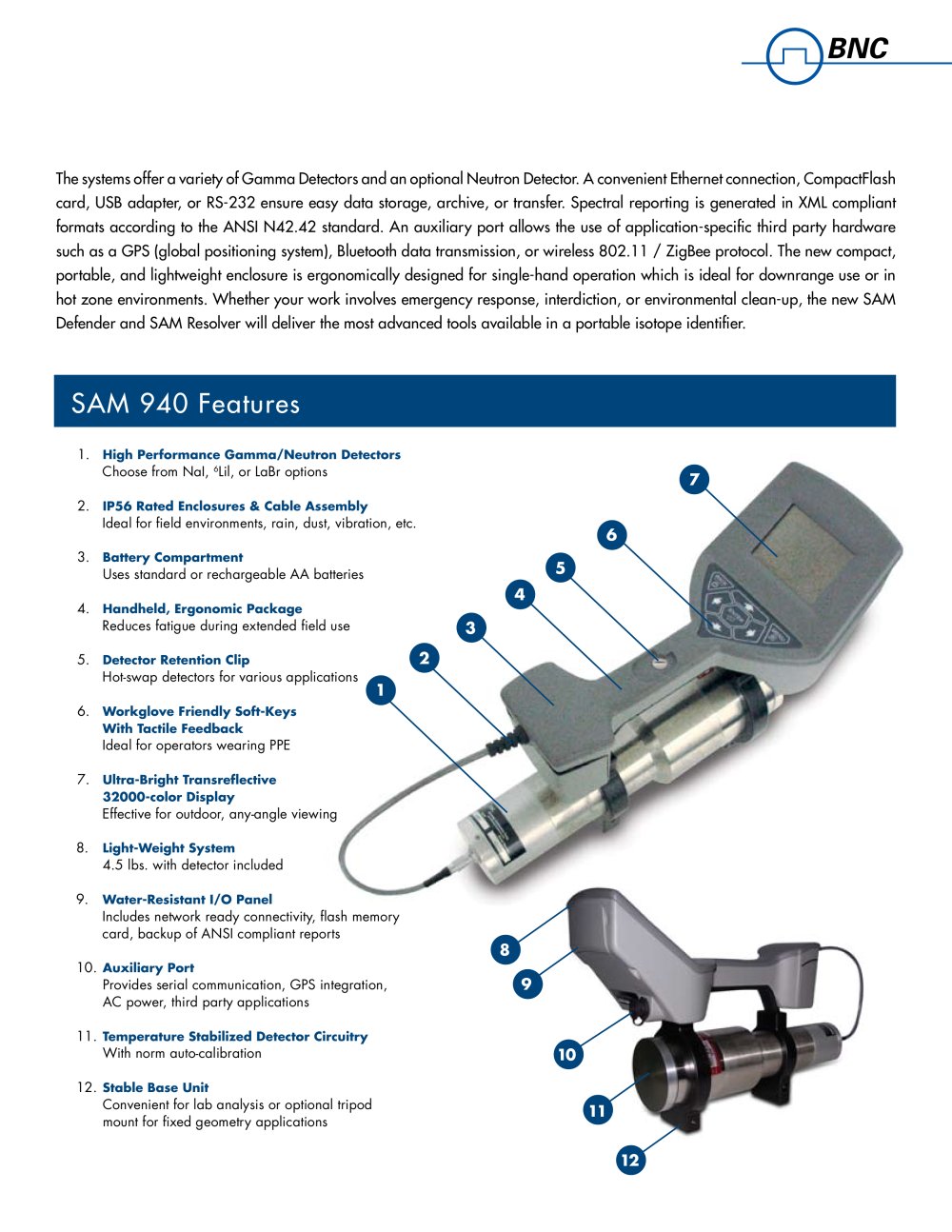

1. High Performance Gamma/Neutron Detectors
Choose from NaI, 6Lil, or LaBr options
2. IP56 Rated Enclosures & Cable Assembly
Ideal for field environments, rain, dust, vibration, etc.
3. Battery Compartment
Uses standard or rechargeable AA batteries
4. Handheld, Ergonomic Package
Reduces fatigue during extended field use
5. Detector Retention Clip
Hot-swap detectors for various applications
6. Workglove Friendly Soft-Keys
With Tactile Feedback
Ideal for operators wearing PPE
7. Ultra-Bright Transreflective
32000-color Display
Effective for outdoor, any-angle viewing
8. Light-Weight System
4.5 lbs. with detector included
9. Water-Resistant I/O Panel
Includes network ready connectivity, flash memory
card, backup of ANSI compliant reports
10. Auxiliary Port
Provides serial communication, GPS integration,
AC power, third party applications
11. Temperature Stabilized Detector Circuitry
With norm auto-calibration
12. Stable Base Unit
Convenient for lab analysis or optional tripod
mount for fixed geometry applications
The systems offer a variety of Gamma Detectors and an optional Neutron Detector. A convenient Ethernet connection, CompactFlash
card, USB adapter, or RS-232 ensure easy data storage, archive, or transfer. Spectral reporting is generated in XML compliant
formats according to the ANSI N42.42 standard. An auxiliary port allows the use of application-specific third party hardware
such as a GPS (global positioning system), Bluetooth data transmission, or wireless 802.11 / ZigBee protocol. The new compact,
portable, and lightweight enclosure is ergonomically designed for single-hand operation which is ideal for downrange use or in
hot zone environments. Whether your work involves emergency response, interdiction, or environmental clean-up, the new SAM
Defender and SAM Resolver will deliver the most advanced tools available in a portable isotope identifier.
SAM 940 Features
