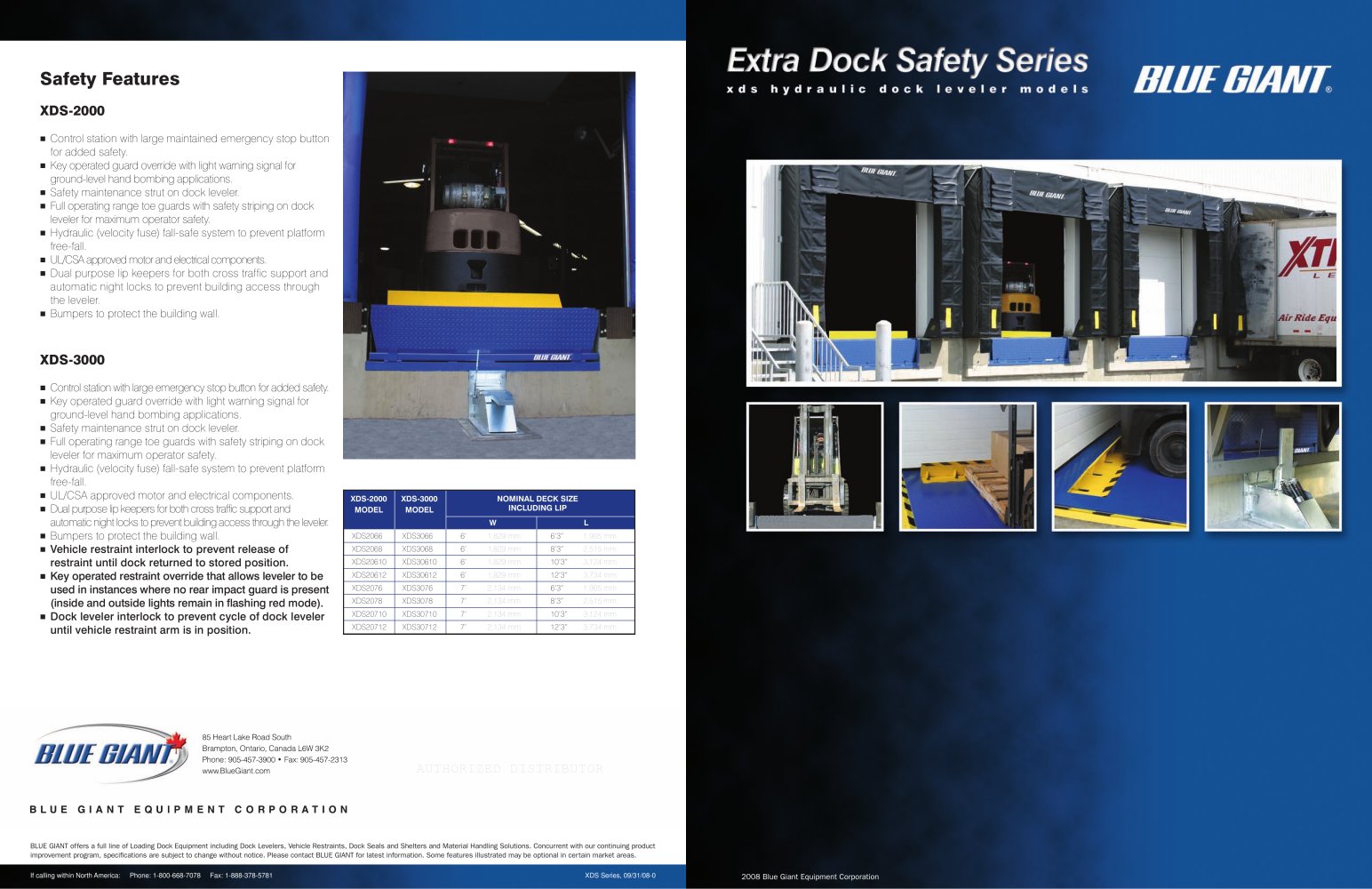

Safety Features

XDS-2000

â–

Control station with large maintained emergency stop buttonfor added safety.

â–

Key operated guard override with light warning signal for ground-level hand bombing applications.

â–

Safety maintenance strut on dock leveler.

â–

Full operating range toe guards with safety striping on dock leveler for maximum operator safety.

â–

Hydraulic (velocity fuse) fall-safe system to prevent platform free-fall.

â–

UL/CSA approved motor and electrical components.

â–

Dual purpose lip keepers for both cross traffic support and automatic night locks to prevent building access through the leveler.

â–

Bumpers to protect the building wall.

XDS-3000

â–

Control station with large emergency stop button for added safety.

â–

Key operated guard override with light warning signal for ground-level hand bombing applications.

â–

Safety maintenance strut on dock leveler.

â–

Full operating range toe guards with safety striping on dock leveler for maximum operator safety.

â–

Hydraulic (velocity fuse) fall-safe system to prevent platform free-fall.

â–

UL/CSA approved motor and electrical components.

XDS-2000XDS-3000NOMINAL DECK SIZE
â–

Dual purpose lip keepers for both cross traffic support and automatic night locks to prevent building access through the leveler.

MODELMODELINCLUDING LIPWL
â–

Bumpers to protect the building wall.

XDS2066XDS30666’ 1,829 mm 6’3” 1,905 mm
â–

Vehicle restraint interlock to prevent release of restraint until dock returned to stored position.

XDS2068XDS30686’ 1,829 mm 8’3” 2,515 mm XDS20610XDS306106’ 1,829 mm 10’3” 3,124 mm
â–

Key operated restraint override that allows leveler to be used in instances where no rear impact guard is present (inside and outside lights remain in flashing red mode).

XDS20612XDS306126’ 1,829 mm 12’3” 3,734 mm XDS2076XDS30767’ 2,134 mm 6’3” 1,905 mm XDS2078XDS30787’ 2,134 mm 8’3” 2,515 mm
â–

Dock leveler interlock to prevent cycle of dock leveler until vehicle restraint arm is in position.

XDS20710XDS307107’ 2,134 mm 10’3” 3,124 mm XDS20712XDS307127’ 2,134 mm 12’3” 3,734 mm

AUTHORIZED DISTRIBUTOR

BLUE GIANT offers a full line of Loading Dock Equipment including Dock Levelers, Vehicle Restraints, Dock Seals and Shelters and Material Handling Solutions. Concurrent with our continuing productimprovement program, specifications are subject to change without notice. Please contact BLUE GIANT for latest information. Some features illustrated may be optional in certain market areas. XDS Series, 09/31/08-0If calling within North America: Phone: 1-800-668-7078Fax: 1-888-378-5781 2008 Blue Giant Equipment Corporation
