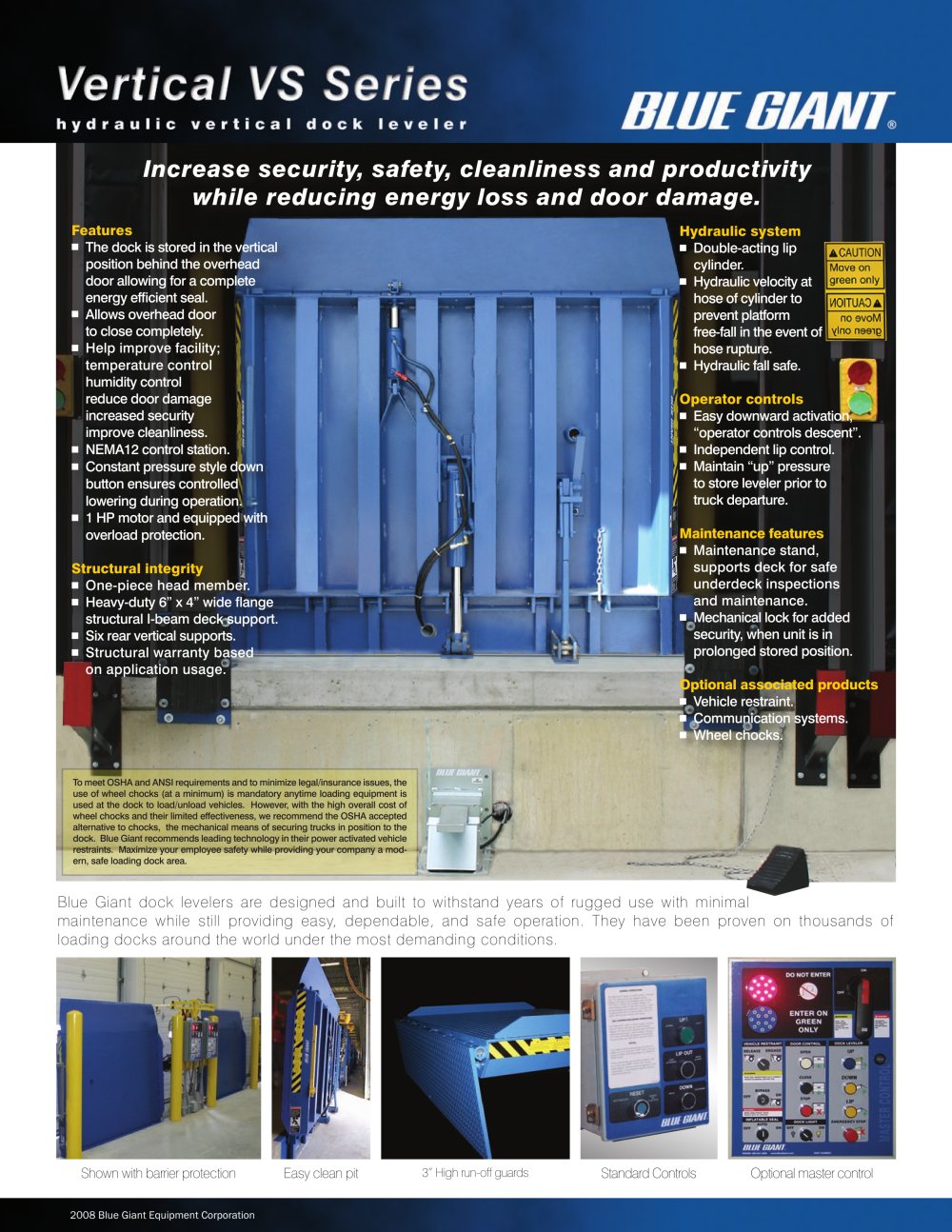

Increase security, safety, cleanliness and productivity while reducing energy loss and door damage.

Features Hydraulic system
N The dock is stored in the vertical position behind the overhead door allowing for a complete energy efficient seal.
N Double-acting lip cylinder.
N Hydraulic velocity at hose of cylinder to prevent platform free-fall in the event of hose rupture.
N Allows overhead door to close completely.
N Help improve facility;temperature controlhumidity control reduce door damageincreased security improve cleanliness.
N Hydraulic fall safe. Operator controls
N Easy downward activation, “operator controls descent”.
N NEMA12 control station.
N Independent lip control.
N Constant pressure style down button ensures controlled lowering during operation.
N Maintain “up” pressure to store leveler prior to truck departure. Maintenance features
N 1 HP motor and equipped with overload protection.
N Maintenance stand, supports deck for safe underdeck inspections and maintenance. Structural integrity
N One-piece head member.
N Heavy-duty 6” x 4” wide flange structural I-beam deck support.
N Mechanical lock for added security, when unit is in prolonged stored position.
N Six rear vertical supports.
N Structural warranty based on application usage. Optional associated products
N Vehicle restraint.
N Communication systems.
N Wheel chocks.
To meet OSHA and ANSI requirements and to minimize legal/insurance issues, the use of wheel chocks (at a minimum) is mandatory anytime loading equipment is used at the dock to load/unload vehicles. However, with the high overall cost of wheel chocks and their limited effectiveness, we recommend the OSHA accepted alternative to chocks, the mechanical means of securing trucks in position to the dock. Blue Giant recommends leading technology in their power activated vehicle restraints. Maximize your employee safety while providing your company a mod- ern, safe loading dock area.

Blue Giant dock levelers are designed and built to withstand years of rugged use with minimal maintenance while still providing easy, dependable, and safe operation. They have been proven on thousands of loading docks around the world under the most demanding conditions.

Shown with barrier protection Easy clean pit
3” High run-off guards Standard Controls Optional master control
2008 Blue Giant Equipment Corporation
