8/05

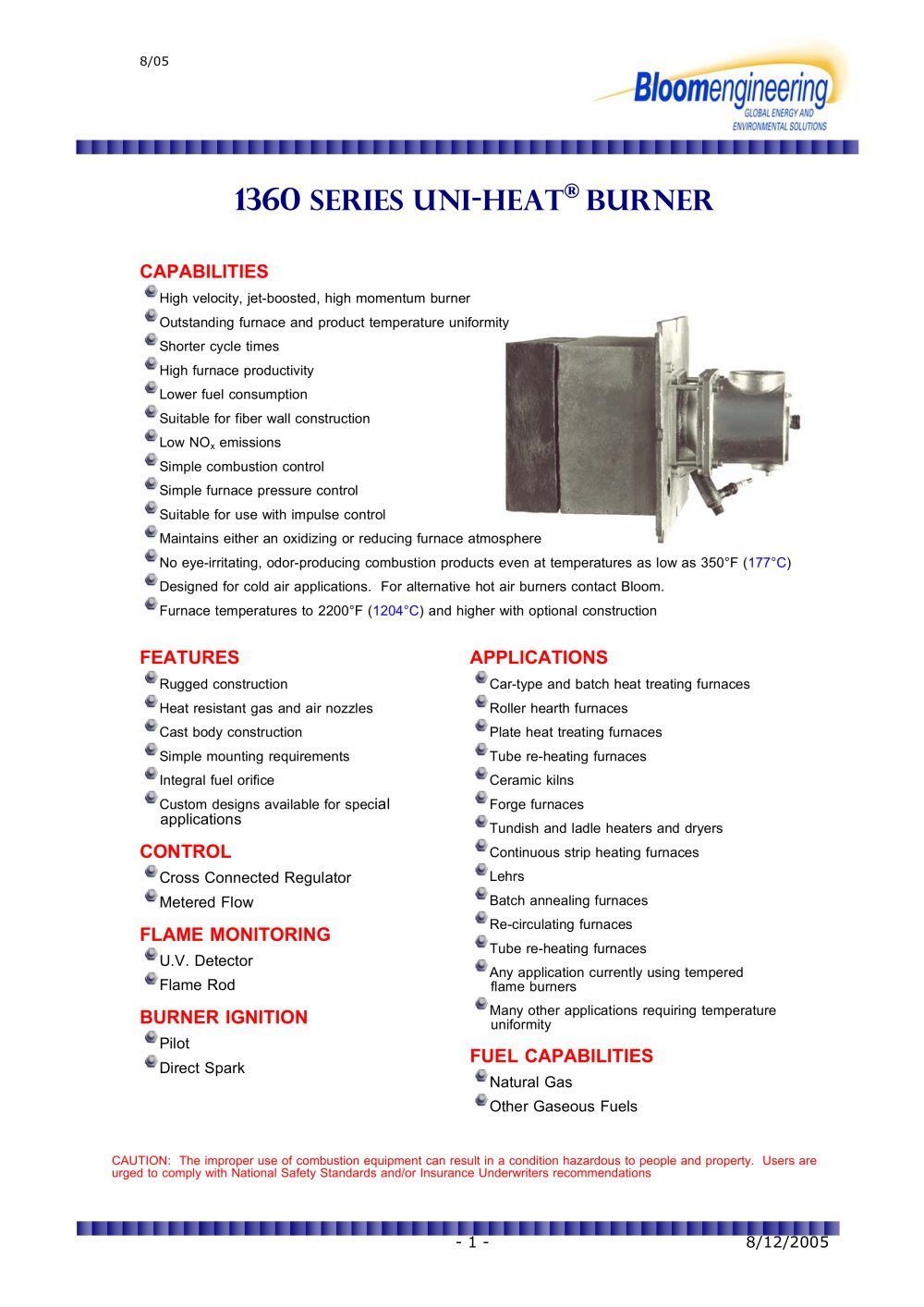

Small Capacity Low NOx Baffle Burner Series Small Capacity Hot Air Low NOx Direct Fired Baffle Burners with Air Staging Series 1360 - 21975 1360
SERIES UNI
-
HEAT
®
BURNER
CAPABILITIES
High velocity, jet-boosted, high momentum
burner Outstanding furnace and product temperature uniformity Shorter cycle times High furnace productivity Lower fuel consumption Suitable for fiber wall construction Low NO
x emissions Simple combustion control Simple furnace pressure control Suitable for use with impulse control Maintains either an oxidizing or reducing furnace atmosphere No eye-irritating, odor-producing combustion products even at temperatures as low as 350°F (177°C) Designed for cold air applications. For alternative hot air
burners contact Bloom. Furnace temperatures to 2200°F (1204°C) and higher with optional construction
FEATURESAPPLICATIONS
Rugged construction Car-type and batch heat treating furnaces Heat resistant gas and air nozzles Roller hearth furnaces Cast body construction Plate heat treating furnaces Simple mounting requirements Tube re-heating furnaces Integral fuel orifice Ceramic kilns Custom designs available for spec
ial applications
Forge furnaces Tundish and ladle heaters and dryers
CONTROL
Continuous strip heating furnaces
Cross Connected Regulator
Lehrs
Metered Flow
Batch annealing furnaces
FLAME MONITORING
Re-circulating furnaces Tube re-heating furnaces
U.V. Detector
Any application currently using tempered flame
burners Flame Rod
BURNER IGNITION
Many other applications requiring temperature uniformity
Pilot Direct Spark
FUEL CAPABILITIES
Natural Gas Other Gaseous Fuels
CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations
- 1 - 8/12/2005
