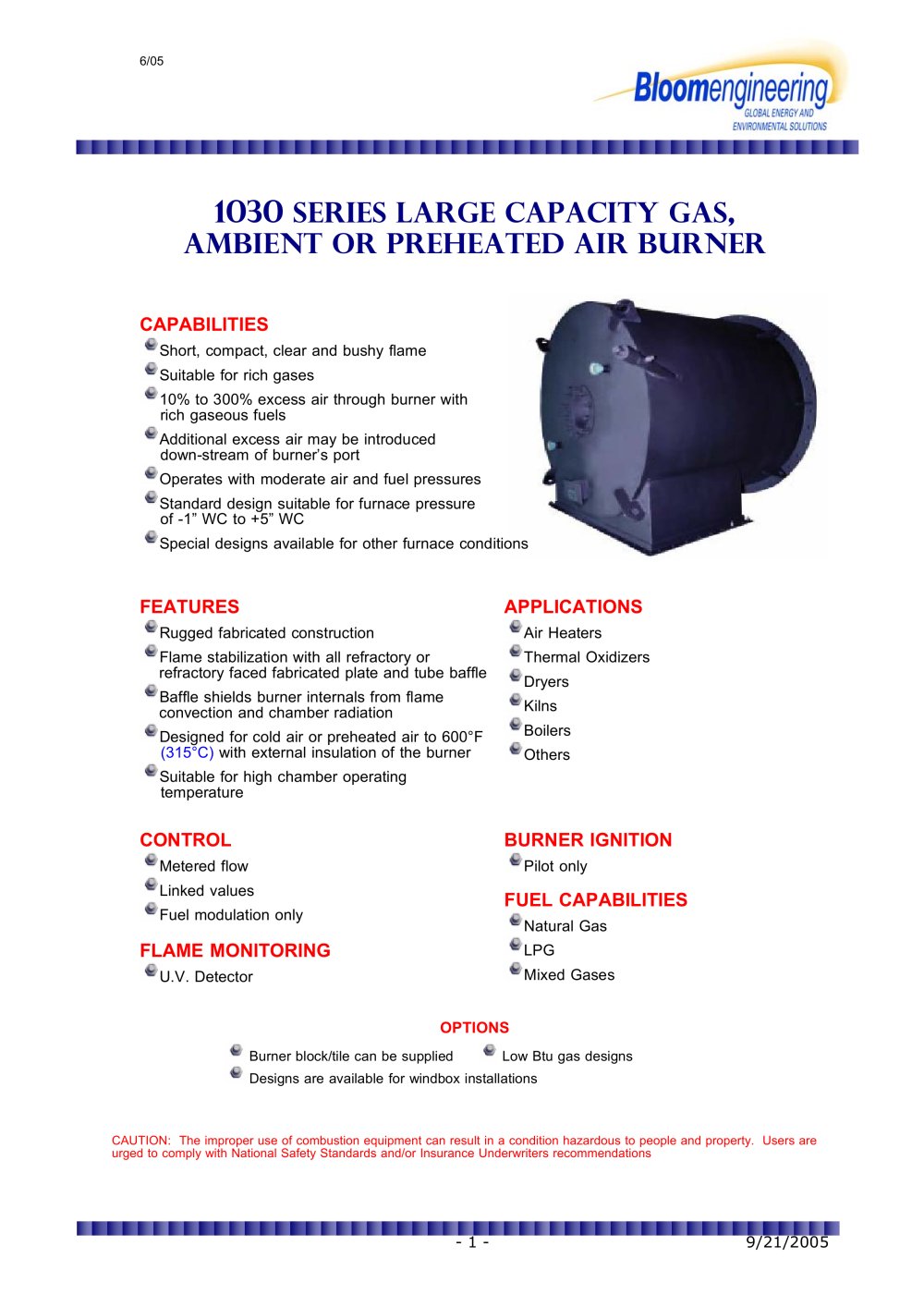

Short, compact, clear and bushy flame Suitable for rich gases 10% to 300% excess air through burner with rich gaseous fuels Additional excess air may be introduced down-stream of burners port Operates with moderate air and fuel pressures Standard design suitable for furnace pressure of -1Ҕ WC to +5 WC Special designs available for other furnace conditions > Rugged fabricated construction Air Heaters Flame stabilization with all refractory or refractory faced fabricated plate and tube baffle Thermal Oxidizers Dryers Baffle shields burner internals from flame convection and chamber radiation Kilns Designed for cold air or preheated air to 600԰F(315C) with external insulation of the burner Boilers Others Suitable for high chamber operating temperature > Metered flow Pilot only Linked values Fuel modulation only > LPG U.V. Detector Mixed Gases OPTIONS > Burner block/tile can be su pp lied Low Btu g as desi g ns Desi g ns are available for windbox installations CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations 6/05 - 1 - 9/21/2005 >

NOTE : > GENERAL DIMENSION INFORMATION . > SEE BLOOM REPRESENTATIVE FOR CERTIFIED DIMENSIONS FOR CONSTRUCTION . CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations 6/05 >

NOTE : > GENERAL DIMENSION INFORMATION . > SEE BLOOM REPRESENTATIVE FOR CERTIFIED DIMENSIONS FOR CONSTRUCTION . CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations 6/05 >
