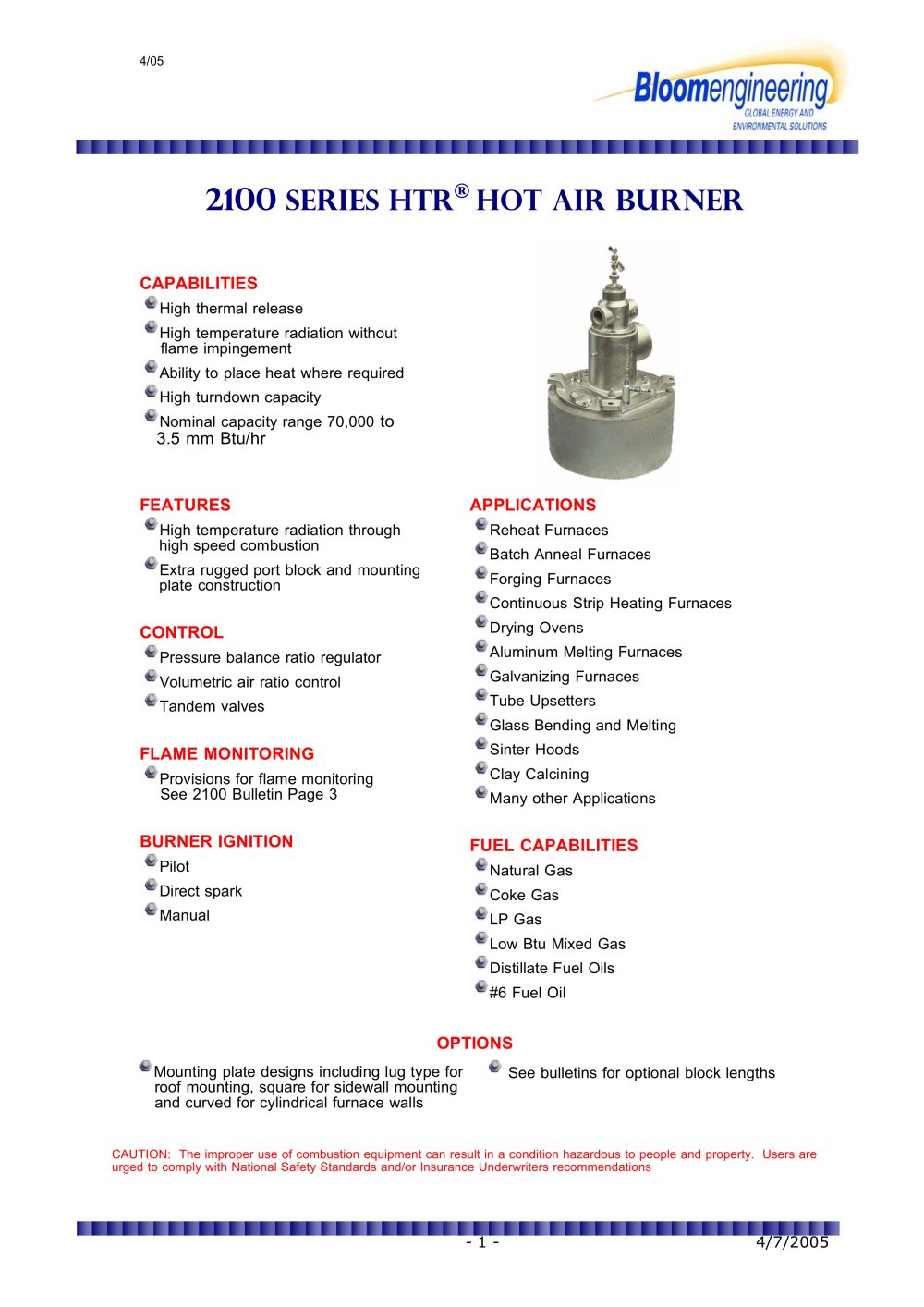

SERIES HTR

®

HOT AIR BURNER

CAPABILITIES

High thermal release High temperature radiation without flame impingement Ability to place heat where required High turndown capacity Nominal capacity range 70,000

to 3.5 mm Btu/hr FEATURESAPPLICATIONS

High temperature radiation through high speed combustion Reheat Furnaces Batch Anneal Furnaces Extra rugged port block and mounting plate construction Forging Furnaces Continuous Strip Heating Furnaces

CONTROL

Drying Ovens Pressure balance ratio regulator Aluminum Melting Furnaces Volumetric air ratio control Galvanizing Furnaces Tandem valves Tube Upsetters Glass Bending and Melting

FLAME MONITORING

Sinter Hoods Provisions for flame monitoring See 2100 Bulletin Page 3 Clay Calcining Many other Applications

BURNER IGNITION FUEL CAPABILITIES

Pilot Natural Gas Direct spark Coke Gas Manual LP Gas Low Btu Mixed Gas Distillate Fuel Oils #6 Fuel Oil

OPTIONS

Mounting plate designs including lug type for roof mounting, square forsidewall mounting See bulletins for optional block lengths and curved for cylindrical furnace walls
CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations 4/05 - 1 - 4/7/2005
