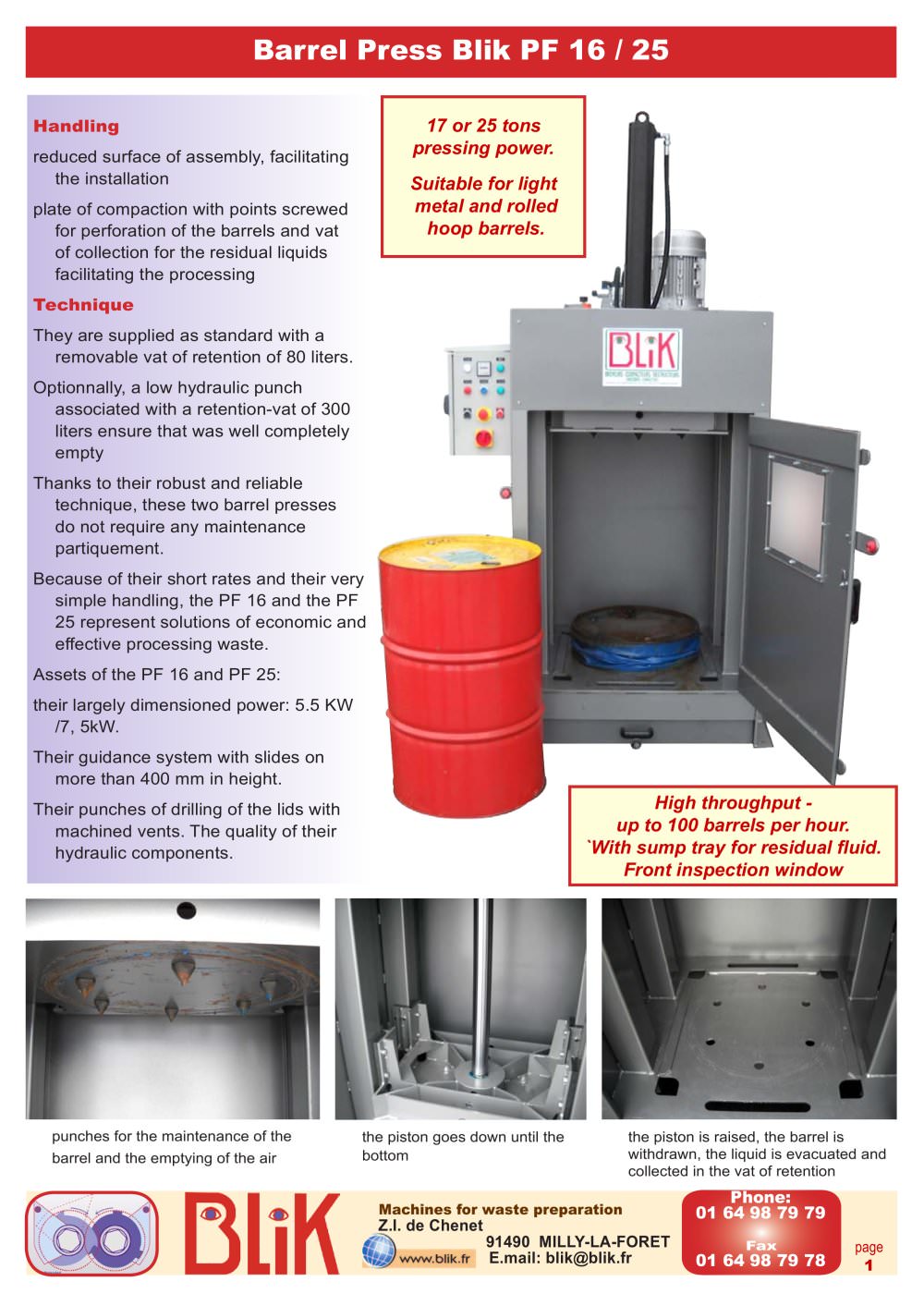

page 1 Phone: 01 64 98 79 79 Fax 01 64 98 79 78 Machines for waste preparation Z.I. de Chenet 91490 MILLY-LA-FORET E.mail: blik@blik.fr Handling reduced surface of assembly, facilitating the installation plate of compaction with points screwed for perforation of the barrels and vat of collection for the residual liquids facilitating the processing Technique They are supplied as standard with a removable vat of retention of 80 liters. Optionnally, a low hydraulic punch associated with a retention-vat of 300 liters ensure that was well completely empty Thanks to their robust and reliable technique, these two barrel presses do not require any maintenance partiquement. Because of their short rates and their very simple handling, the PF 16 and the PF 25 represent solutions of economic and effective processing waste. Assets of the PF 16 and PF 25: their largely dimensioned power: 5.5 KW /7, 5kW. Their guidance system with slides on more than 400 mm in height. Their punches of drilling of the lids with machined vents. The quality of their hydraulic components. Barrel Press Blik PF 16 / 25 High throughput - up to 100 barrels per hour. `With sump tray for residual fluid. Front inspection window 17 or 25 tons pressing power. Suitable for light metal and rolled hoop barrels. punches for the maintenance of the barrel and the emptying of the air the piston goes down until the bottom the piston is raised, the barrel is withdrawn, the liquid is evacuated and collected in the vat of retention
