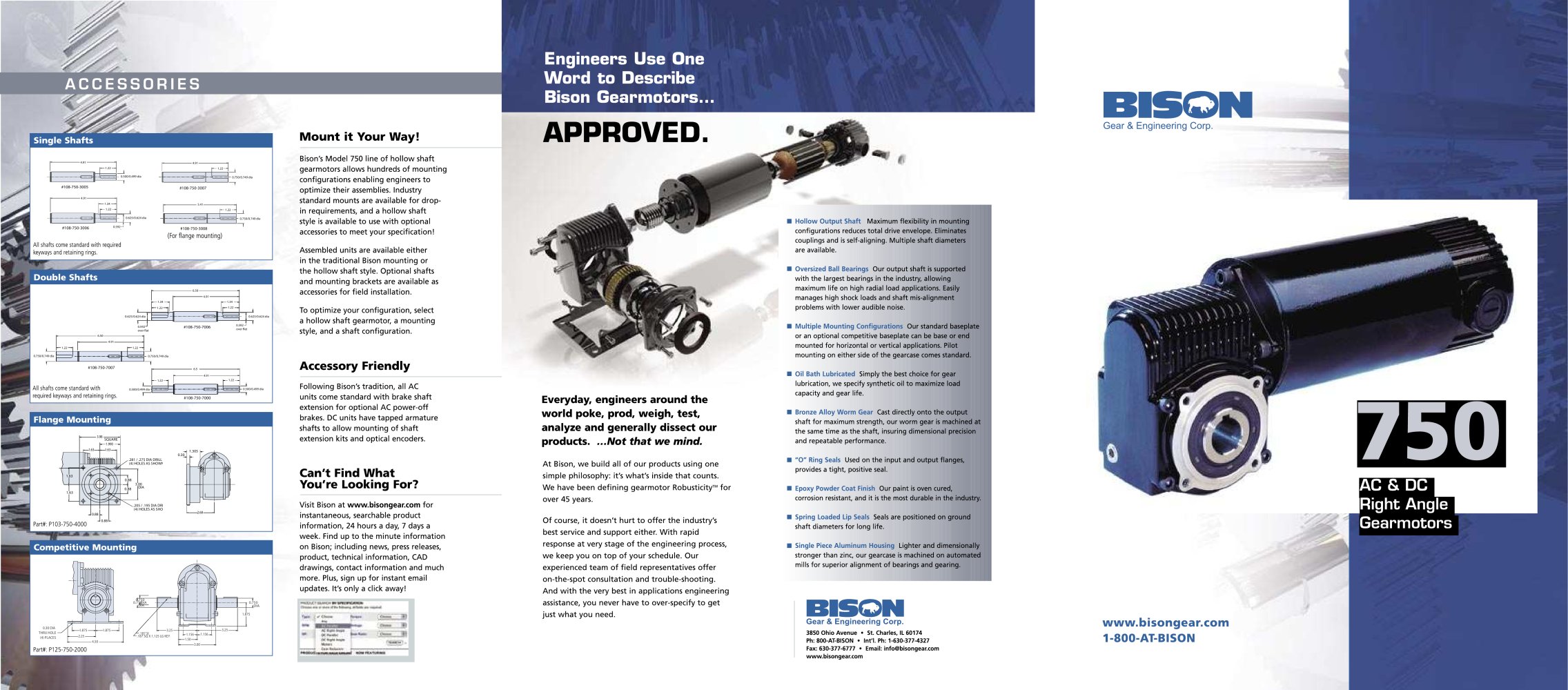

Mount it Your Way!

Single Shafts

Bison's Model 750 line of hollow shaft gearmotors allows hundreds of mounting configurations enabling engineers to optimize their assemblies. Industry standard mounts are available for drop-in requirements, and a hollow shaft style is available to use with optional accessories to meet your specification!

Assembled units are available either in the traditional Bison mounting or the hollow shaft style. Optional shafts and mounting brackets are available as accessories for field installation.

To optimize your configuration, select a hollow shaft gearmotor, a mounting style, and a shaft configuration.

0.500/0.499 dia

0.750/0.749 dia

#108-750-3005

#108-750-3007

1.34


p-^.4 1-	1.22 —	\
		0750/0749 dia

0.625/0.624 dia

#108-750-3006

#108-750-3008

(For flange mounting)

All shafts come standard with required keyways and retaining rings.

Double Shafts

H—1.34 —-I—1.22 —»

0.625/0.624 dia

1592-¹

#108-750-7006

6.50

0.750/0.749 dia

■ 0.750/0.749 dia

Accessory Friendly

#108-750-7007

4.91

.22

Following Bison's tradition, all AC units come standard with brake shaft extension for optional AC power-off brakes. DC units have tapped armature shafts to allow mounting of shaft extension kits and optical encoders.

All shafts come standard with required keyways and retaining rings.

■ 0.500/0.499 dia

0.500/0.499 dia

Everyday, engineers around the world poke, prod, weigh, test, analyze and generally dissect our products. ...Not that we mind.

At Bison, we build all of our products using one simple philosophy: it's what's inside that counts. We have been defining gearmotor Robusticity™ for over 45 years.

Of course, it doesn't hurt to offer the industry's best service and support either. With rapid response at very stage of the engineering process, we keep you on top of your schedule. Our experienced team of field representatives offer on-the-spot consultation and trouble-shooting. And with the very best in applications engineering assistance, you never have to over-specify to get just what you need.

#108-750-7000

Bronze Alloy Worm Gear Cast directly onto the output shaft for maximum strength, our worm gear is machined at the same time as the shaft, insuring dimensional precision and repeatable performance.

"O" Ring Seals Used on the input and output flanges, provides a tight, positive seal.

Epoxy Powder Coat Finish Our paint is oven cured, corrosion resistant, and it is the most durable in the industry.

Spring Loaded Lip Seals Seals are positioned on ground shaft diameters for long life.

Single Piece Aluminum Housing Lighter and dimensionally stronger than zinc, our gearcase is machined on automated mills for superior alignment of bearings and gearing.

Can't Find What You're Looking For?

Visit Bison at www.bisongear.com for instantaneous, searchable product information, 24 hours a day, 7 days a week. Find up to the minute information on Bison; including news, press releases, product, technical information, CAD drawings, contact information and much more. Plus, sign up for instant email updates. It's only a click away!

Competitive Mounting



			- P"t» •'- ^m ^__ _—-B
				"BE"


B	S	o	N
Gear & Engineering Corp.

0.750 _JDIA

1.875

0.30 DIA THRU HOLE -(4) PLACES

3.25

3.25 ■ (ÎX1.125 LG KEY

3850 Ohio Avenue • St. Charles, IL 60174 Ph: 800-AT-BISON • Int'l. Ph: 1-630-377-4327 Fax: 630-377-6777 • Email: info@bisongear.com www.bisongear.com

—1.50

3.00 ■

4.50

Part#: P125-750-2000
