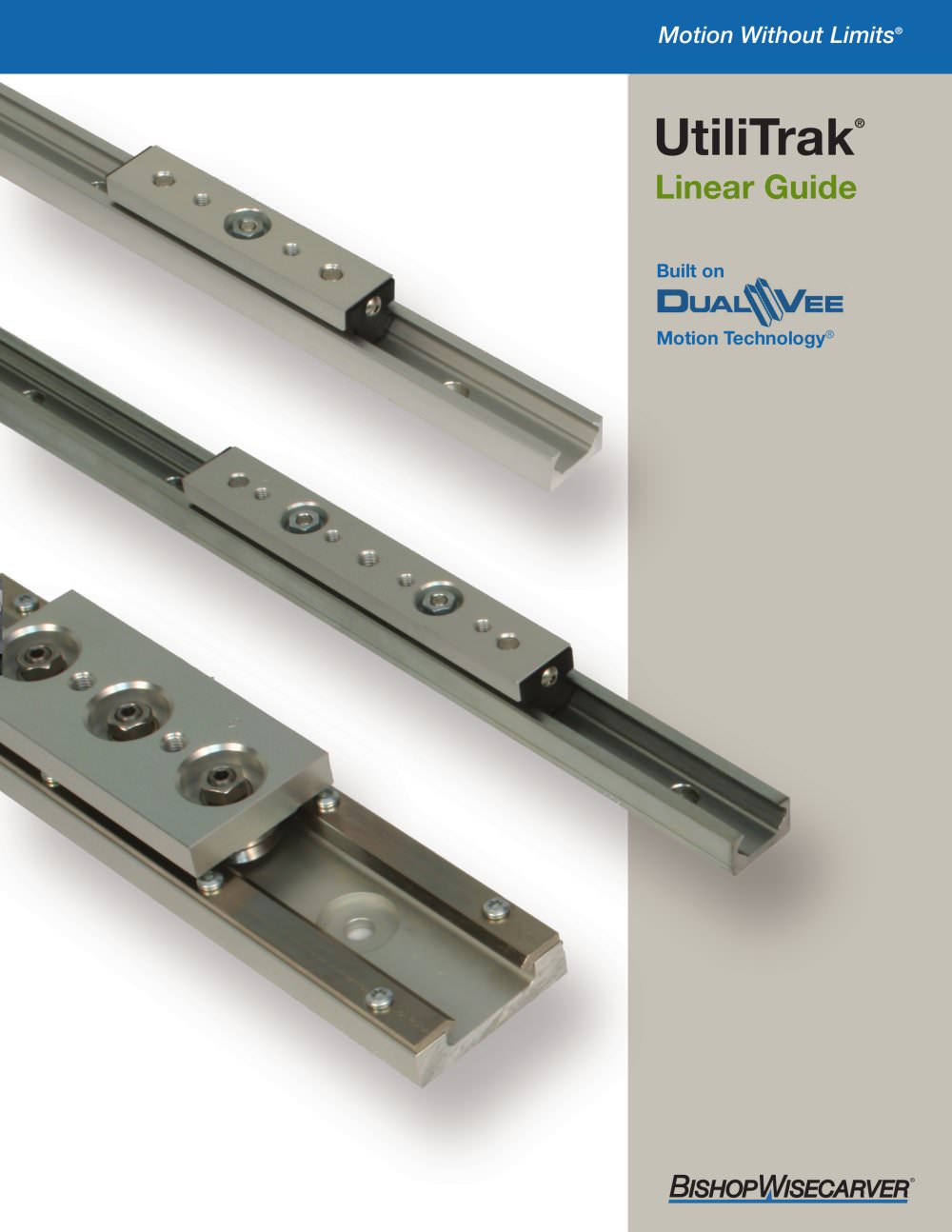

UtiliTrak® Linear Motion Guide - 1

Motion Without Limits TM UtiliTrak® Linear Guide Motion Without Limits® Built on Motion Technology®

Open the catalog to page 1
UtiliTrak® Linear Motion Guide - 2

Bishop-Wisecarver, manufacturer of the ORIGINAL DualVee® guide wheel, is recognized as the market leader for guide wheel technology. In 1967, Bud Wisecarver patented DualVee Motion Technology® (DMT). Three main components define DMT – the DualVee guide wheel, its mating Vee profile track with patented mounting shoulder, and support bushings. DMT is one of the most popular guided motion products due to its self-cleaning action and self-aligning track, which results in an overall lower installation cost. The PTDA Power Transmission Handbook recognizes DualVee Motion Technology as an industry...

Open the catalog to page 2
UtiliTrak® Linear Motion Guide - 4

2 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 Product Comparison and Overview Features SW Series UtiliTrak PW Series UtiliTrak CR Series Stainless Steel Composite UtiliTrak Channel/Channel Assembly One-piece ground carbon bearing steel channel, running surface smooth to Ra 0.8ìm, hardened steel raceways, RoHS compliant anti-corrosion plated. 6063-T6 aluminum alloy channel Induction heat treated 420 stainless steel DualVee track mounted to an extruded aluminum channel Studded DualVee Guide Wheels 52100 carbon steel, ground, double row, angular contact...

Open the catalog to page 4
UtiliTrak® Linear Motion Guide - 5

Motion Without Limits ® 3 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 Carriage Assembly Studded DualVee Guide Wheel Lubricator Assembly Channel SW: Induction Hardened Carbon Bearing Steel PW: Precision Extruded Aluminum MadeWell™ Crown Roller DualVee Wheel and Vee Channel Assembly MadeWell™ Crown Roller & Open Channel Assembly CR Series Stainless Steel Composite Assembly Stainless Steel DualVee Track Extruded Aluminum Channel

Open the catalog to page 5
UtiliTrak® Linear Motion Guide - 6

4 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 3-Wheel Assemblies and Channel PW/SW Series DualVee 3-Wheel Assembly PW Series ..Vee style assembly for PW Series aluminum channel ..Light to medium duty transport applications ..Extremely low noise ..Lightweight and economical SW Series ..Vee style assembly for SW Series steel channel ..Medium to heavy duty transport applications ..High speed capacity ..Smooth antifriction operation UtiliTrak Size PW p/n SW1 p/n A B C D E Socket Size F G 0 UT0WPAP - 79.9 18 22 7.9 8 22 M4x0.7 1 UT1WPAP UT1WPA 113.5 24...

Open the catalog to page 6
UtiliTrak® Linear Motion Guide - 7

Motion Without Limits ® 5 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 PW/SW Series Vee Channel PW Series ..Matched component for PW Series Vee carriage assemblies ..6063-T6 aluminum alloy channel ..Light weight SW Series ..Matched component for SW Series Vee carriage assemblies ..Carbon bearing steel with hardened steel raceways ..Running surface smooth to Ra 0.8ìm UtiliTrak Size PW p/n SW p/n H J K L Max3 M N Dia x Depth (Counterbore)4 O (Mounting Hole) Recommended Fastener5 P 0 UTTA0 - 11 4 20 3600 See formula below 8.3 x 3 4.8 M4 80 1 UTTA1 UTTS1...

Open the catalog to page 7
UtiliTrak® Linear Motion Guide - 8

6 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 PW/SW Series MadeWell Crown Roller 3-Wheel Assembly UtiliTrak Size PW p/n SW1 p/n A B C Min-Max D E Socket Size F G 0 UT0WPAPR - 79.9 18 22-23.1 7.9 8 22 M4x0.7 1 UT1WPAPR UT1WPAR 113.5 24 25.3-27.6 8.8 10 40 M6x1 2 UT2WPAPR UT2WPAR 144.2 38 34.7-37.4 11.8 13 45 M8x1.25 3 - UT3WPAR 201.3 55 46.9-53.4 15.8 15 60 M10x1.5 Dimensions UtiliTrak Size Radial FR Axial FA MP MY MR C Radial FR Axial FA MP MY MR C PW Series Carriage SW Series Carriage 0 55 0 0 1.5 0 130 - - - - - - 1 110 0 0 3 0 200 2440 0 0 30.5 0...

Open the catalog to page 8
UtiliTrak® Linear Motion Guide - 9

Motion Without Limits ® 7 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 PW/SW Series Open Channel PW Series ..Matched component for PW Series MadeWell crown roller carriage assemblies ..6063-T6 aluminum alloy channel ..Light weight SW Series ..Matched component for SW Series crown roller carriage assemblies ..Carbon bearing steel with hardened steel raceways ..Running surface smooth to Ra 0.8ìm UtiliTrak Size PW p/n SW p/n H J K L Max4 M N Dia x Depth (Counterbore)5 O (Mounting Hole) Recommended Fastener6 P 0 UTTRA0 - 11 4 20 3600 See formula below 8.3...

Open the catalog to page 9
UtiliTrak® Linear Motion Guide - 10

8 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 4 and 5-Wheel Assemblies SW Series DualVee 4 and 5-Wheel Assembly ..Vee style extended carriage for SW Series steel channel ..UtiliTrak’s highest load capacity ..Larger surface area UtiliTrak Size 4-Wheel1 p/n 5-Wheel1 p/n A B C D E Socket Size F G 1 UT1WPA-4A UT1WPA-5A 166.5 24 26.3 8.8 10 35 M6x1 2 UT2WPA-4A UT2WPA-5A 224.2 38 35 11.8 13 45 M8x1.25 3 UT3WPA-4A UT3WPA-5A 317.3 55 50 15.8 15 60 M10x1.5 Dimensions UtiliTrak Size Radial FR Axial FA MP MY MR C Radial FR Axial FA MP MY MR C 4-Wheel Carriage...

Open the catalog to page 10
UtiliTrak® Linear Motion Guide - 11

9 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 SW Series MadeWell Crown Roller 4 and 5-Wheel Assembly ..Crown roller style extended carriage for SW Series steel channel ..UtiliTrak’s highest load capacity ..Larger surface area UtiliTrak Size 4-Wheel1 p/n 5-Wheel1 p/n A B C (Min-Max) D E Socket Size F G 1 UT1WPAR-4A UT1WPAR-5A 166.5 24 25.3 - 27.6 8.8 10 35 M6x1 2 UT2WPAR-4A UT2WPAR-5A 224.2 38 34.7 - 37.4 11.8 13 45 M8x1.25 3 UT3WPAR-4A UT3WPAR-5A 317.3 55 46.9 - 53.4 15.8 15 60 M10x1.5 Dimensions UtiliTrak Size Radial FR Axial FA MP MY MR C Radial FR...

Open the catalog to page 11
UtiliTrak® Linear Motion Guide - 12

10 © Bishop-Wisecarver Corporation 2010. All rights reserved. www.bwc.com 888.580.8272 CR Series Stainless Steel Carriage and Channel Assemblies CR Series DualVee 3-Wheel Assembly ..Vee style carriage assembly for stainless steel composite (CR Series) channel ..440C stainless steel, corrosion resistant ..Available in 3-wheel assembly only UtiliTrak Size Part Number A B C D E Socket Size F G 1 UTCCA1-SS 100 38 28 10.1 7 40 M6x1 2 UTCCA2-SS 125 55 36 13.7 13 45 M8x1.25 3 UTCCA3-SS 170 80 50 19.6 17 60 M10x1.5 Dimensions UtiliTrak Size Radial FR Axial FA MP MY MR C 1 1111 705 14 21 3 1625 2...

Open the catalog to page 12
