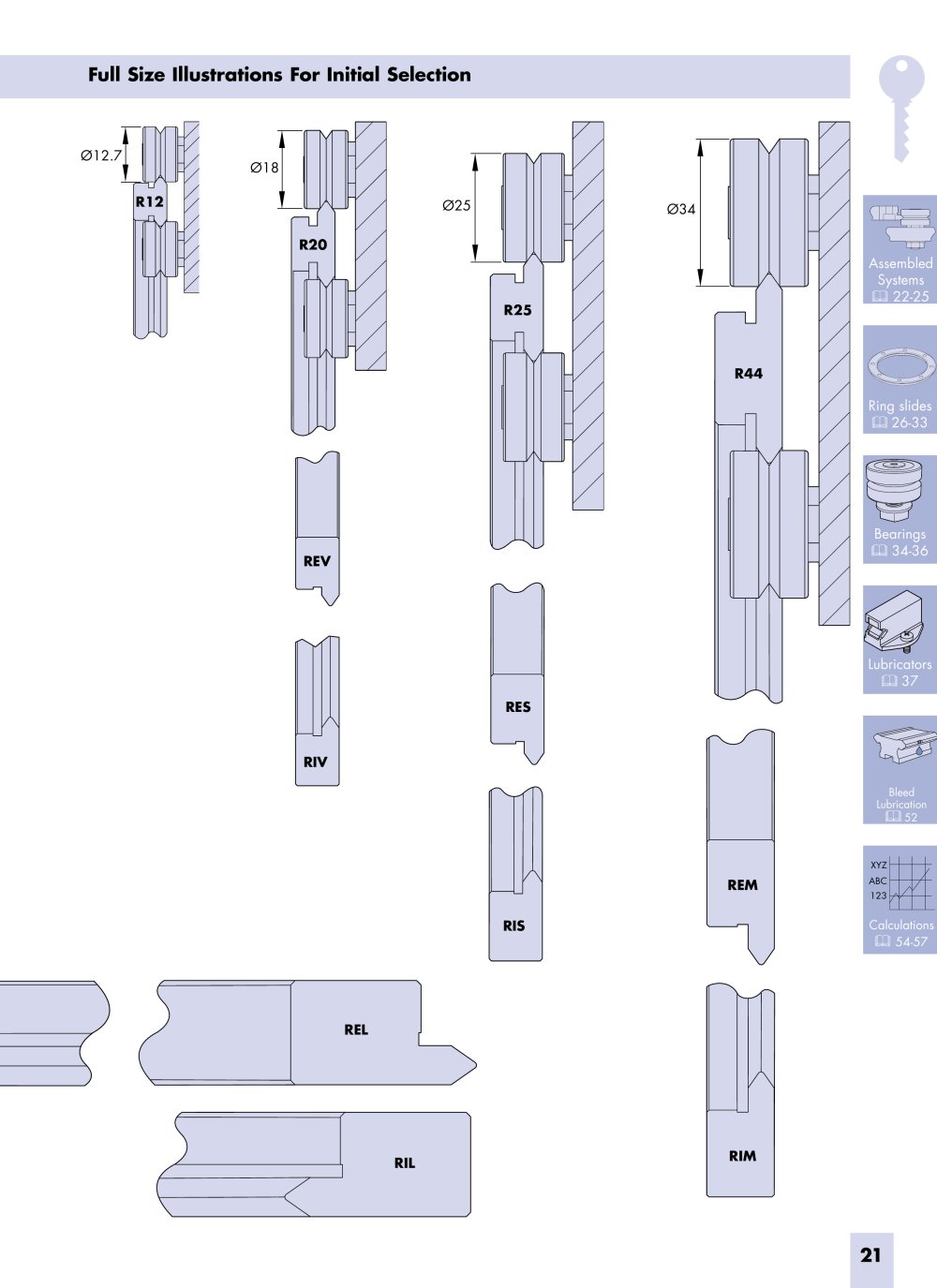

| | | All track system straight slides are ground square on the ends and marked with a reference number and sequence number for installation and replacement purposes (see pages 18 & 19). Opposing slides within a track system are ground to identical lengths. Adjustment keys are available to facilitate alignment with adjacent curved segments (see page 22). Dowel pins positioned at regular intervals along the industrial slide keyway provide a convenient means of location and alignment. Alternatively, the ground datum faces of the slide may be set against a machined register in the mounting surface (see note 4). | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | See Note 5 K | L | M0 | m6 | +0.0 -0.3 N | O0 | K6 | CL | Q | R | CO | T | U | Mass ~g/100mm | Part Number | | | | 6.2 | 0.2 | 4 | +0.012 +0.004 | - | 4 | +0.002 -0.006 | 6.75 | 2 | 16 | 4 | 3 | 1.5 | 44 | TNMS-12 | | | | 10 | 0.3 | 6 | +0.012 +0.004 | 2.25 | 4 | +0.002 -0.006 | 6 | 6 | 32 | 7 | 6 | 2.2 | 140 | TNS-25 | | | | 12.5 | 0.3 | 8 | +0.015 +0.006 | 2.75 | 6 | +0.002 -0.006 | 8 | 8 | 33 | 8 | 7 | 2.7 | 330 | TNM-44 | | | | 19.5 | 0.3 | 15 | +0.018 +0.007 | 4.75 | 10 | +0.002 -0.007 | 15 | 15 | 32 | 10 | 11 | 4.5 | 1000 | TNL-76 | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Ordering Details | | |
| | | |
| | | Example: | | |
| | | |
| | | 16 x Dowel pins required 1 x adjustment key required 2 x adjustment keys required Length of slide 'B' = 1500mm Part number | | |
| | | |
